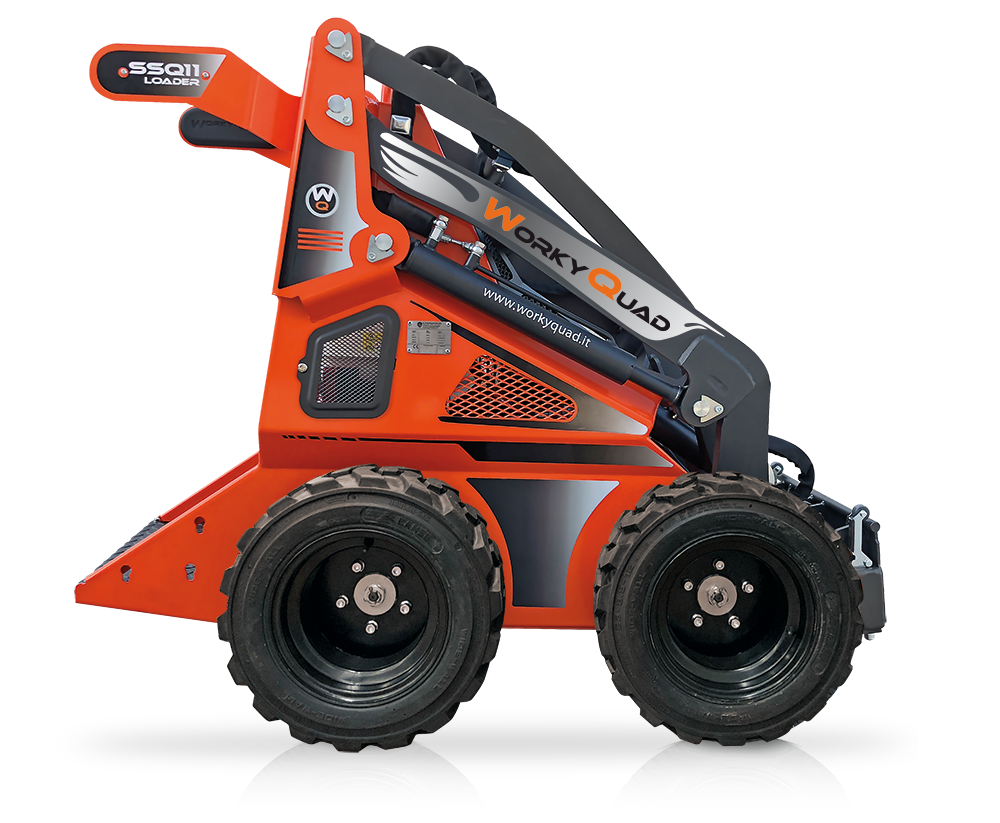

WorkyQuad SSQ11 Country

WorkyQuad SSQ11 Country mini Skidsteer

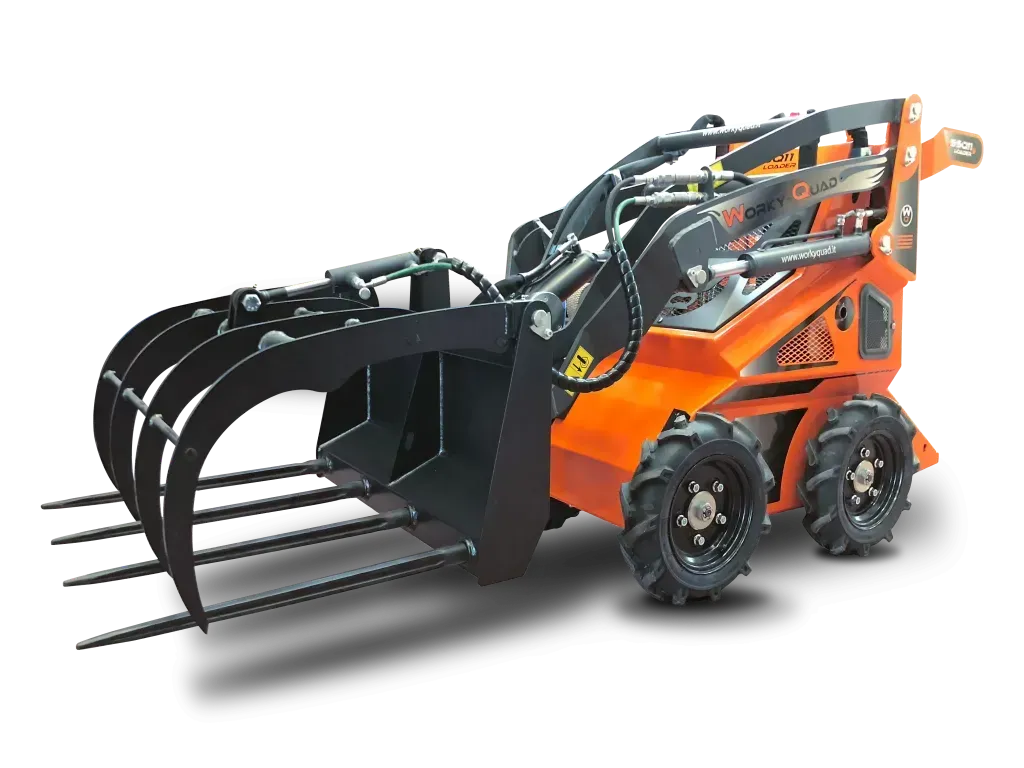

WorkyQuad SSQ11 Country Mini Skidsteer

LIFTING

280kG

WITH COUNTERWEIGHTS

ENGINE POWER

11,7HP

HONDA GX390

HYDRAULIC FLOW RATE

21,6L/min

HYDRAULIC PUMP

The WorkyQuad SSQ11 Country,is a low cost and versatile machine for the agricultural and livestock sectors. It is available with nearly 20 optional attachments

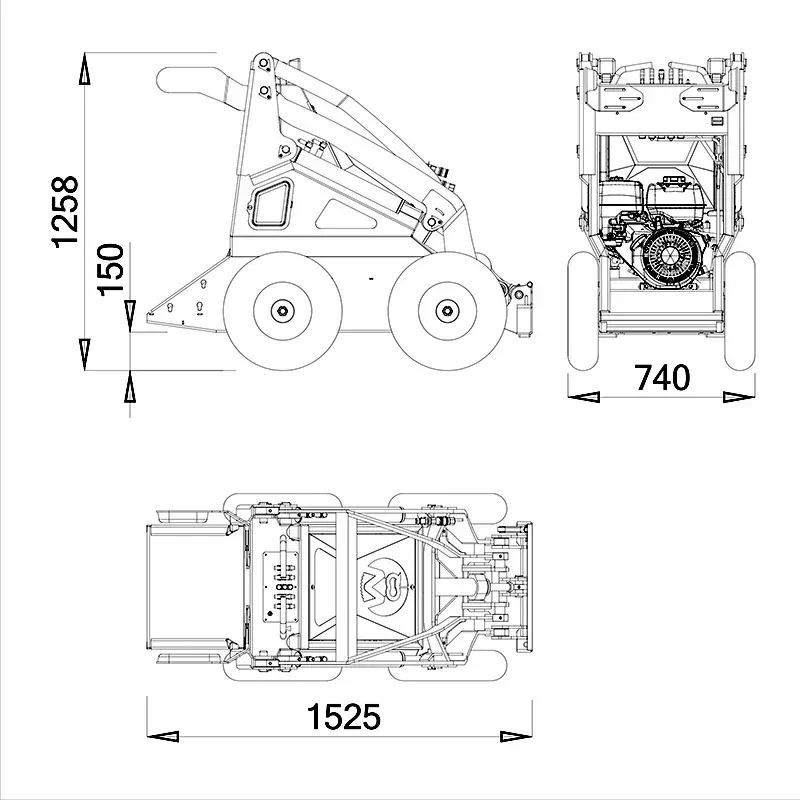

Dimensions

WorkyQuad SSQ11 Country dimensions
WorkyQuad SSQ11 Country Dimensions

Specifications

WORKYQUAD SSQ11 COUNTRY SPECIFICATIONS
Engine HONDA GX390
Power HP/Kw 11,7/8,7
Displacement cm3/ number of cylinders: 389/1
RPM 3600
Ignition Electric
Cooling system Air
Fuel Petrol (Euro95)
Drive System Hydraulic with 4WD
Hydraulic flow rate l/min 21,6
Speed 0-6 (proportional)
"Tractor" Tyres 4.00x8

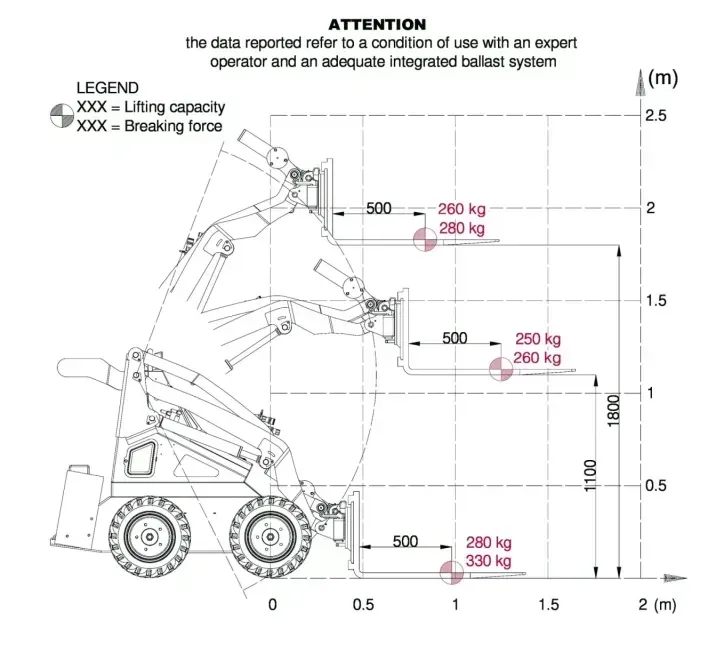

Lifting capacity Kg 280 (with counterweights)
Traction capacity Kg 420 (with counterweights)
Tear-off force Kg 300
Dimensions ( L mm x W mm x H mm) 1525 x 740 x 1258
Weight Kg (empty) 600

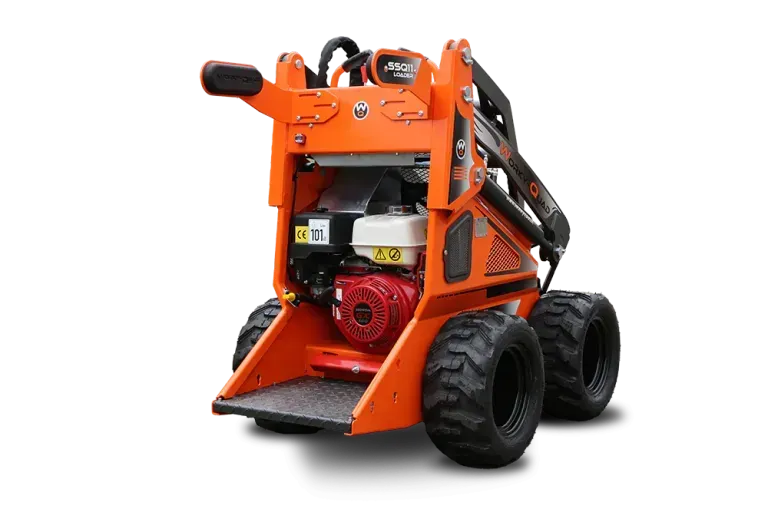

WorkyQuad SSQ11 Features

WorkyQuad SSQ 11 Country mini skidsteer features
WorkyQuad SSQ 11 Country mini skidsteer features
WorkyQuad SSQ 11 Country mini skidsteer features
WorkyQuad SSQ 11 Country mini skidsteer features

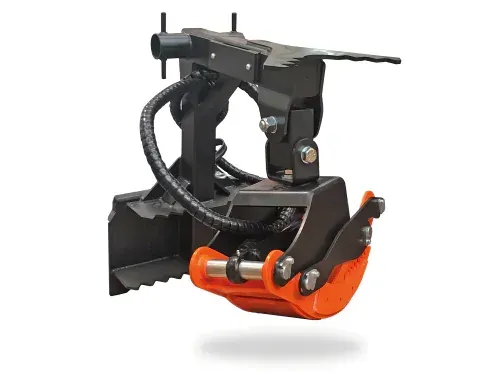

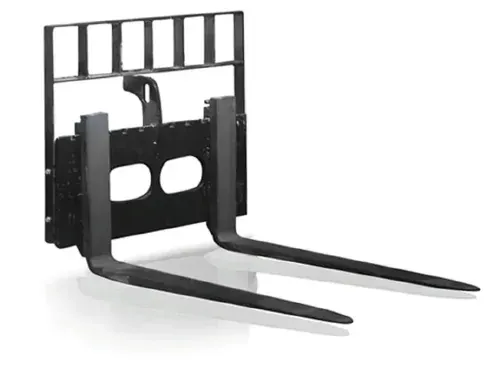

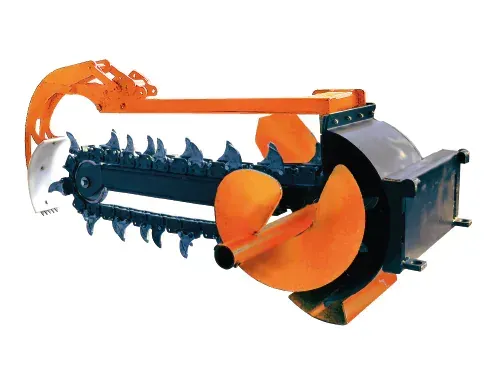

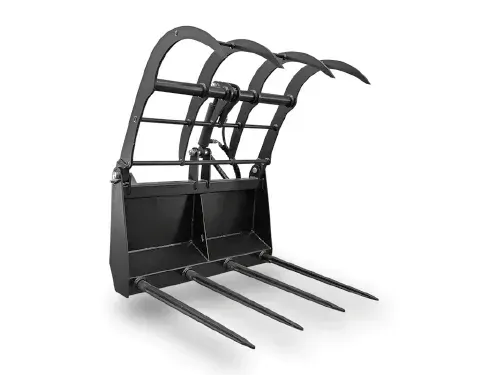

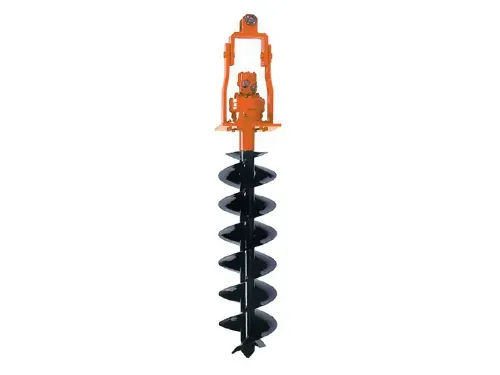

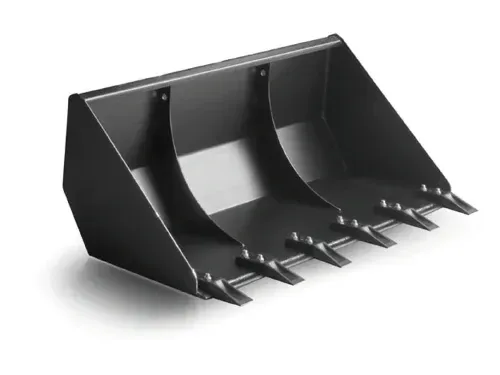

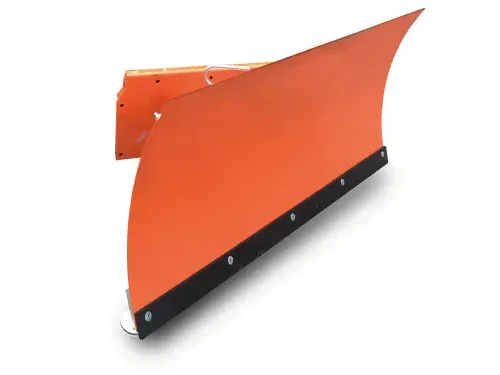

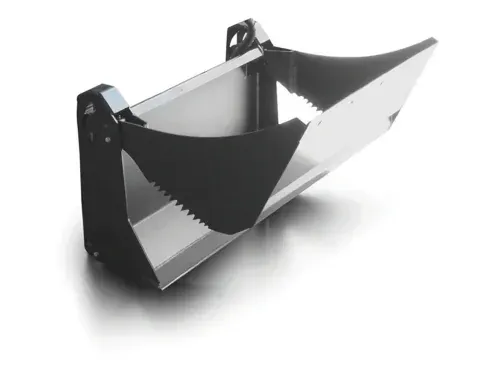

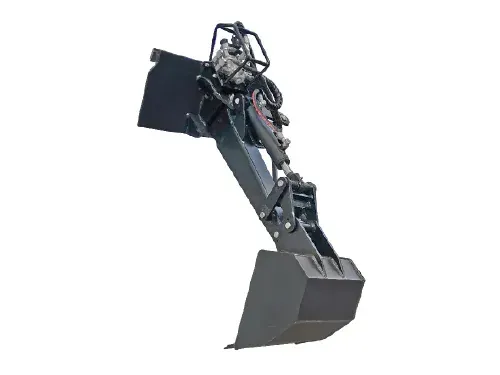

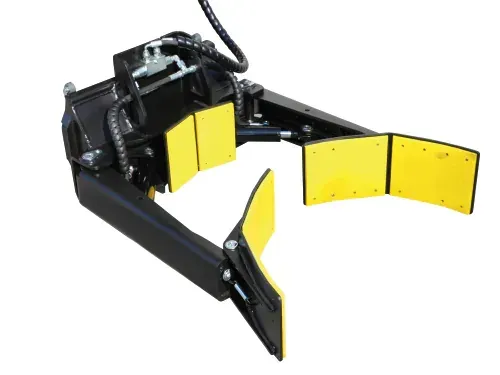

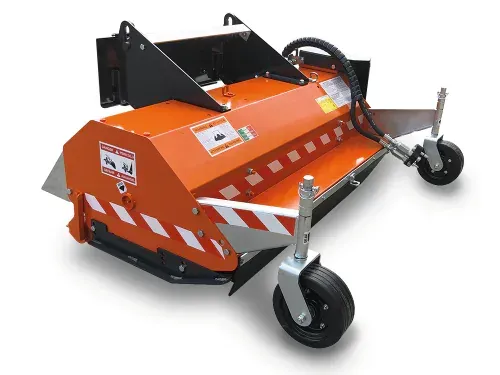

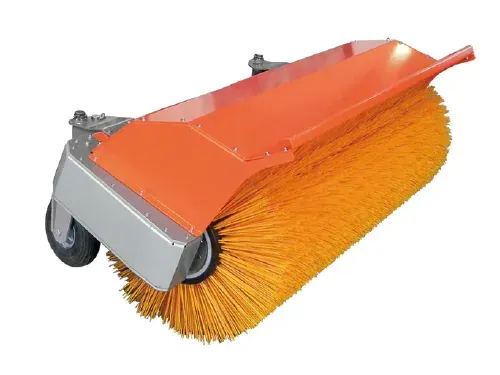

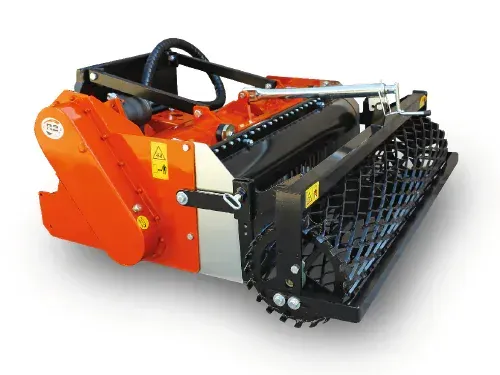

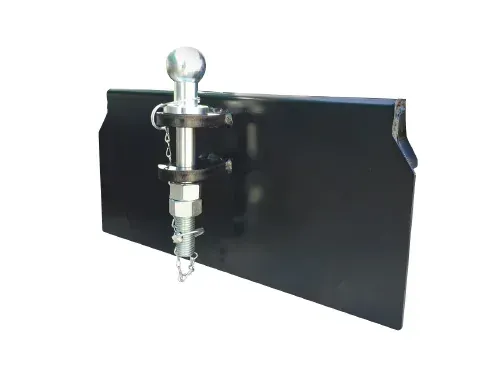

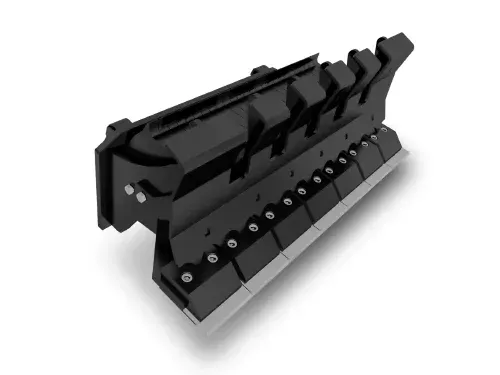

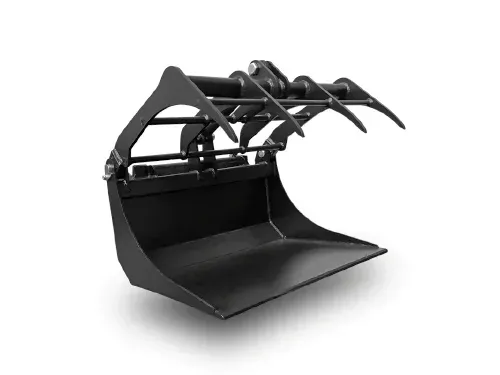

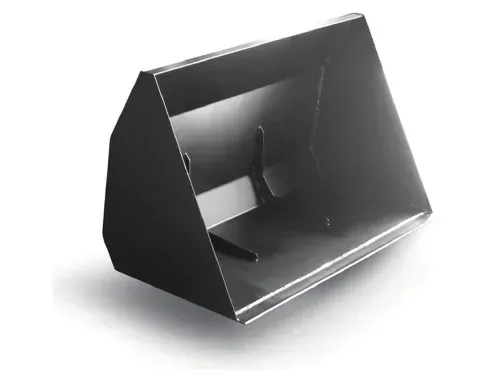

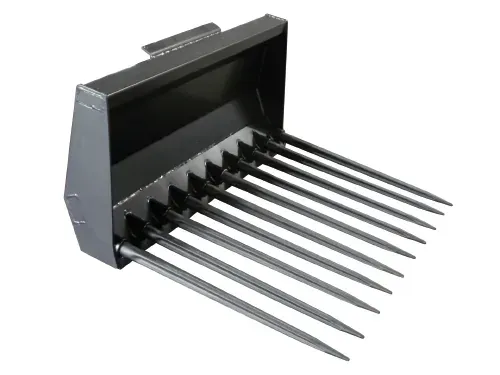

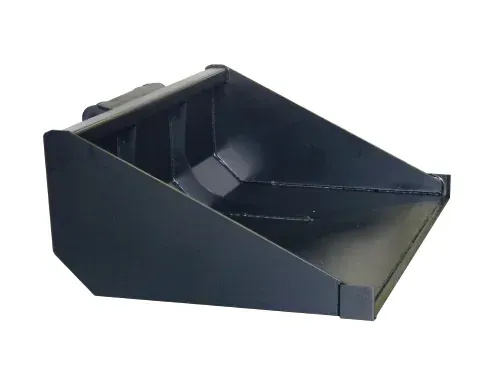

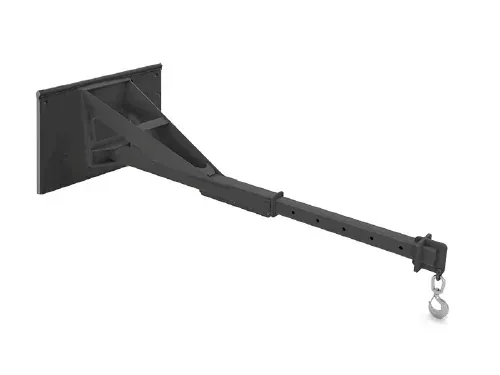

Available Attachments

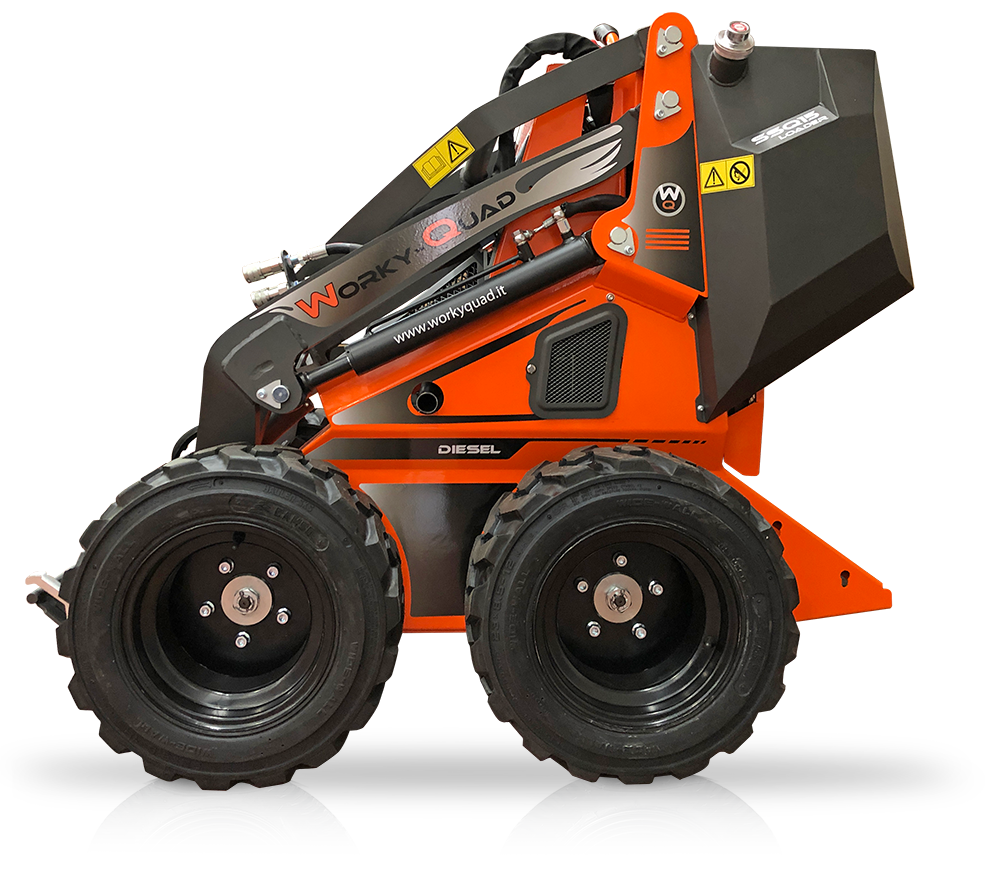

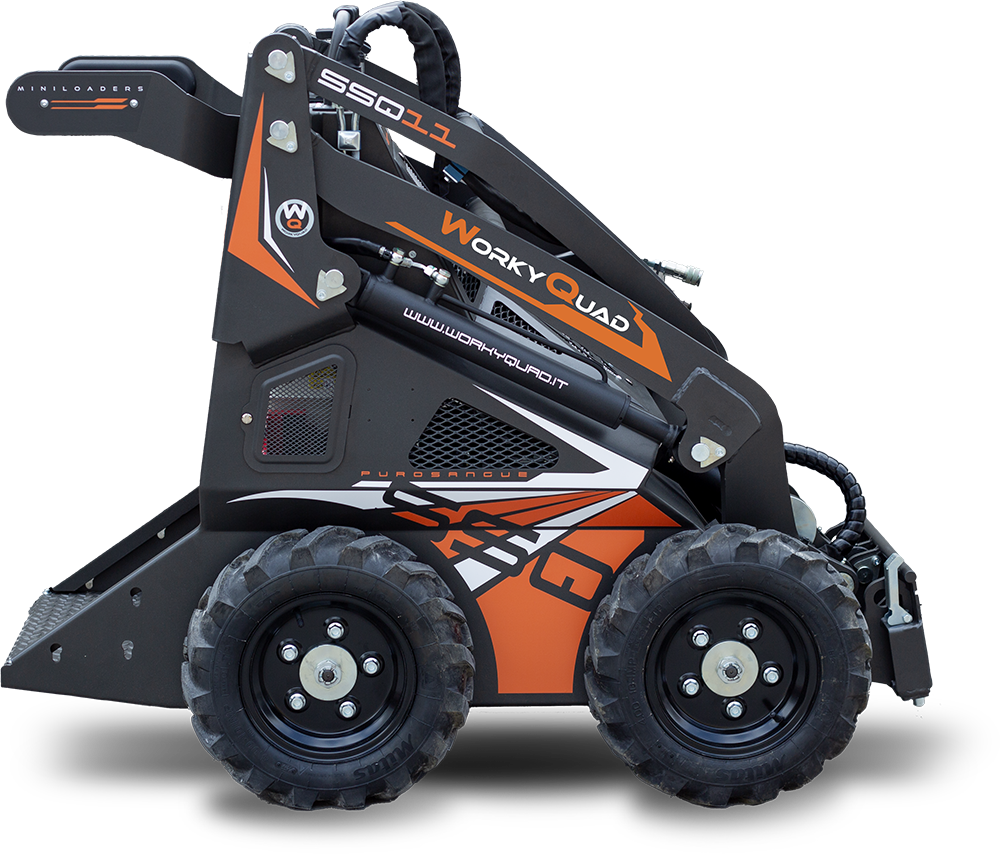

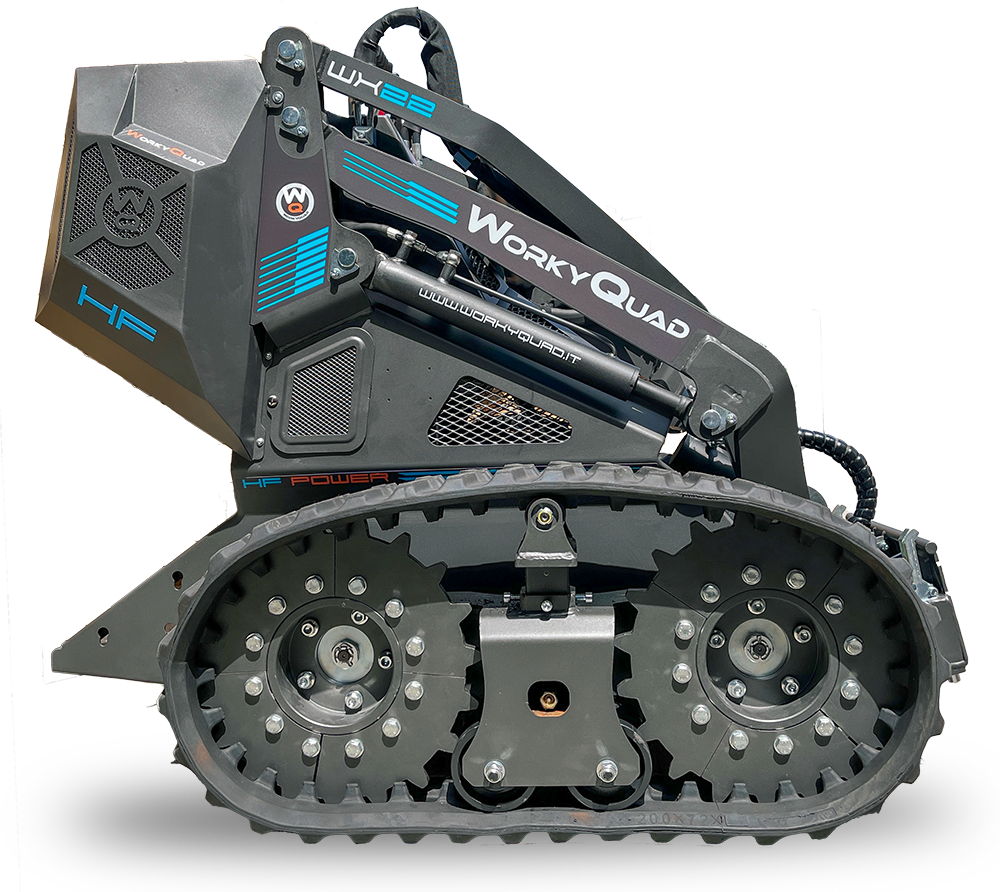

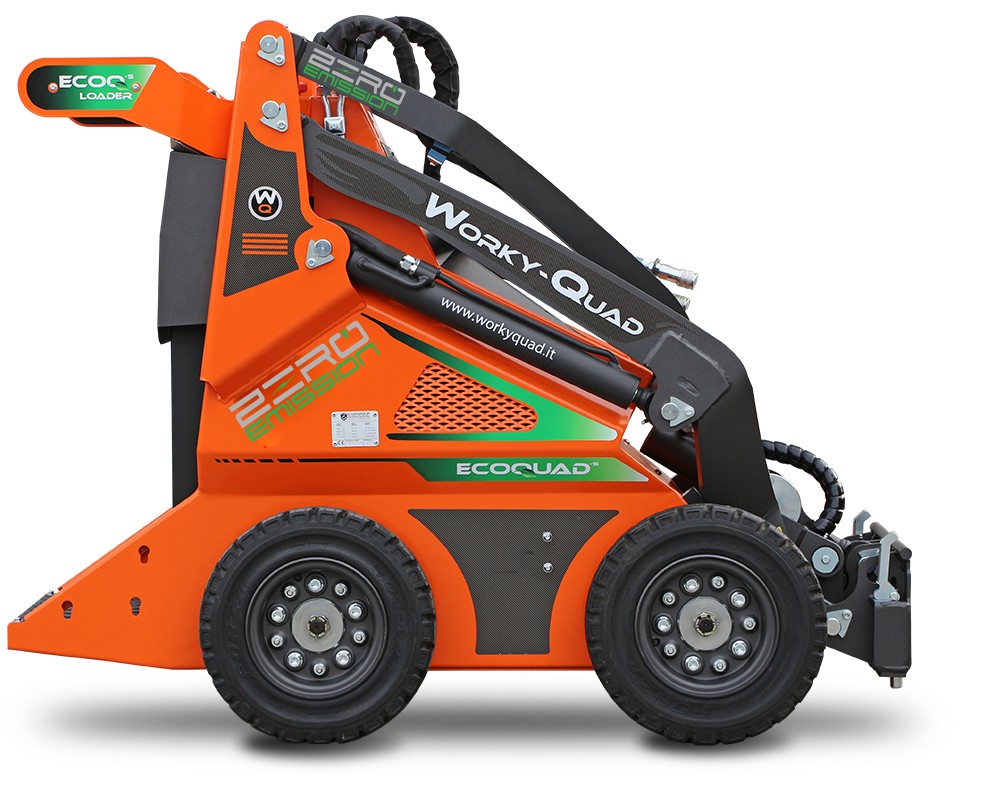

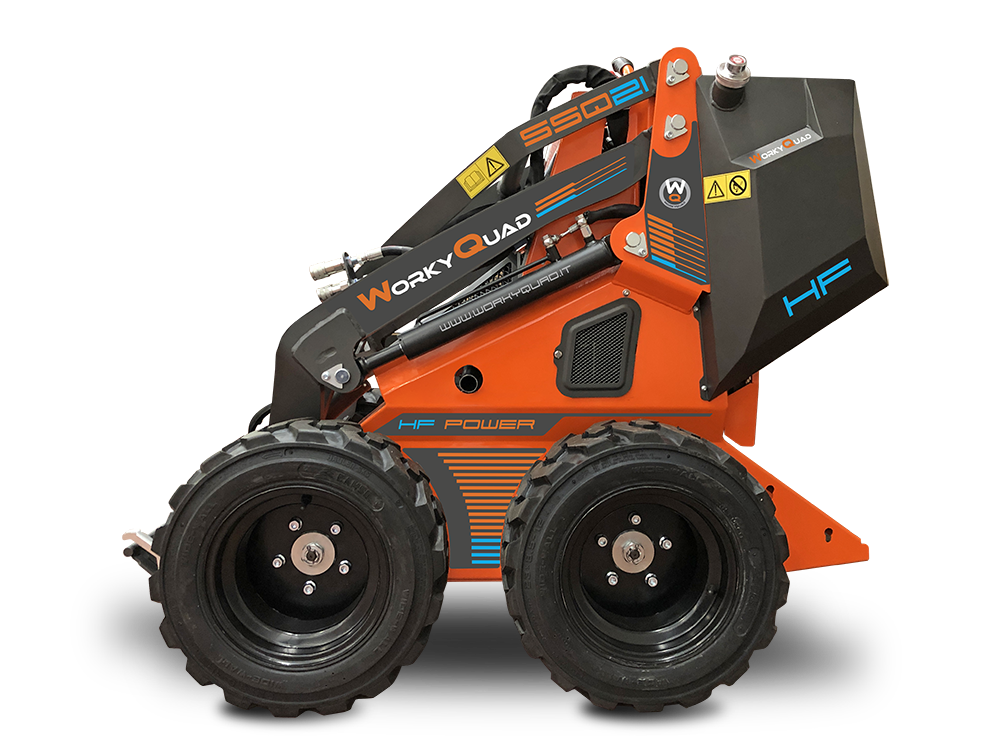

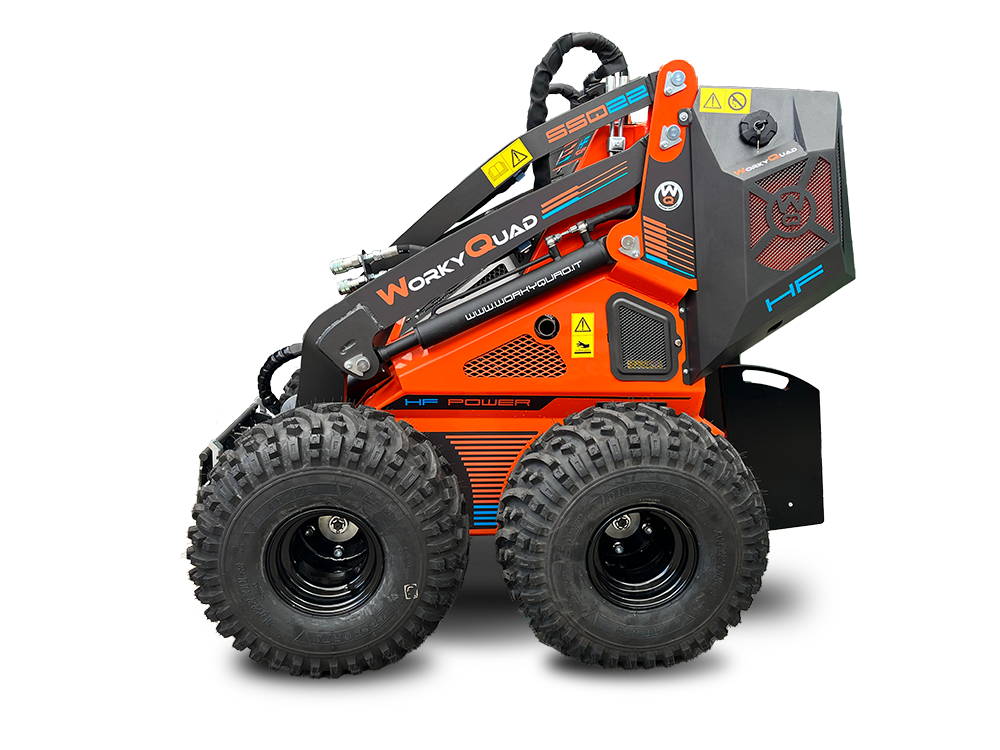

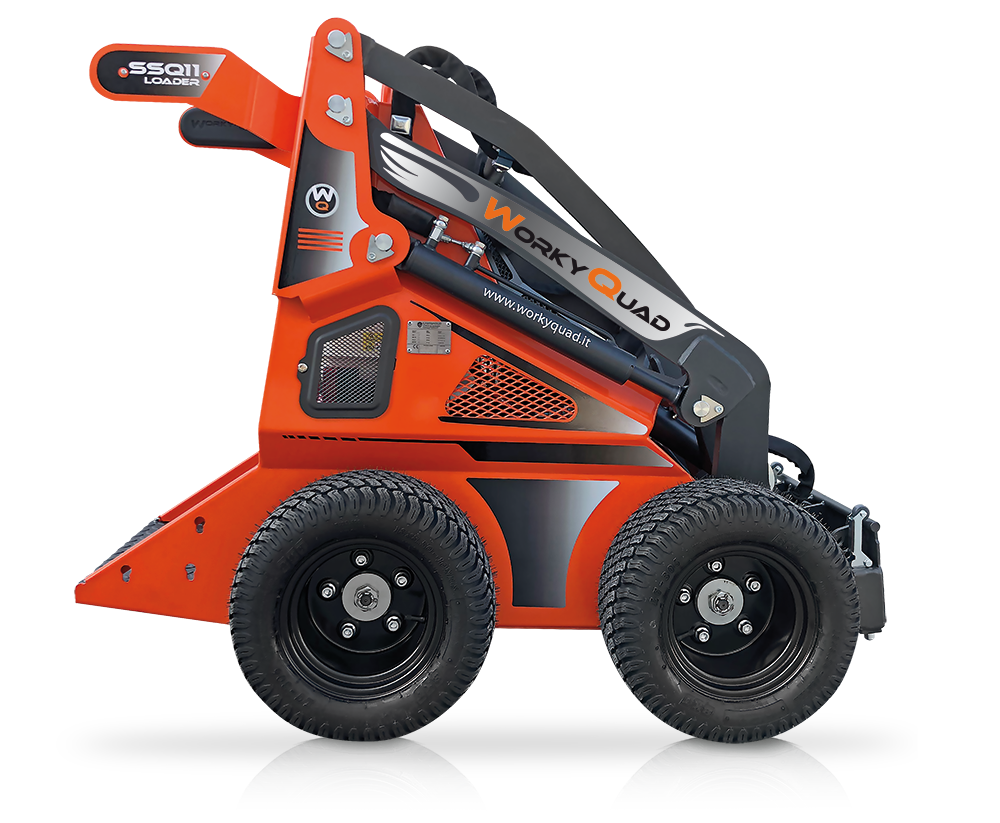

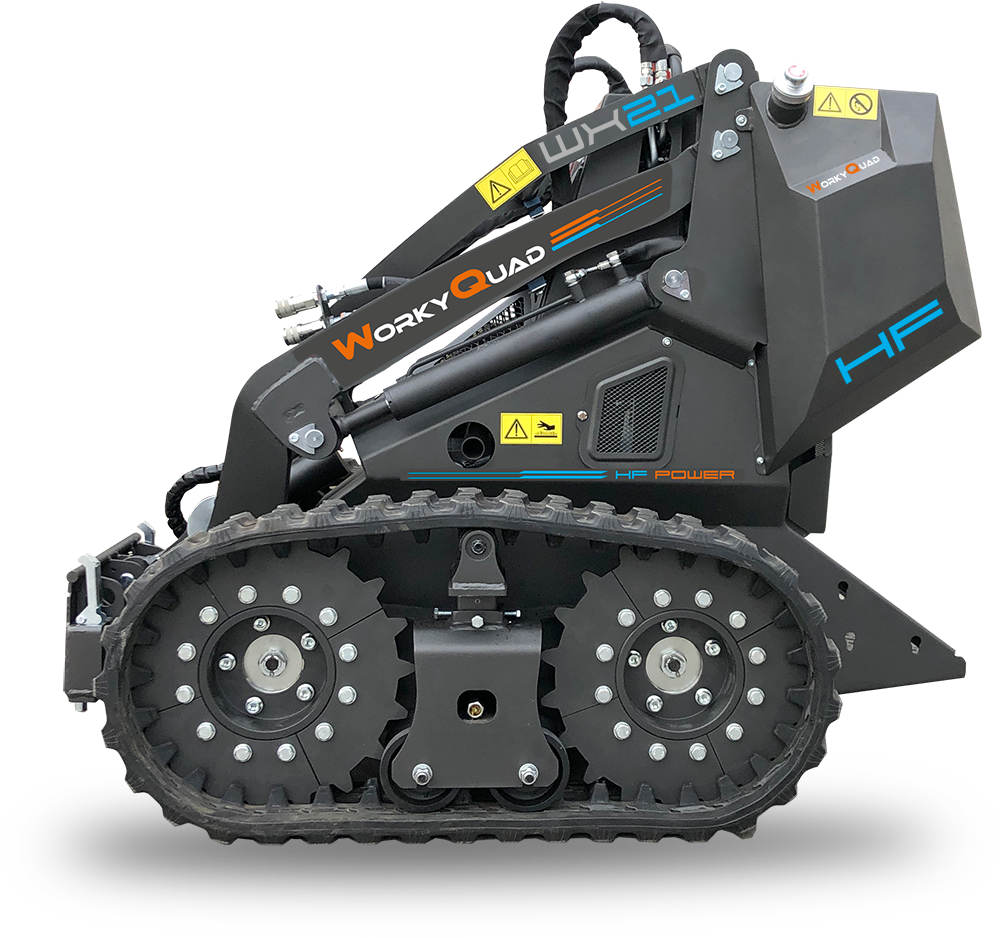

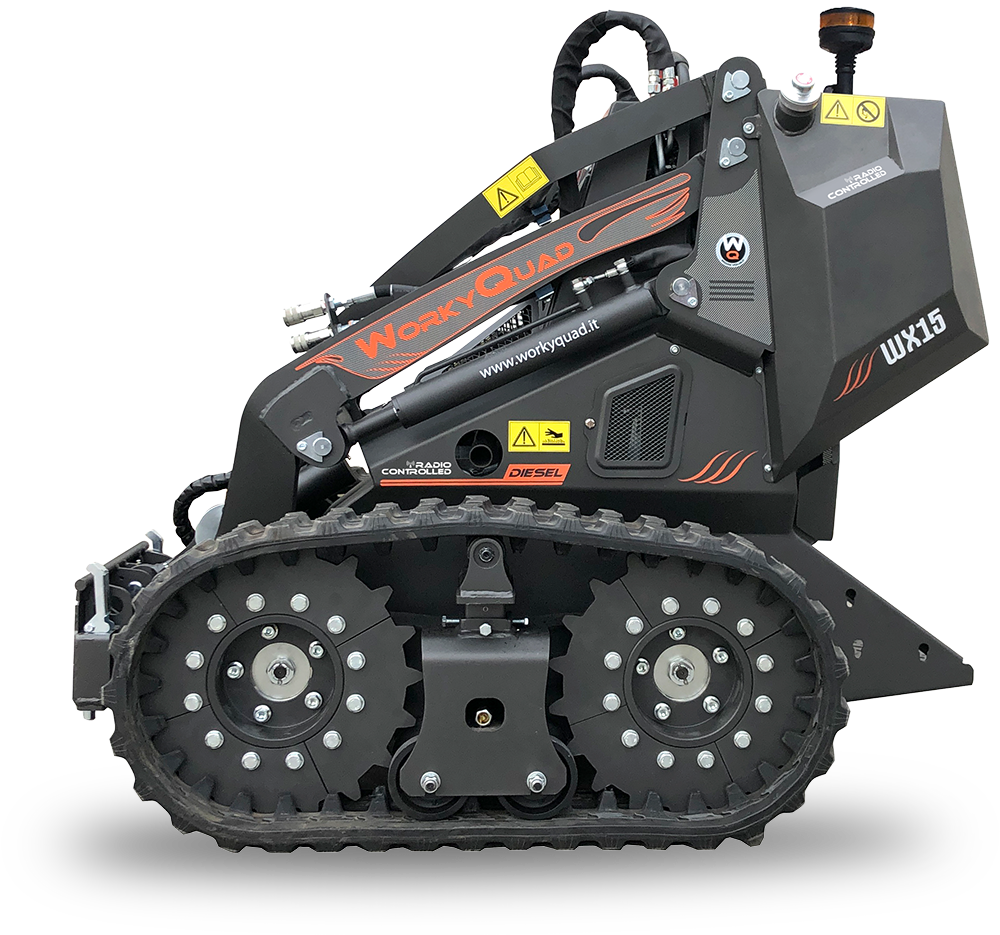

Related Machines
