LIFTING
340kG
WITH COUNTERWEIGHTS
ENGINE POWER
14,8HP
KUBOTA Z602 - 4B
HYDRAULIC FLOW RATE
25,6L/min
190 BAR

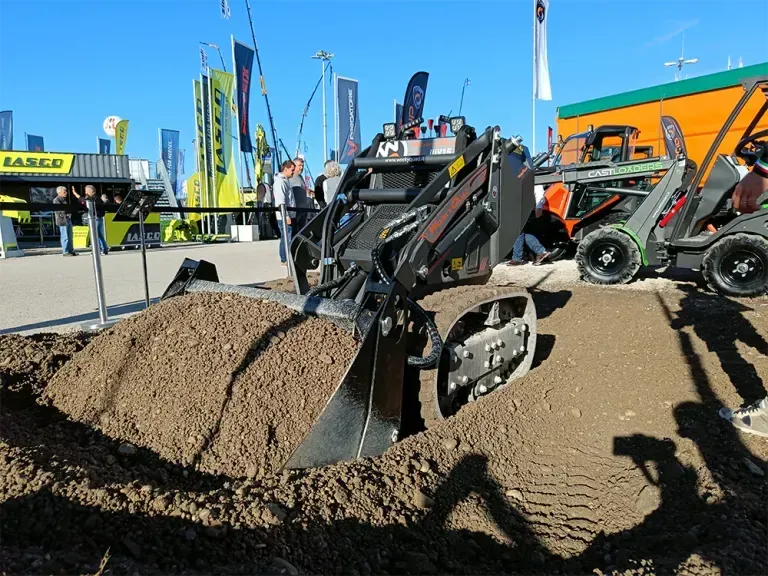

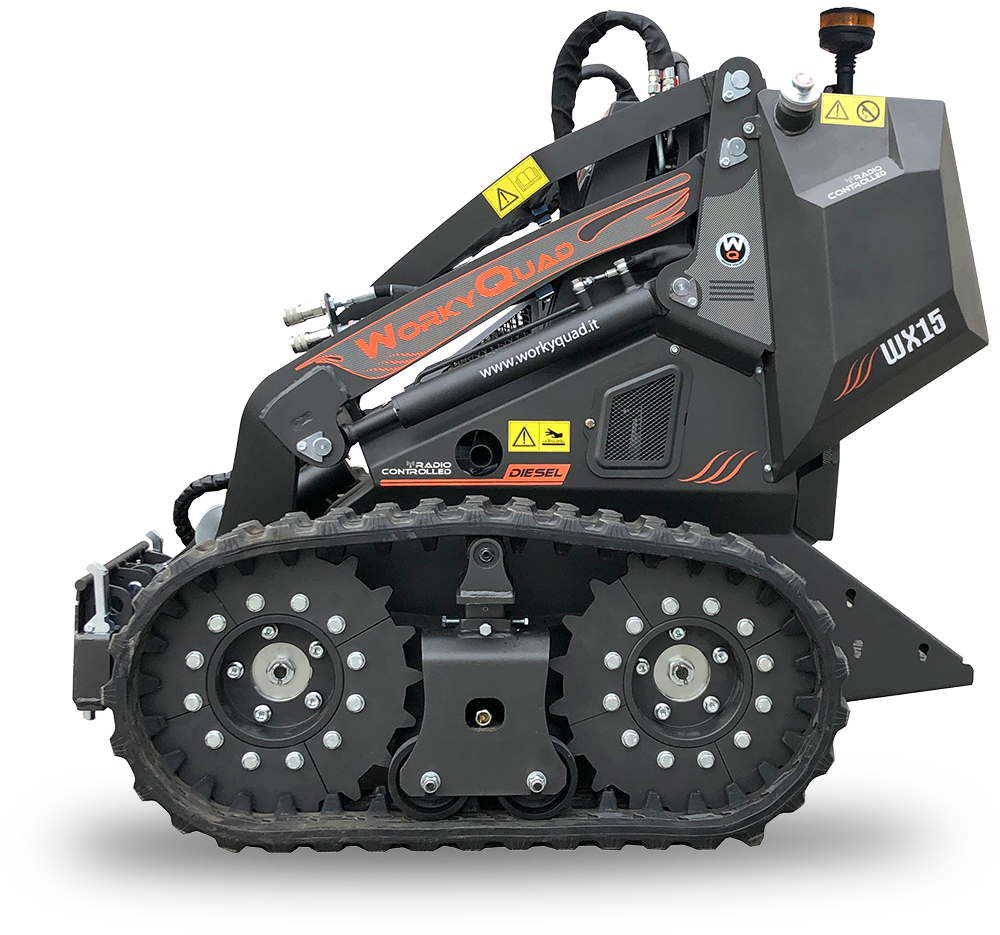

Practicality, robustness and reliability make the WorkyQuad WX15 RC an outstanding and versatile machine, capable of handling all types and conditions of terrain. The WX version has been developed for the demanding professional who needs to move around in confined spaces and at the same time have a reliable, small-sized yet high-performance machine.
Our WXs are equipped with a direct drive system and rubber tracks with an "all trac" tread pattern. The steel toothed drive wheels offer strength and durability. The rubber tracks reduce pressure on the ground, enhancing grip and traction. This design allows the machine to move smoothly, reducing sinking on soft ground and improving energy efficiency. In summary, the skid steer is ideal for working in difficult terrain due to the combination of improved grip, reduced pressure and reduced resistance.

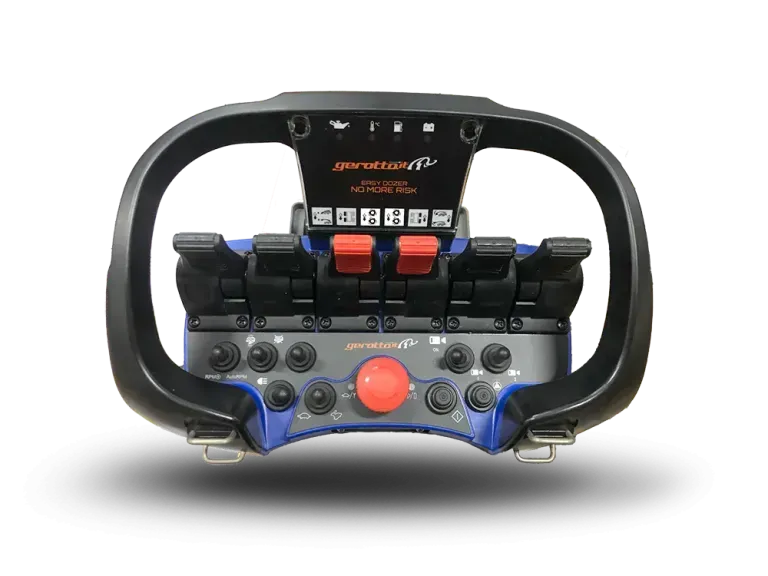

The wx15 RC comes with an ergonomic radio control enabling you to control the machine with ease.
WorkyQuad wx15 D/RC | SPECIFICATIONS |
---|---|
Engine | KUBOTA Z602 - E4B |
Power HP/Kw | 14,8/10,9 |
Displacement cm3/ number of cylinders: | 599/2 |
RPM | 3200 |
Ignition | Electric |
Cooling system | Air |
Fuel | Diesel |
Drive System | Hydraulic with 4WD/radio-controlled |
Hydraulic flow rate l/min | 25,6 |
Speed | 0-4 (proportional) |

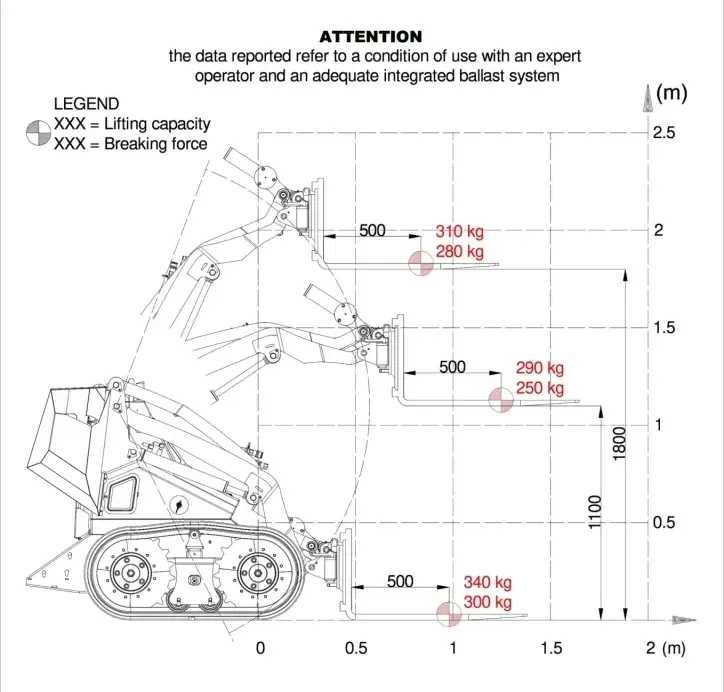

Lifting capacity Kg | 340 (with counterweights) |
Traction capacity Kg | 420 (with counterweights) |
Tear-off force Kg | 300 |

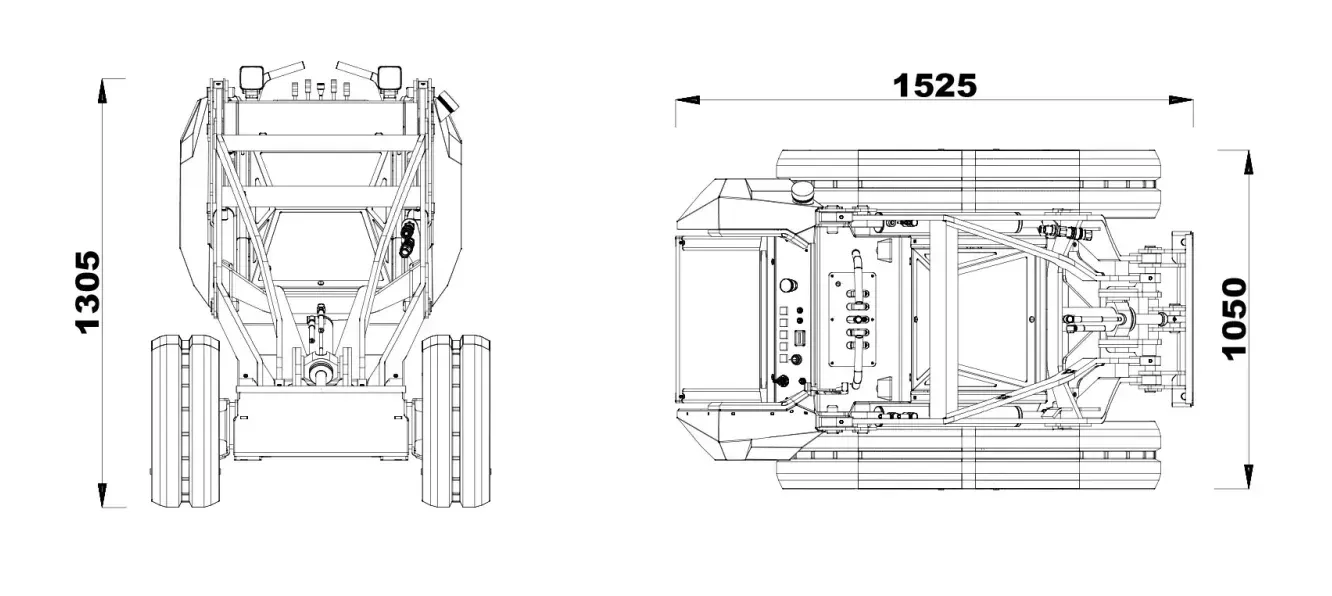

Dimensions ( L mm x W mm x H mm) | 1525 x 1050 x 1305 |
Weight Kg (empty) | 884 |

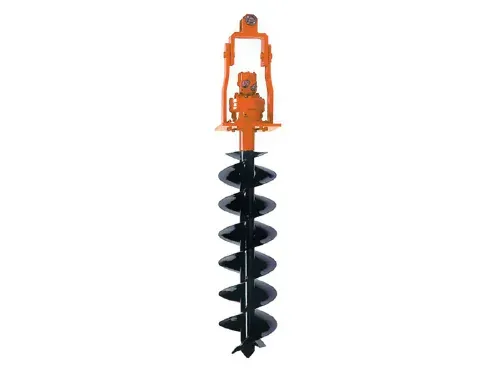

Specific attachment to drill holes for planting, palisades, fences, small pillars. Ideal for breeding, agriculture, construction. Available with two different hydraulic capacities, it enables you to work on sand and clay to rocky terrain.

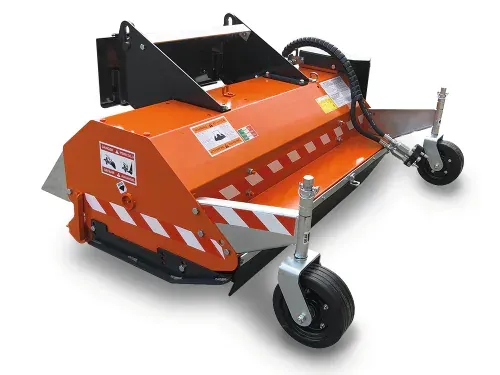

Grass Shredder with great cutting power, very effective for cutting tall grass and pruning.Hydraulic operating system enabling high productivity in terms of time and cutting quality. Cutting height 2-12cm.

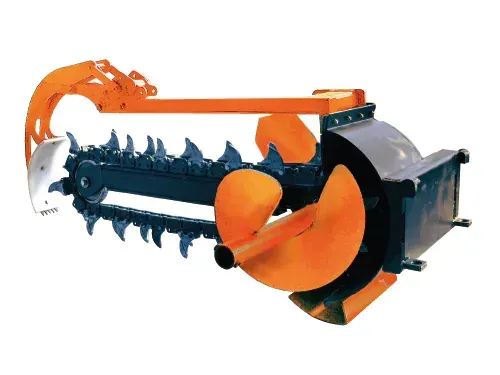

The Trencher is an essential attachment for creating channels in the ground for different environments including agriculture, gardening and construction. The digging width is 12cm but it can be expanded up to 20cm thanks to the optional excavation enlarger.

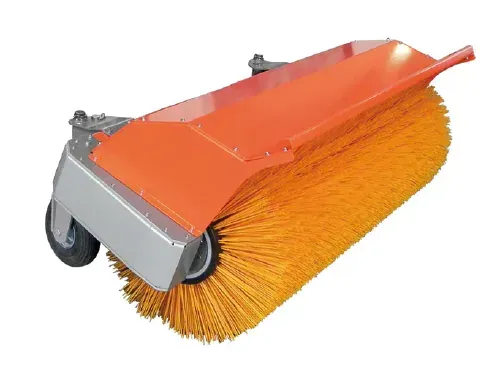

This attachment is suitable for removing dirt, debris, snow, etc from roads, footpaths, courtyards and yards. Rotating brush movement with nylon brushes, operated by a hydraulic and floating system with horizontal tilting mode.

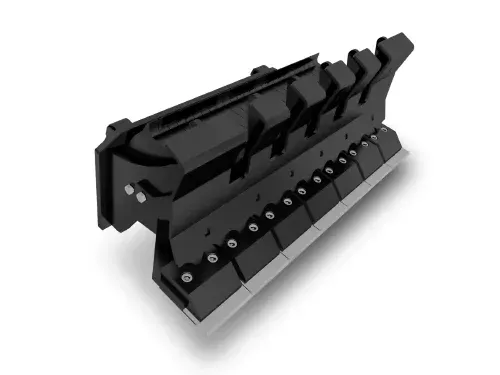

Very sturdy attachment capable of removing carpet and tiles.

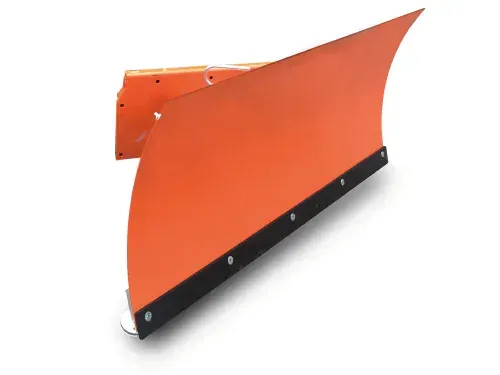

High strength steel construction with polyurethane bottom blade for clearing snow on extra deep pavements. It is available in hydraulic or mechanical versions.

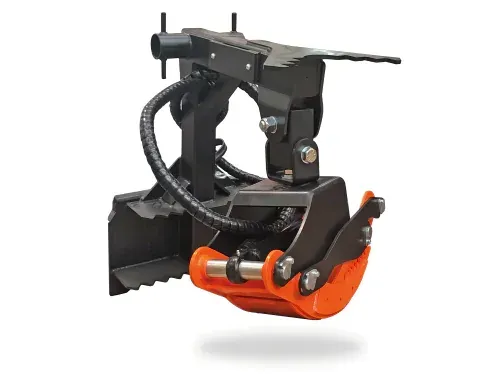

High capacity grapple wiith hydraulic system to handle bulky and heavy logs.

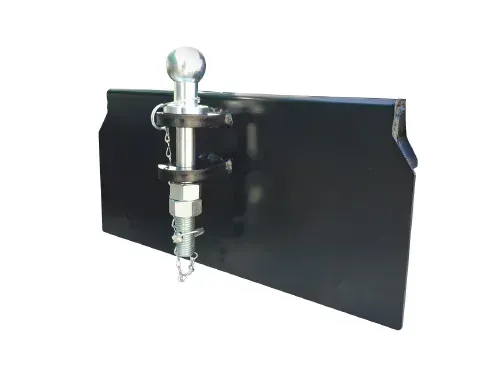

A useful attachment when trailers and trolleys need to be moved. It clips on to the front plate.

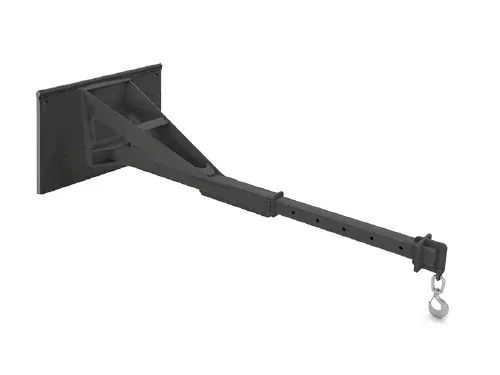

Suitable for all lifting operations where accessibility is difficult or there are obstacles. Built in reinforced steel.

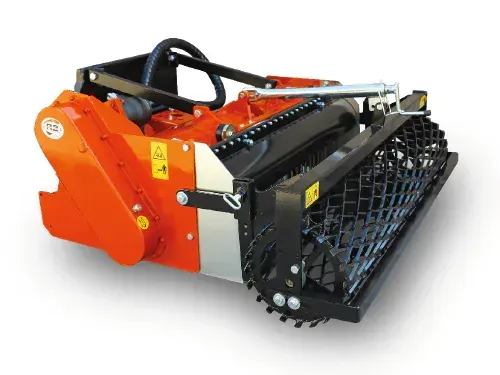

Excellient for the preparation of soil for sowing in agriculture and gardening. Removes pebbles and chalksthe ground with excellent levelling.

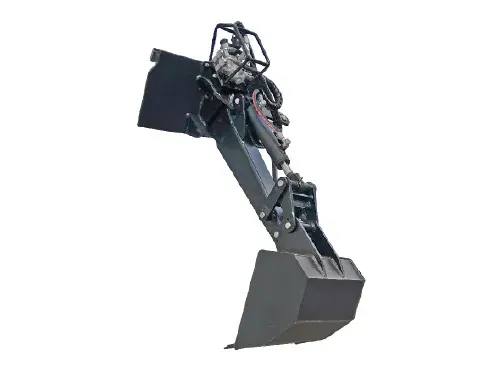

Ideal for handling earth in small excavations or confined spaces. It is easily transported and mounted on the machine. Equipped with a joint that it allows it to rotate to the side.

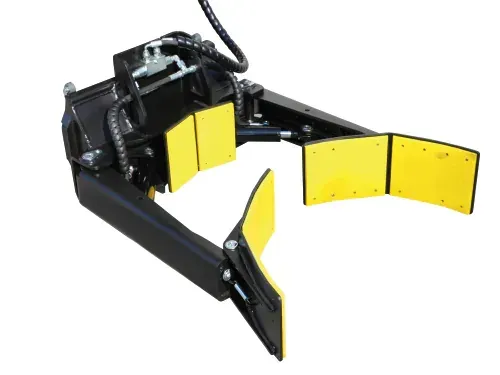

Used in various sectors such as industrial storage, gardening and Horiticulture. Thanks to its pliers coupled with soft rubber, it lifts jars of various sizes without damaging them with maximum grip and safety.

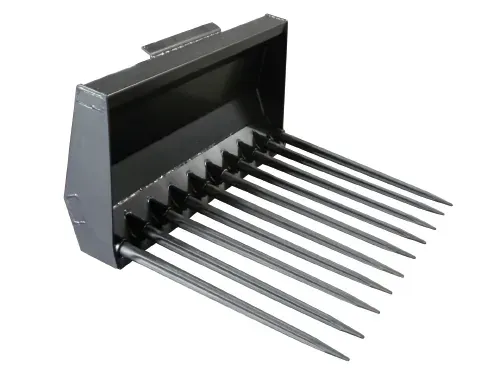

Built to offer excellent visibility to the machine operator, it is suited to sectors such as breeding, animal bedding and cleaning stables. The teeth can be easily and quickly replaced.

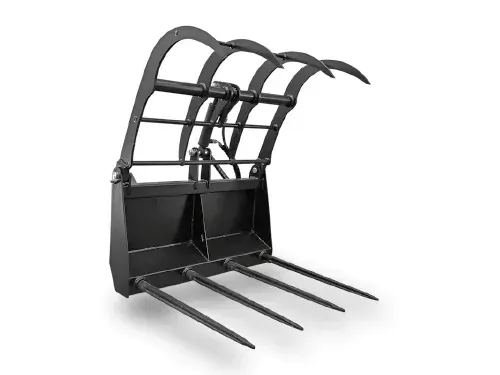

This is a multipurpose bucket for handling fodder for livestock or in agriculture. Thanks to the hydraulic movement and the wide opening radius. it is able to manage large logs as well as branches, etc.
Built in high strength steel with a safety frame,. Available in four versions depending on the machine model.

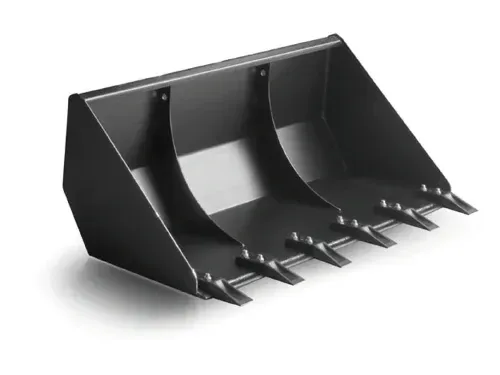

The sand bucket is made of sturdy steel, suitable for handling aggegates, soil and waste materials.

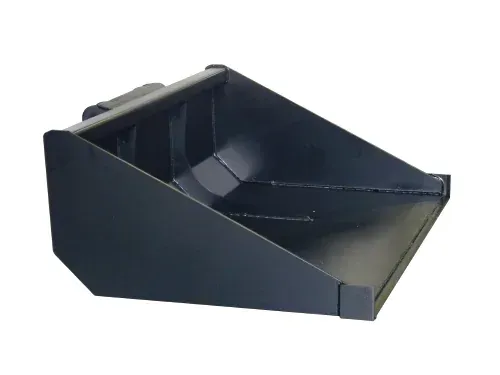

An extra strong and reinforced steel buckets. Offers excellent visibility in levelling work. Ideal for handling heavy material including sand and earth.
Multifunctional attachment, useful in different types of applications. Thanks to the lower opening operated by a double hydraulic cylinder, it can move stones, building materials as well as levelling. Teeth are supplied separately.

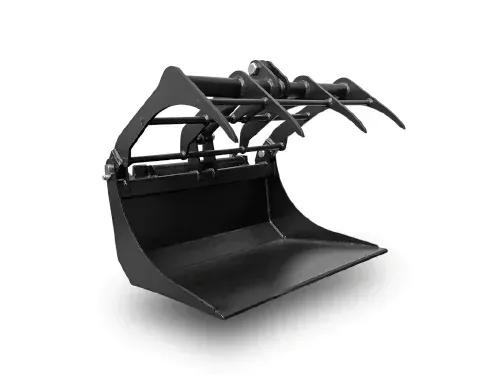

The grapple bucket has been designed to handle objects of irregular shape. Ideal for trees, large rocks, bushes, industrial and demolition waste and recycling debris.

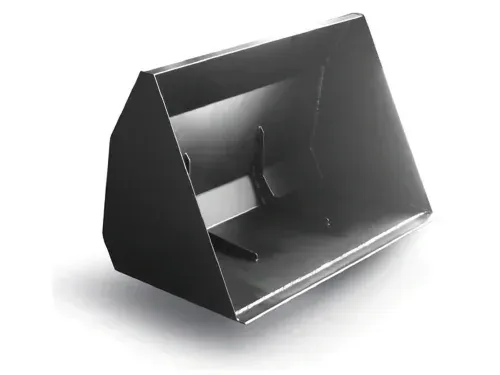

High capacity bucket built with sturdy steel, suitable for handling light and voluminous materials such as debris, pruning, foliage, snow, etc.
