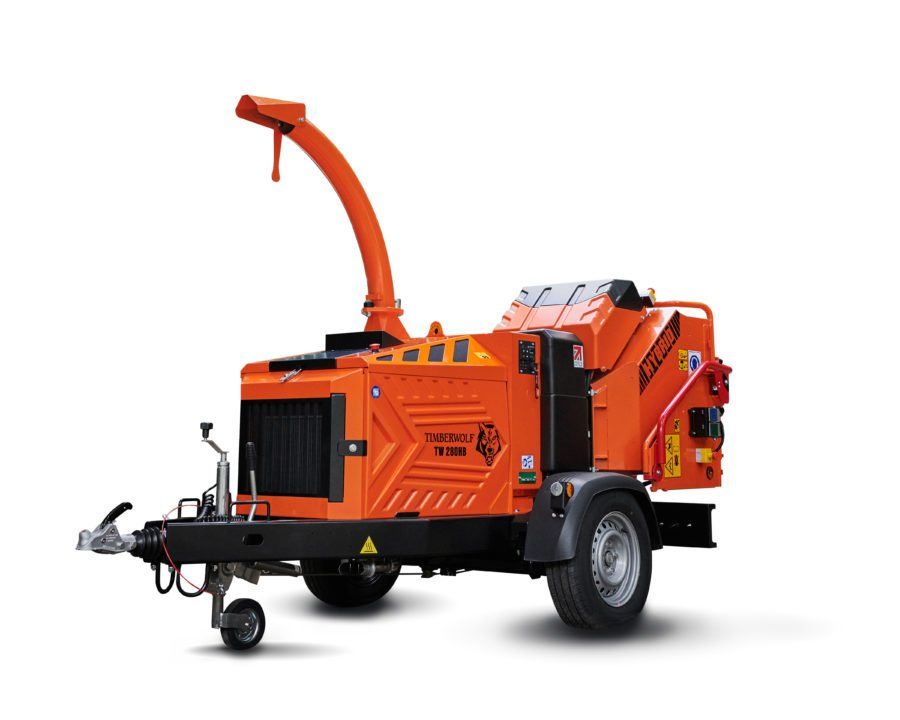

The TW 280HB HYBRID is Timberwolf's most powerful wood chipper to date, making it the perfect chipper for the most challenging of jobs.   Developed to meet a growing need in the industry, the Timberwolf TW 280HB HYBRID Chipper offers peak power of 62hp with Kubota Super Mini Series engine emission levels. Easy to maintain, the TW 280HB HYBRID is ideal for companies who are committed to minimising their emissions and fuel usage without compromising on performance.

Features:

• Class-leading peak power of 62hp (46.3kW)

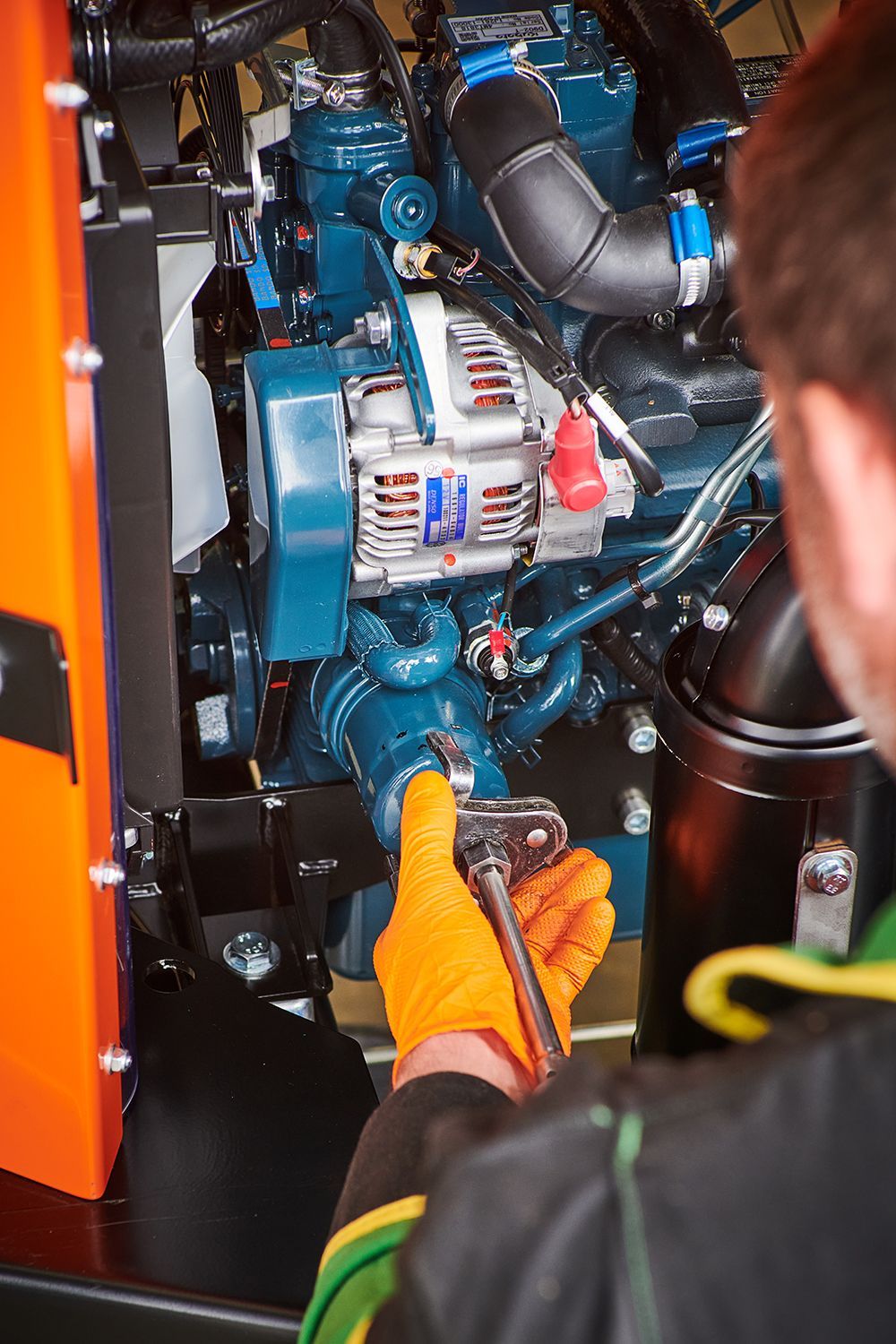

• Kubota D902-TE4, 24.8hp (18.5kW), turbo diesel engine
• With swift recharging capability, SECH supercapacitors provide additional energy when required
• Maintenance-free, 37.3hp (27.8kW) generator synchronous motor (GSM) and supercapacitors
• All electrical components rated to IP68

Benefits:

• Processing throughput of over 7 tonnes/hr
• Emissions and fuel consumption at Kubota Super Mini Series engine levels*
• Self-charging system: no external charging required
• No diesel particulate filter (DPF) or AdBlue™ requirement
• Less fuel quality sensitivity
• Patented exhaust gas cooler reduces exhaust temperatures by 150°C
• Enhanced operator diagnostics for easy troubleshooting


PLUS all the elements you would expect from the TW 280 range:

• EN13525 compliant
• 280mm x 210mm feed opening (210mm (8 1⁄4”) cutting performance)
• 2 x quick access double-sided reversible blades
• Quad force rollers for ultimate crushing power
• 285° adjustable discharge chute
• Refined, ergonomic hitch/unhitch experience with connection storage points
• Timberwolf reliability and simplicity built-in

*Based on Kubota’s emissions and fuel consumption data (testing over a fixed test cycle under laboratory conditions).

How does the Timberwolf Hybrid Powertrain work?

Self Charging Powertrain

When idling, the D902-TE4 turbo diesel engine directs energy into the Inmotion Generator Synchronous Motor (GSM) and drives energy recovery to the rotor (maintaining target RPM). During this period with no chipping load, the SECH supercapacitors are charged by the GSM as instructed by the Chipper Control Unit (CCU).

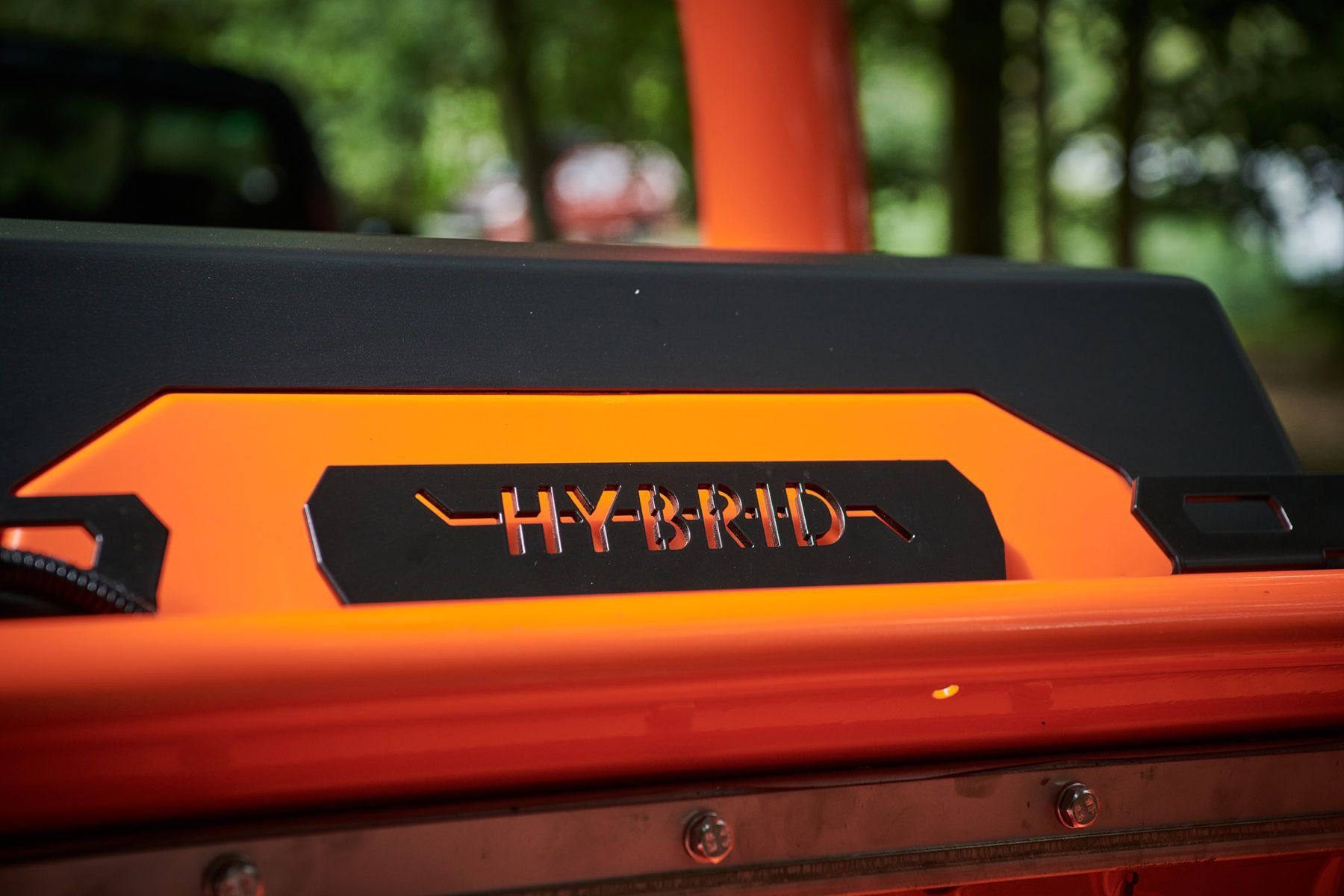

Energy boost on demand

When chipping starts, the rotor RPM naturally drops. If this RPM drops to a pre-determined set-point, the CCU will prompt the demand for additional energy. This is supplied according to the load mode automatically detected by the CCU based on the rate of decay.

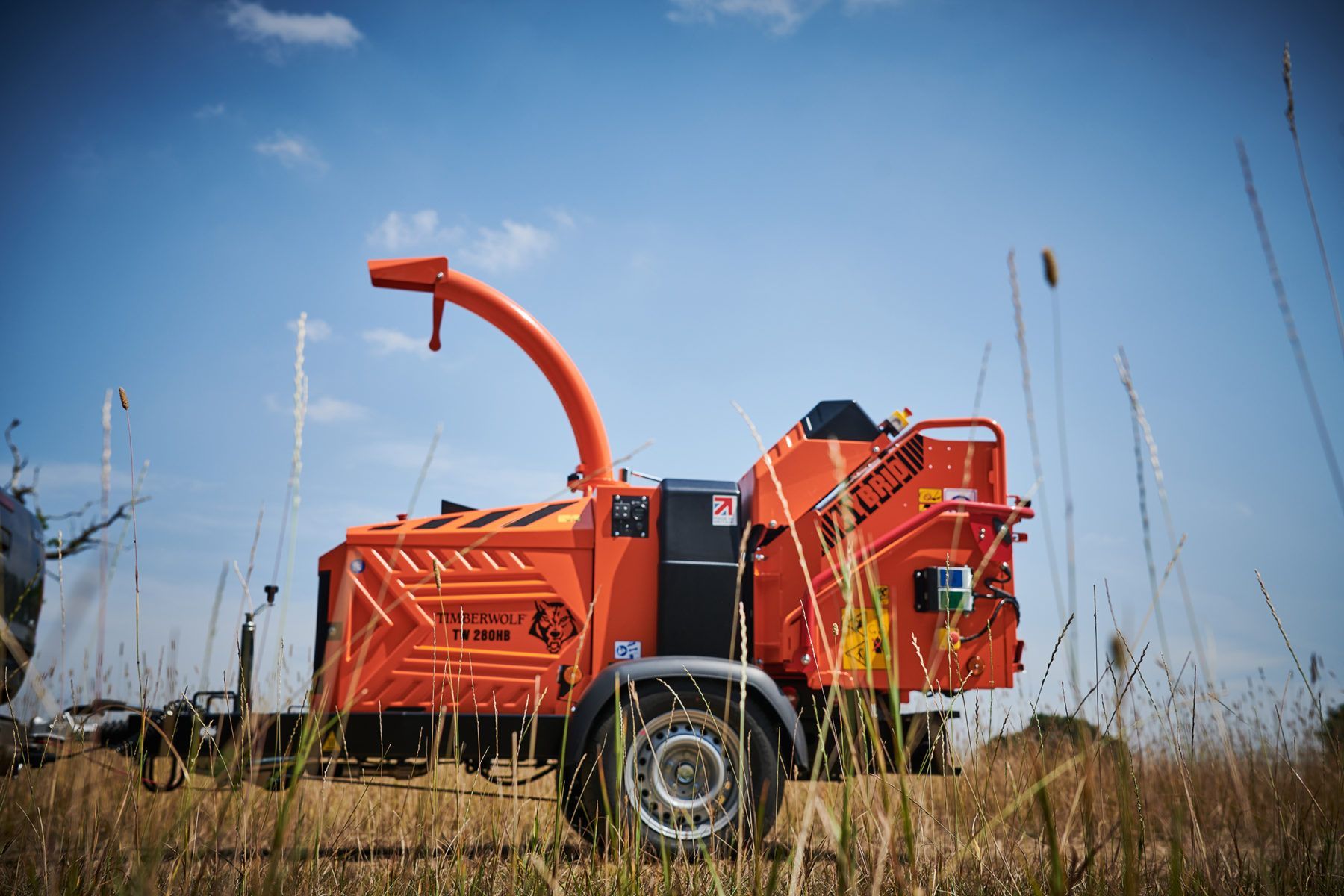

Chipping Power when you need it most!

This additional energy, stored in the SECH supercapacitors, is directed back into the GSM where it now acts to provide additional recovery energy to the rotor. The result is enhanced efficiency and chipping capability for the user when they need it most.
