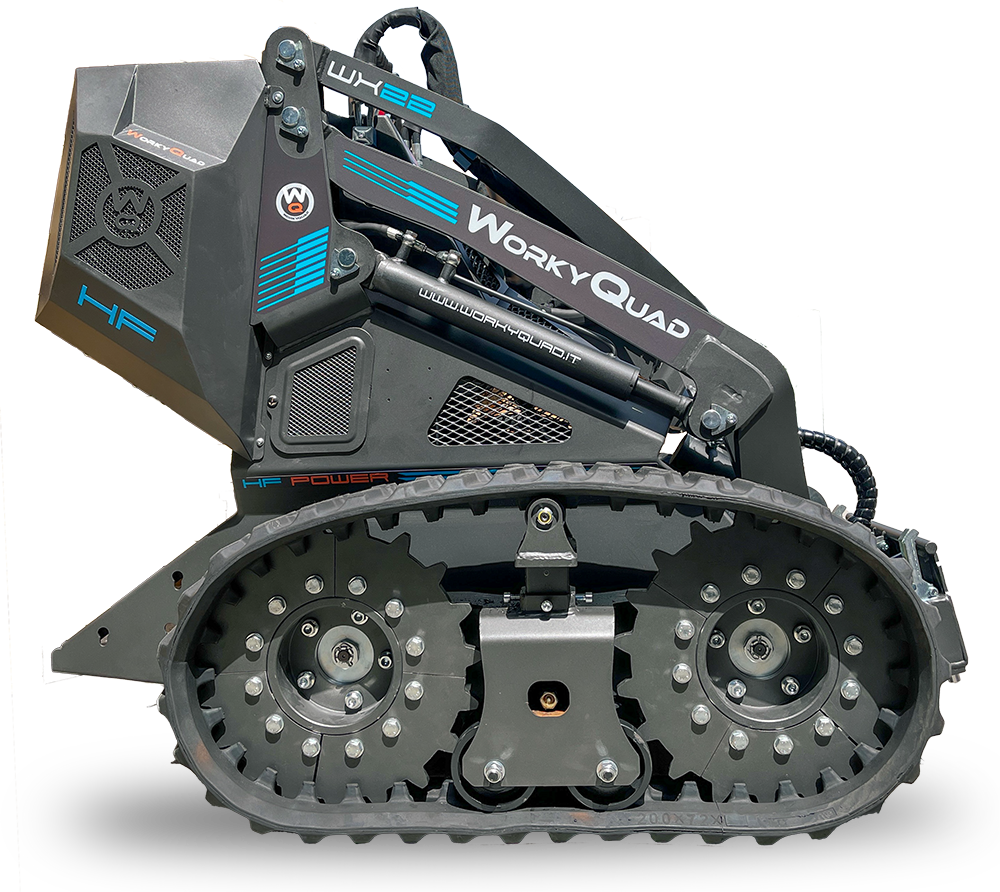

WorkyQuad wx22 HF

WorkyQuad wx22 HF mini Skidsteer

WorkyQuad wxQ22 HF Mini Skidsteer

LIFTING

350KG

WITH COUNTERWEIGHTS

ENGINE POWER

22,1HP

HONDA GX690

HYDRAULIC FLOW RATE

40L/min

"HIGH FLOW" SYSTEM

The 22hp tracked WorkyQuad wx22 HF mini skidsteer offers exceptional power and smoothness, thanks to the new system that allows for greater hydraulic flow.

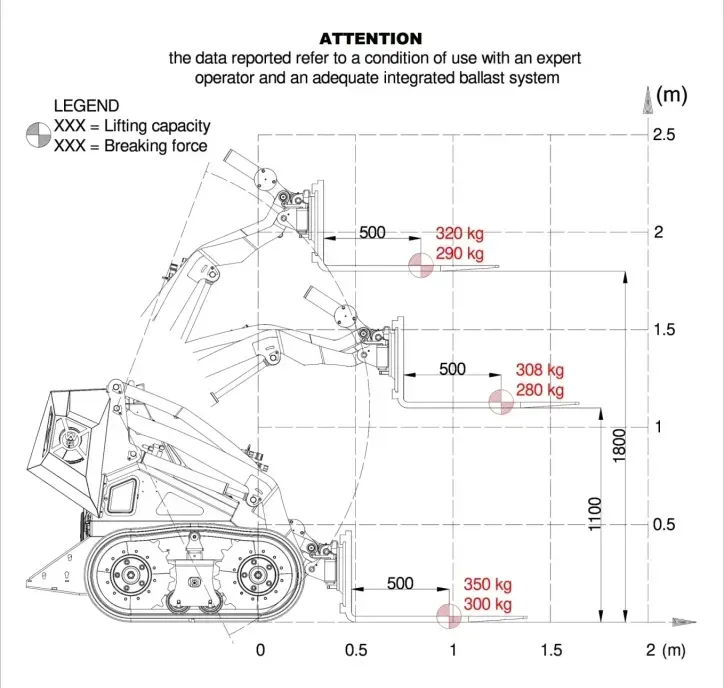

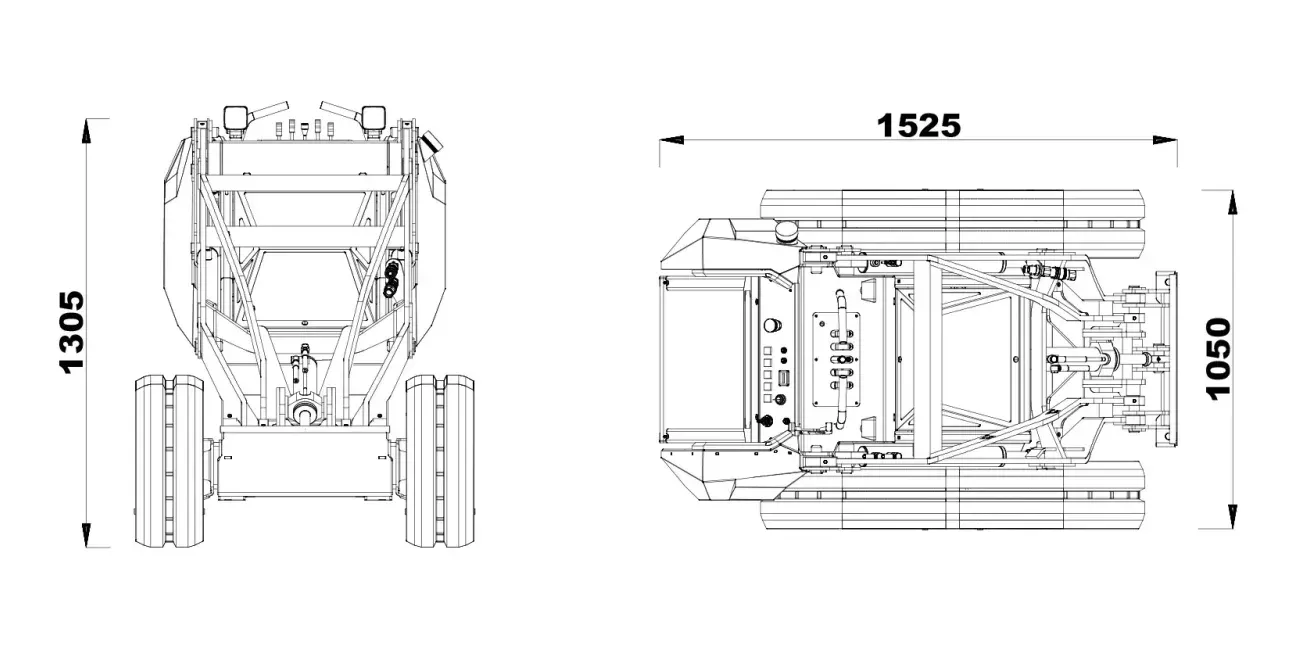

Dimensions

WorkyQuad wx22 HF Dimensions
WorkyQuad wx22 HF Dimensions

Specifications

wx22 HF WORKYQUAD SPECIFICATIONS
Engine HONDA GX690
Power HP/Kw 22,1
RPM 3600
Ignition Electric
Cooling system Air
Fuel Petrol (Euro95)
Drive System Hydraulic with 4WD
Hydraulic flow rate l/min 40
Speed 0-6 (proportional)
Lifting capacity Kg 350 (with counterweights)
Traction capacity Kg 685 (with counterweights)
Tear-off force Kg 320
Dimensions ( L mm x W mm x H mm) 1525 x1050 x 1305
Weight Kg (empty) 830

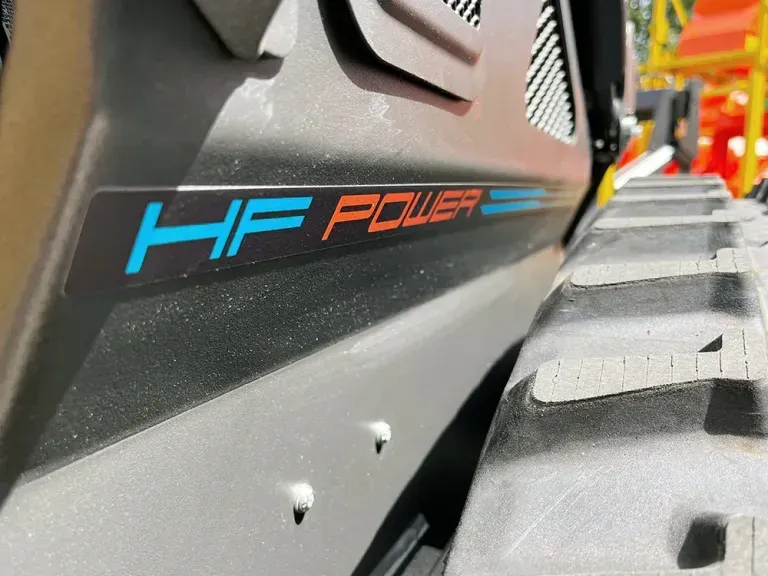

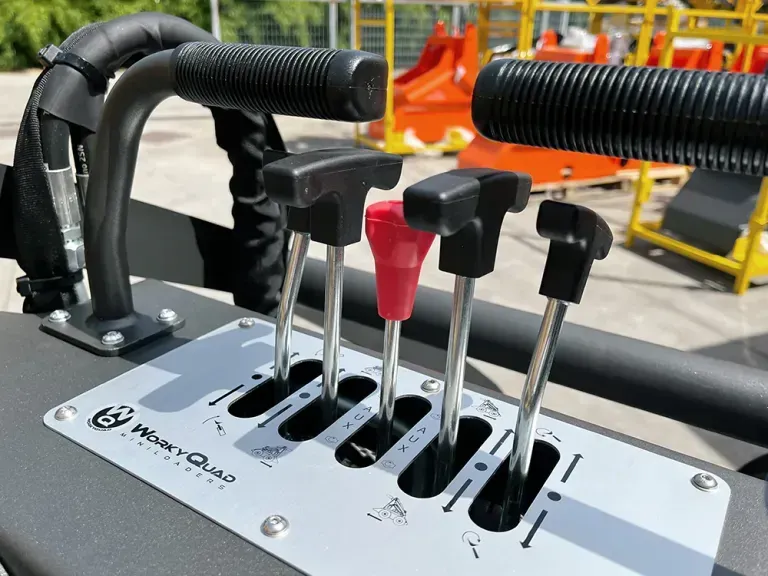

WorkyQuad WX22 HF Features

WorkyQuad wx22 HF features
WorkyQuad wx22 HF features

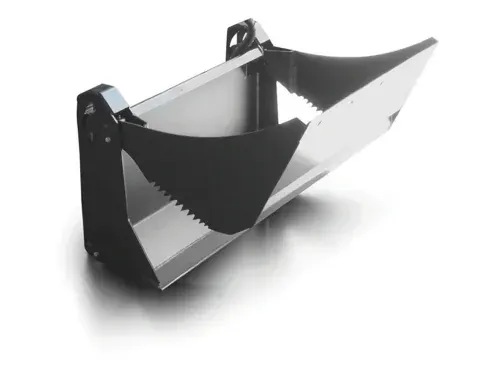

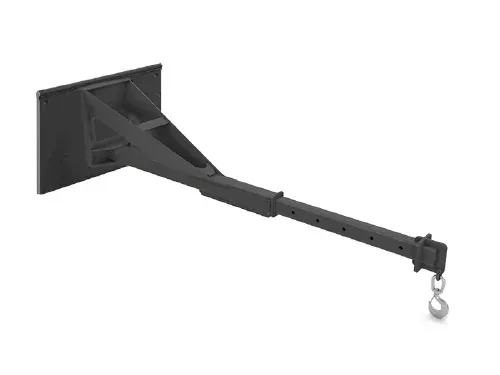

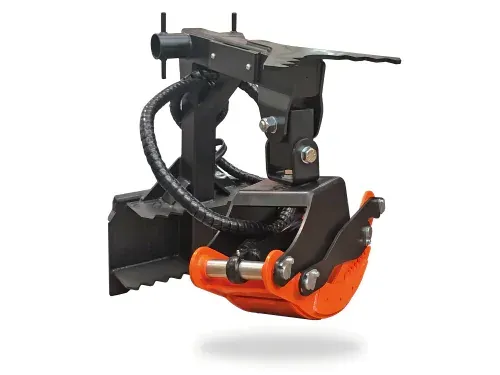

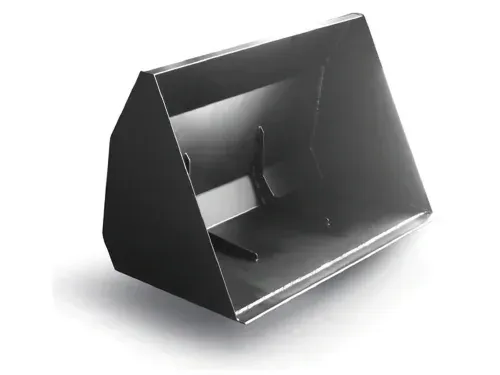

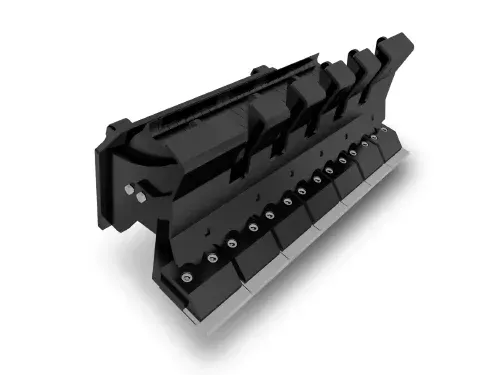

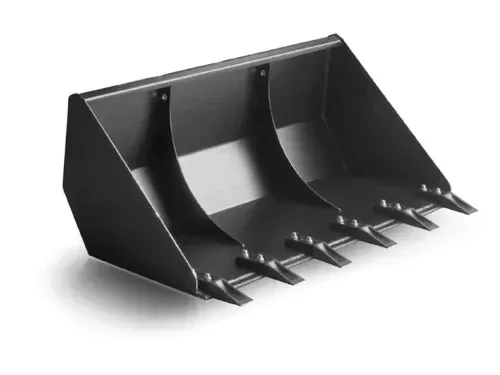

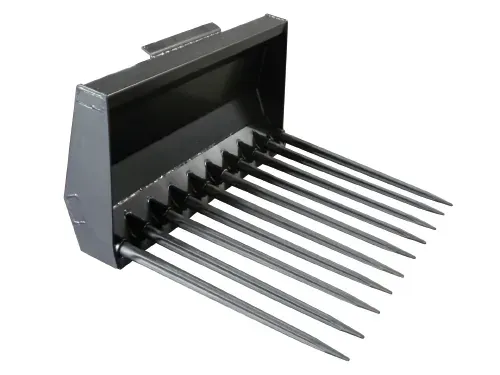

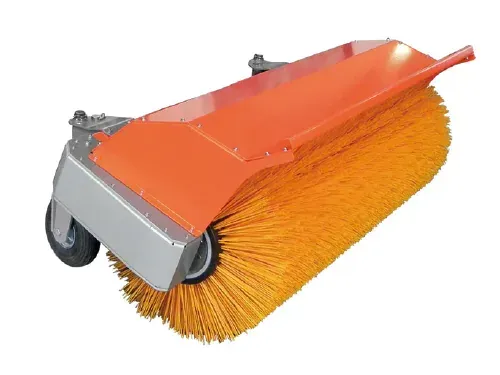

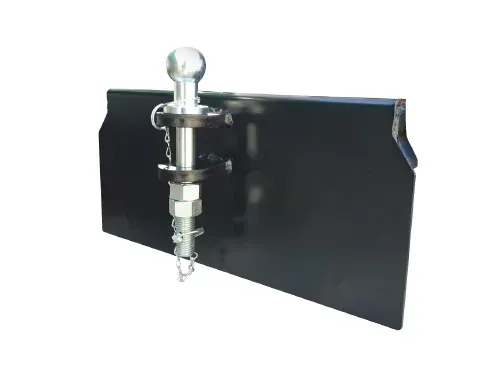

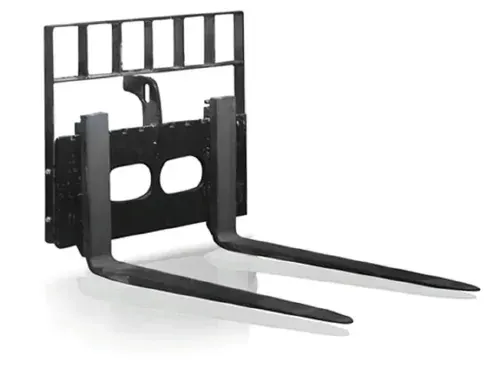

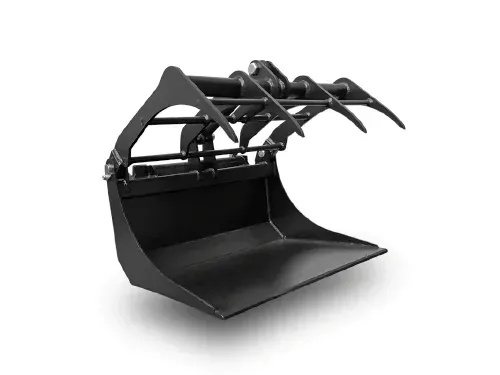

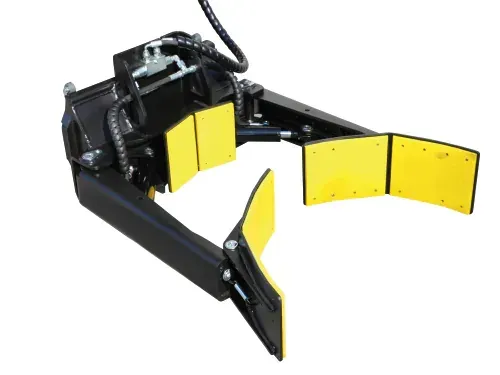

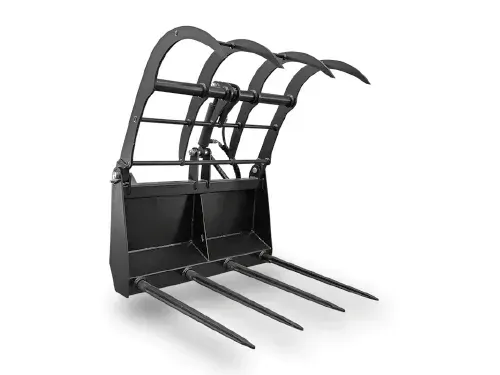

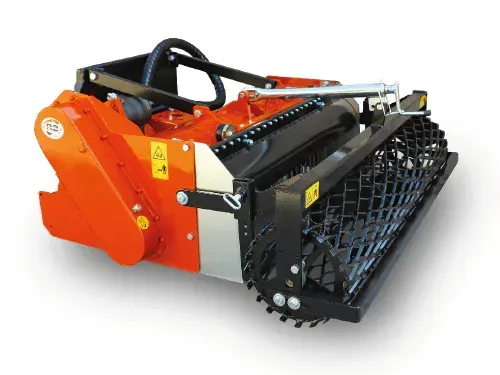

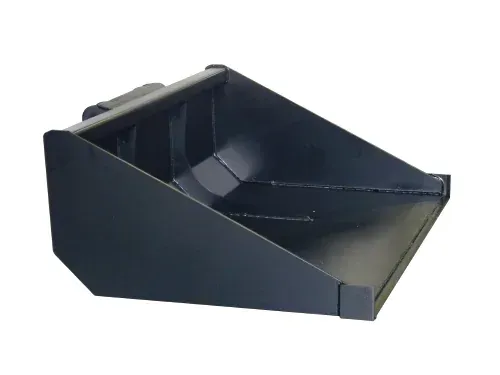

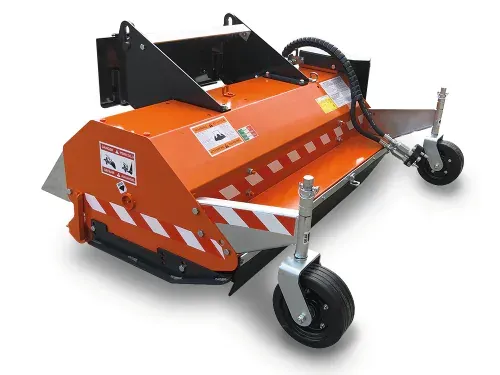

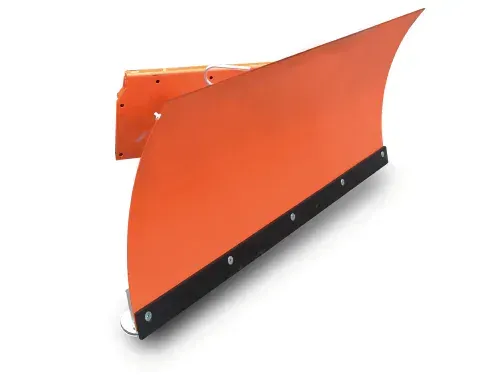

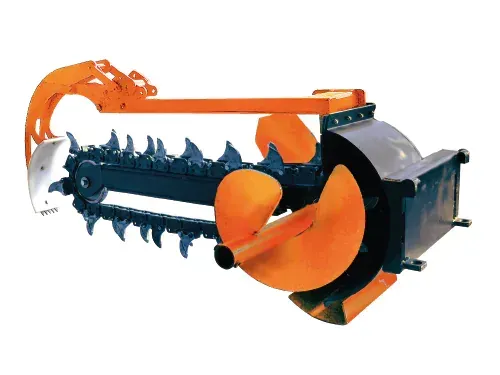

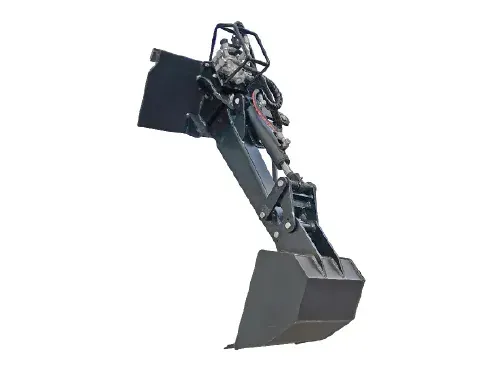

Available Attachments

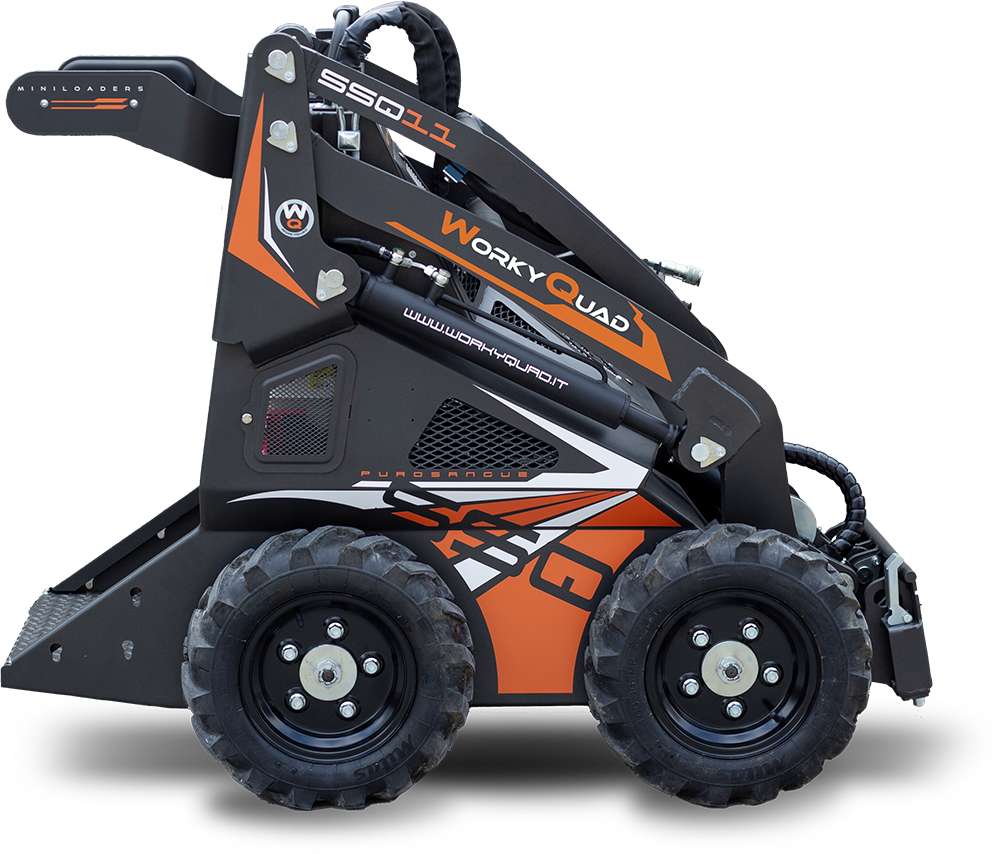

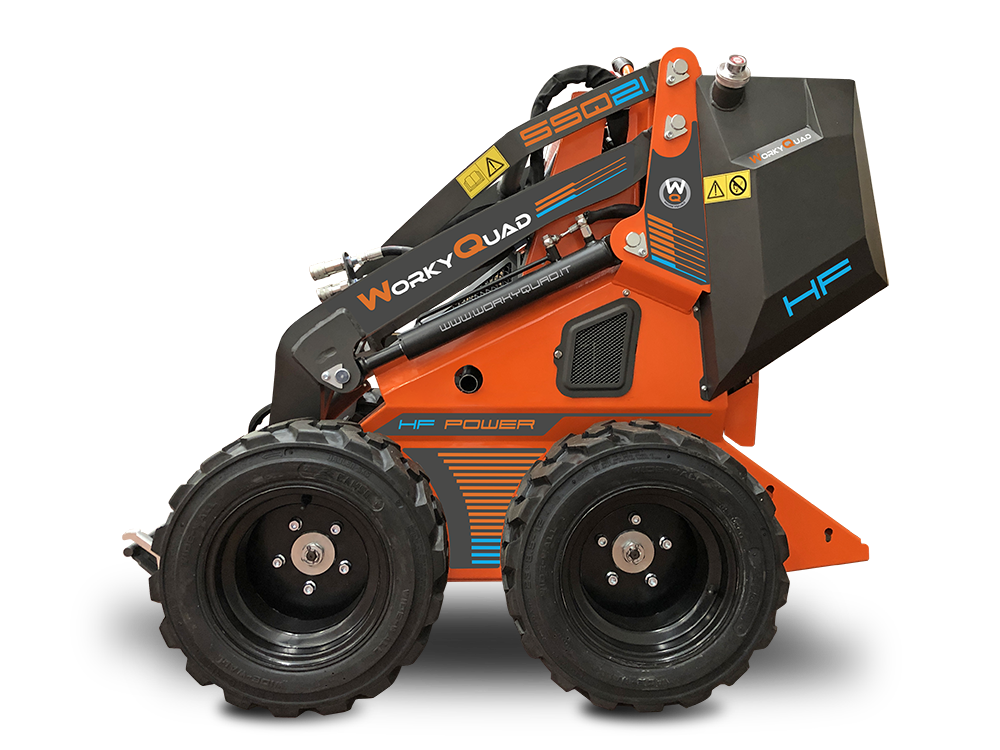

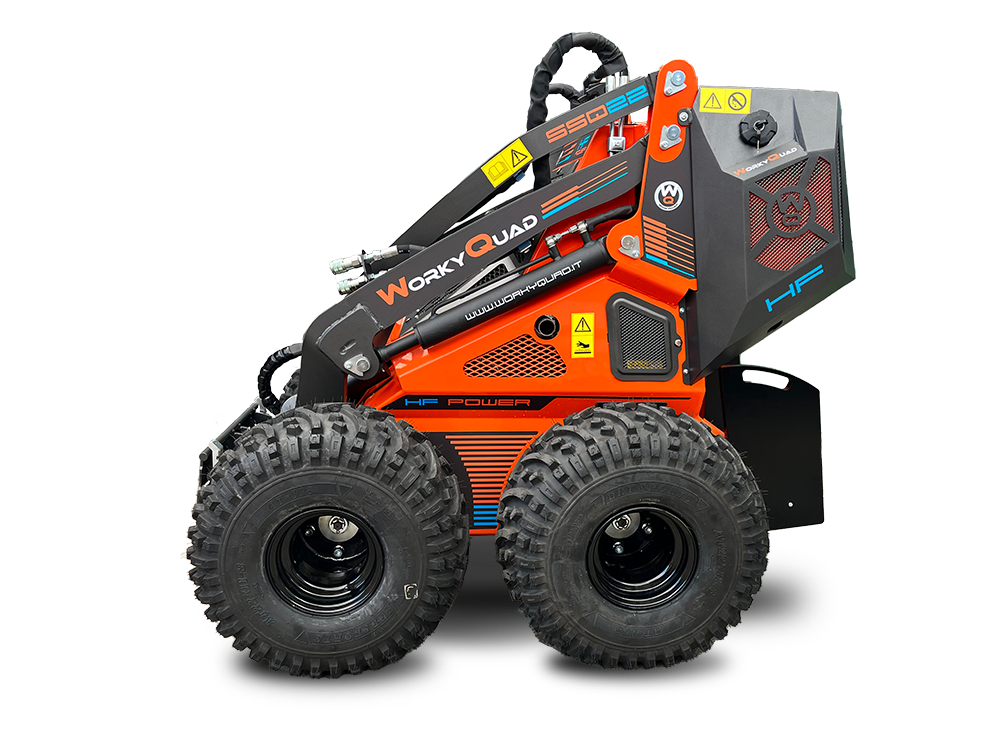

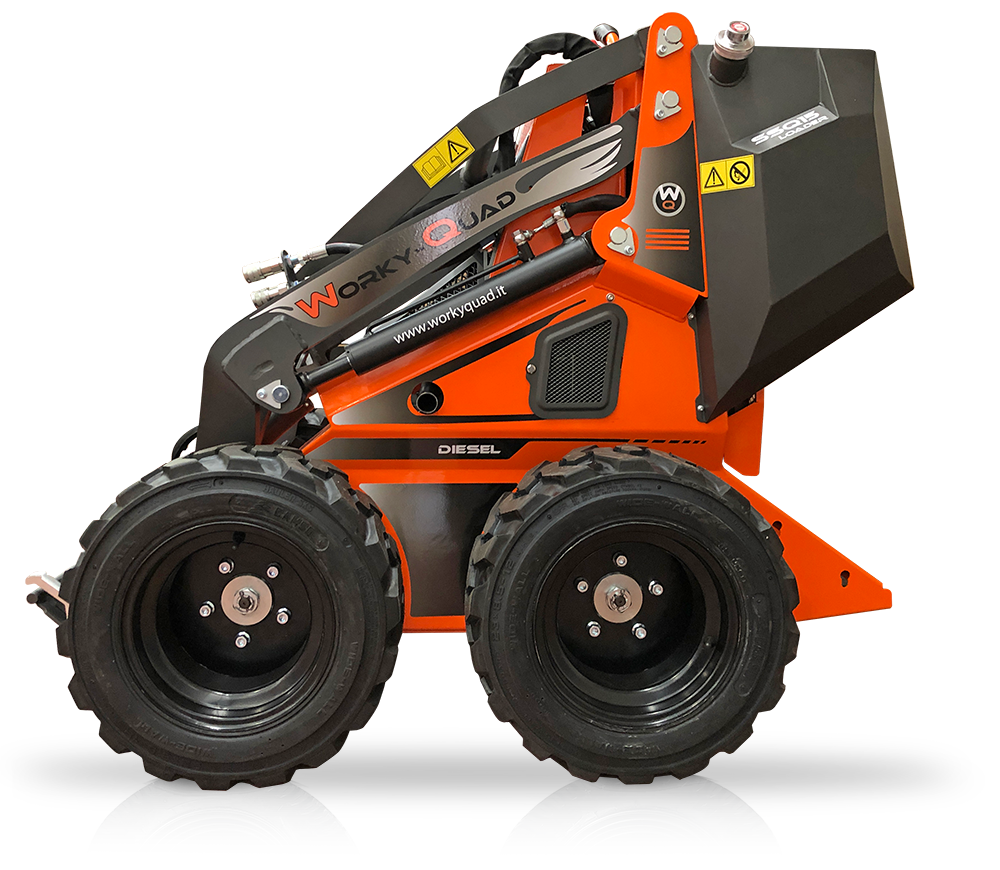

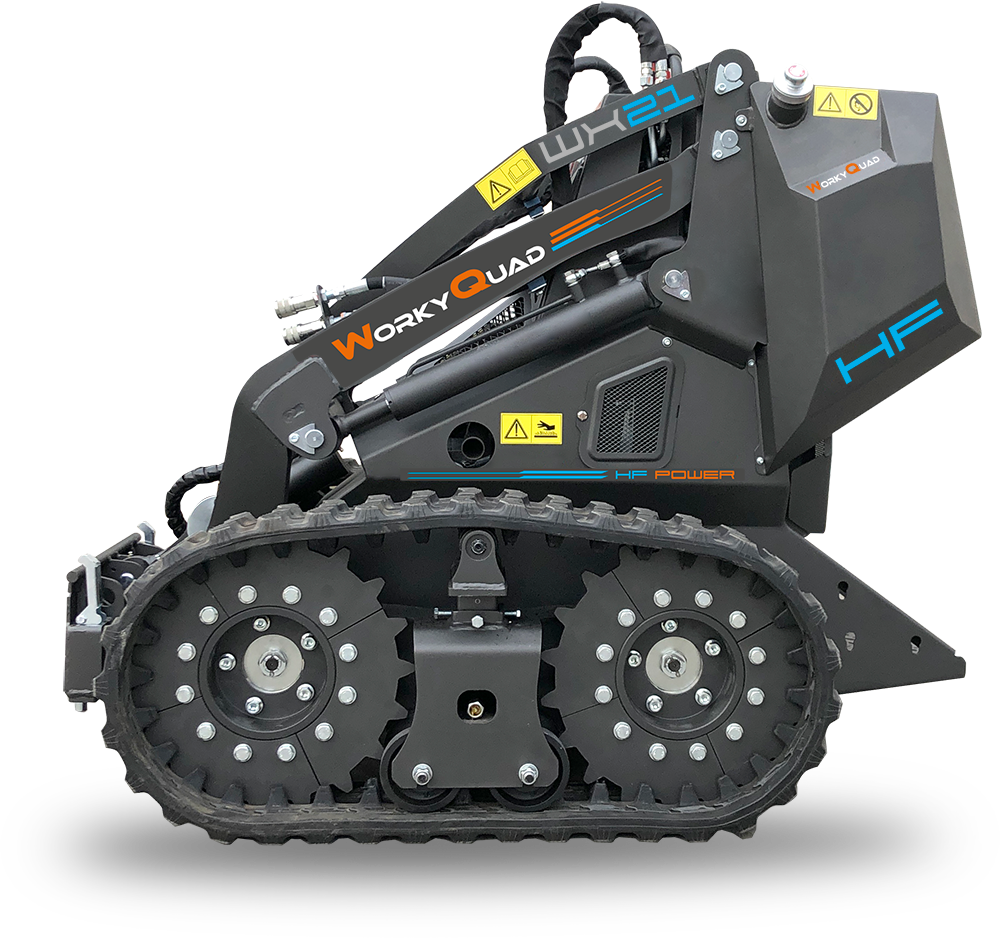

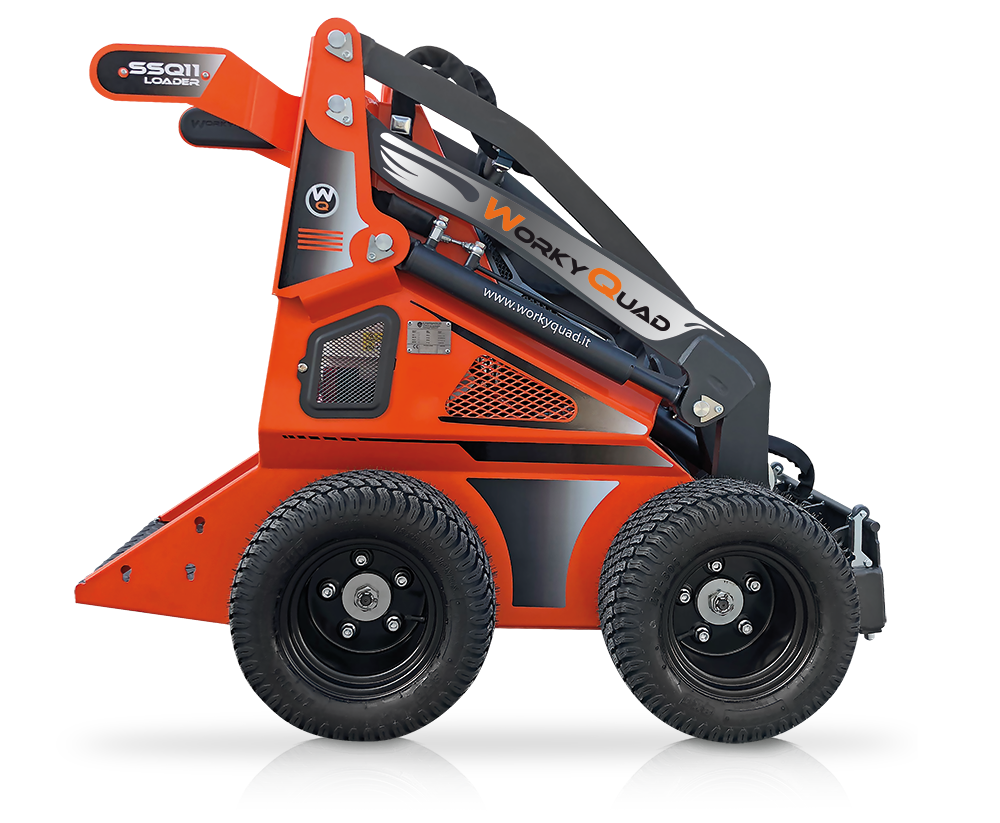

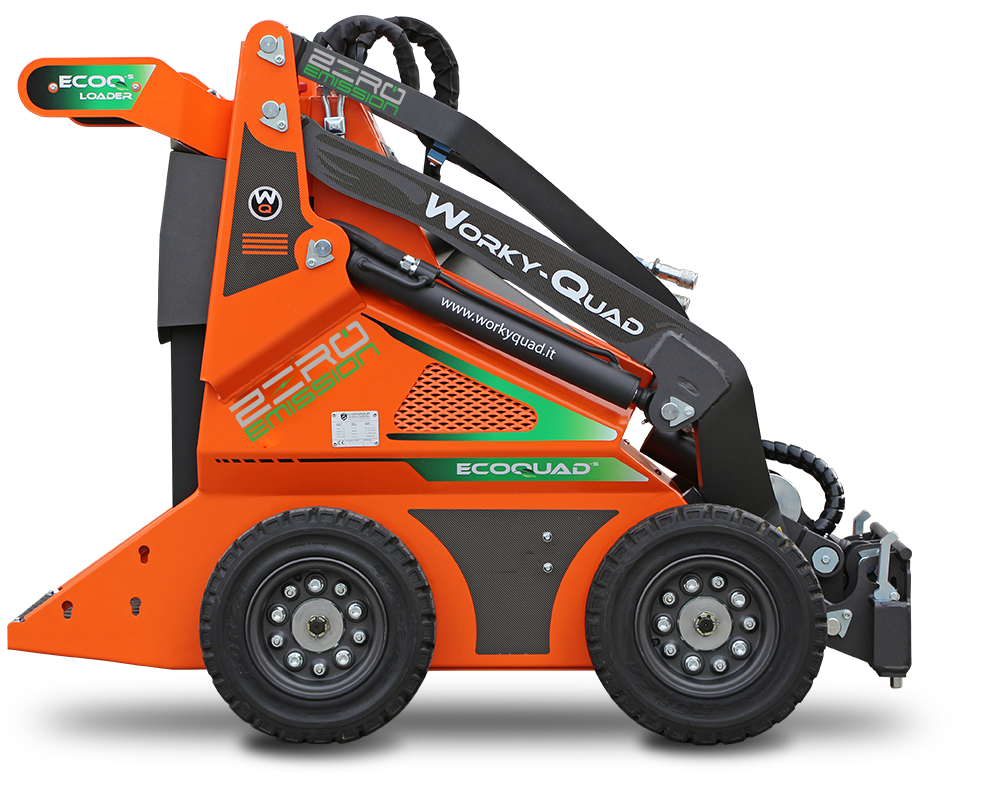

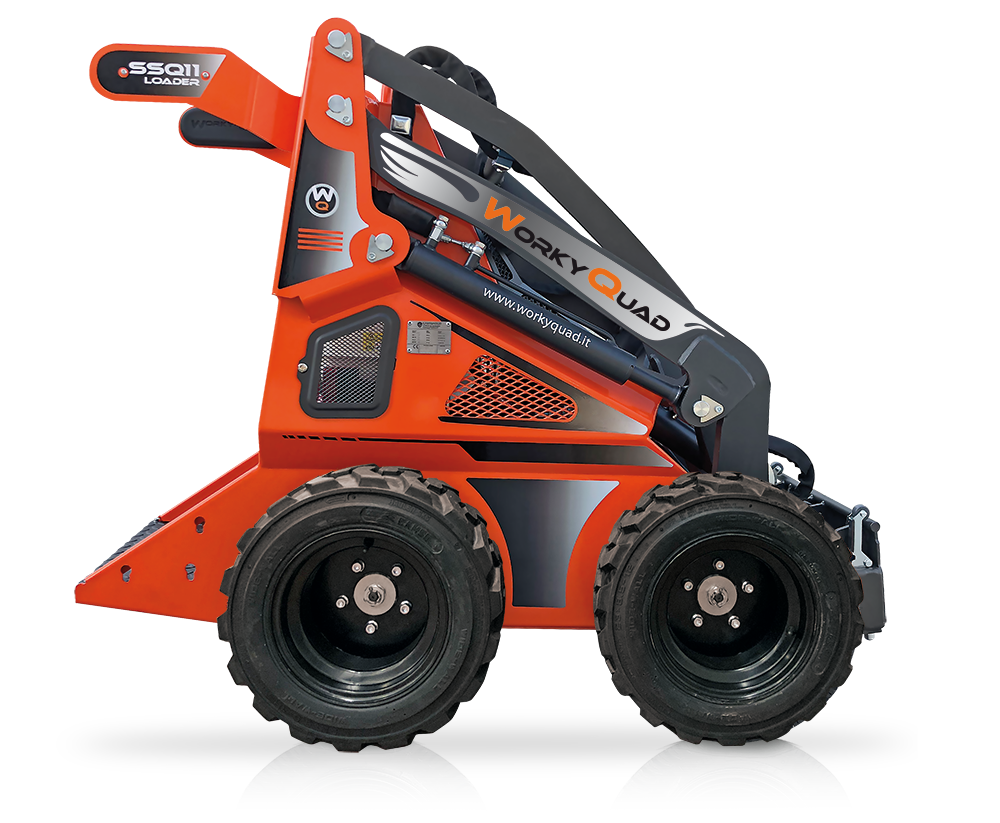

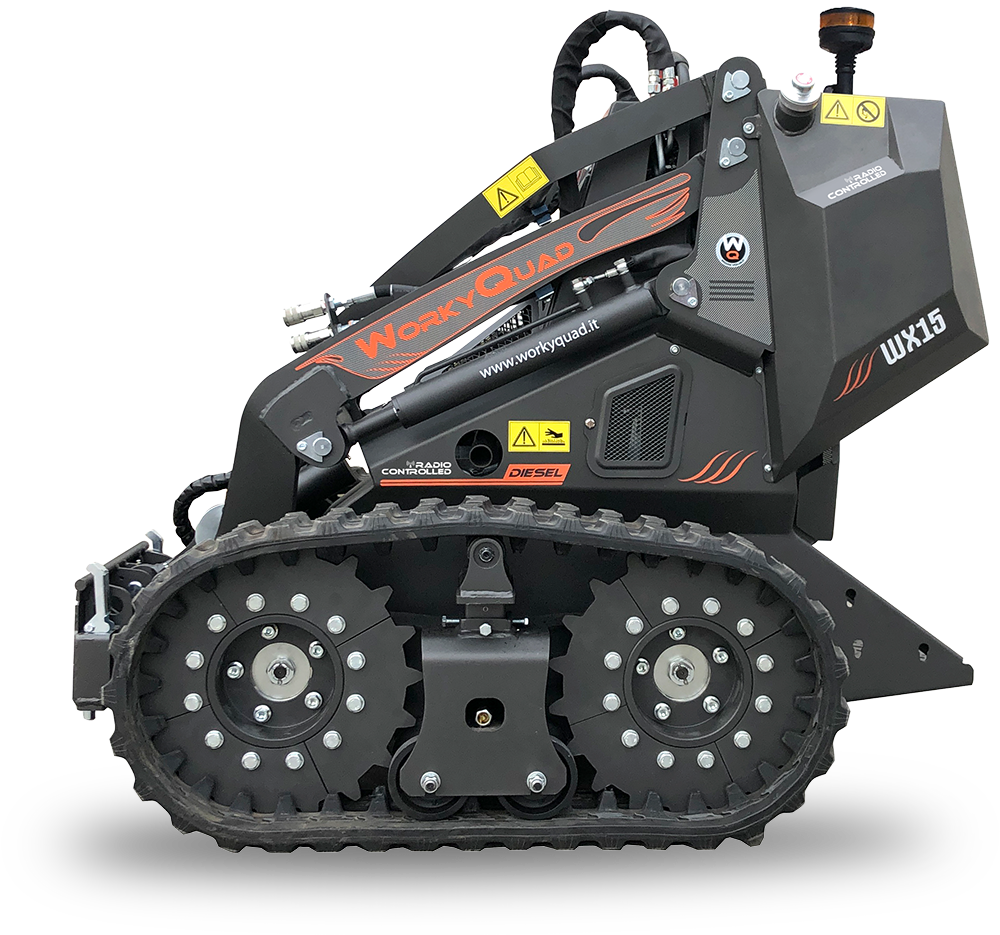

Related Machines
