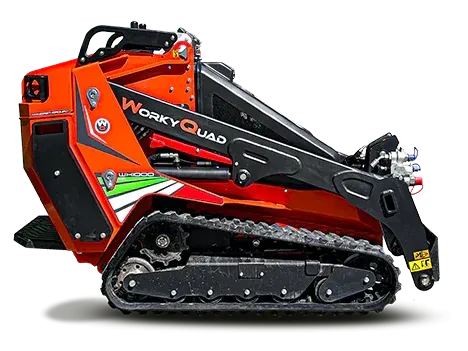

WorkyQuad wx1000 mini Skidsteer
WorkyQuad wx1000 mini Skidsteer
LIFTING
1285Kg
WITH COUNTERWEIGHTS
ENGINE POWER
25 HP
KUBOTA D1105
HYDRAULIC FLOW RATE
2x33L/min

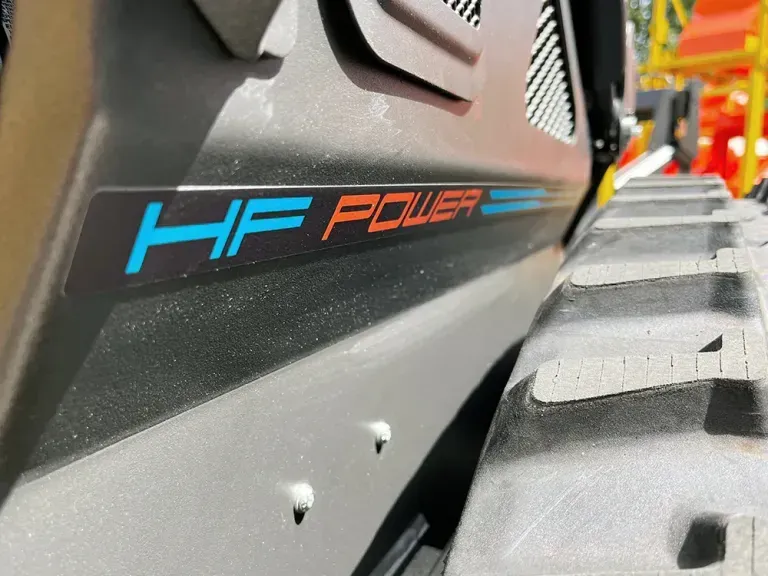

"HIGH FLOW" SYSTEM
The WX1000 packs all the most advanced technology into a compact and streamlined design. Every detail is optimized to ensure high performance, featuring a powerful 25 HP engine, dual High Flow pumps at 33 l/min, and smart technical solutions. Maximum efficiency, minimal footprint.
SPECIFICATIONS
| wx1000 WORKYQUAD | SPECIFICATIONS |
|---|---|
| Engine | Kubota D1105 |
| Power HP/Kw | 25/18.7 |
| RPM | 3000 |
| Ignition | Electric |
| Cooling system | Liquid |
| Fuel | Diesel |
| Drive System | Hydrostatic Transmission |
| Hydraulic flow rate l/min | 2 x 33 |
| Speed | 0-6 (proportional) |
| Track | 200/300 |

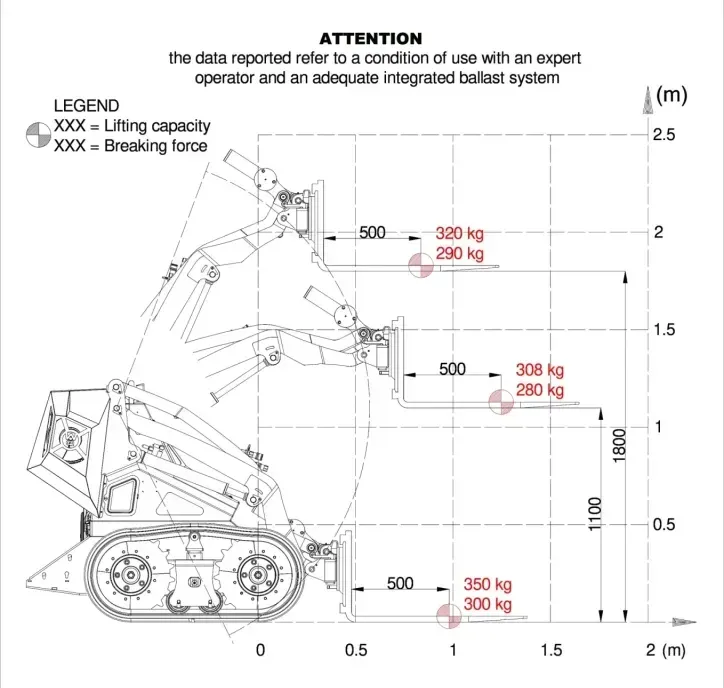

| Tipping Load (kg) | 1285 |
| Weight (empty) (kg) | 1350 |
| Dimensions ( L mm x W mm x H mm) | 2160 x 910 x 1420 |

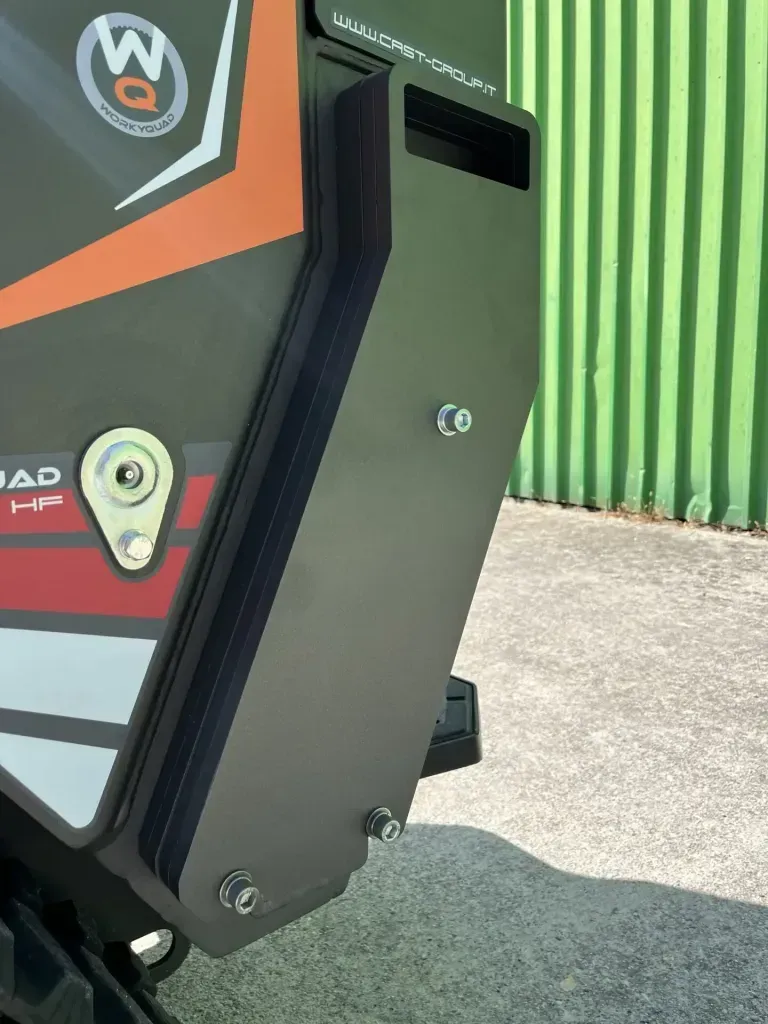

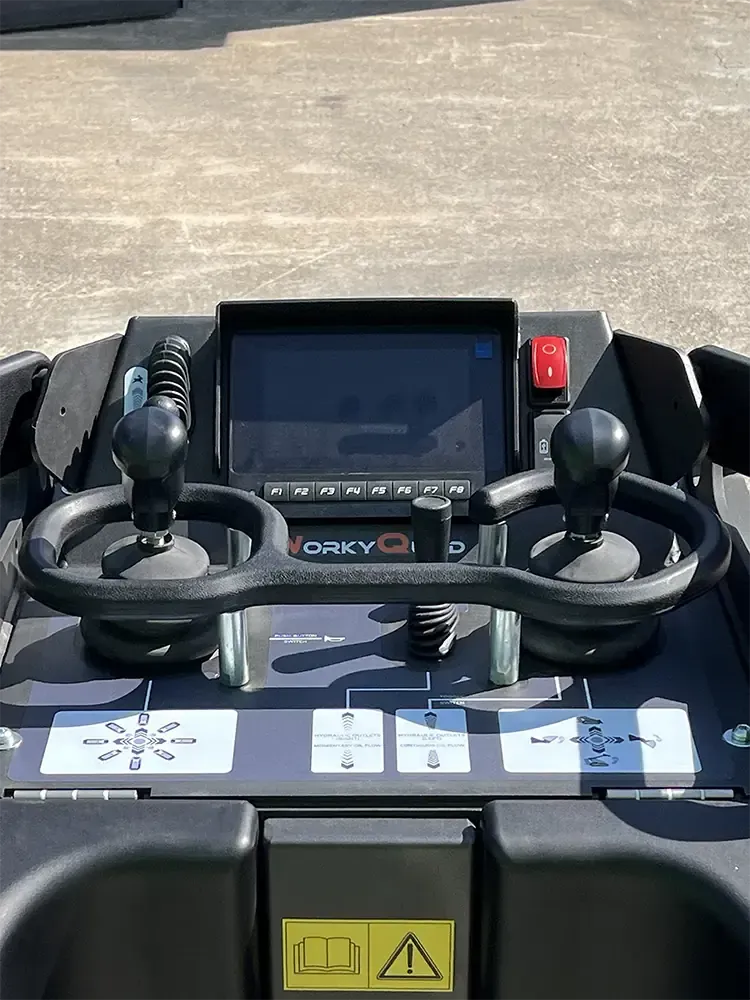

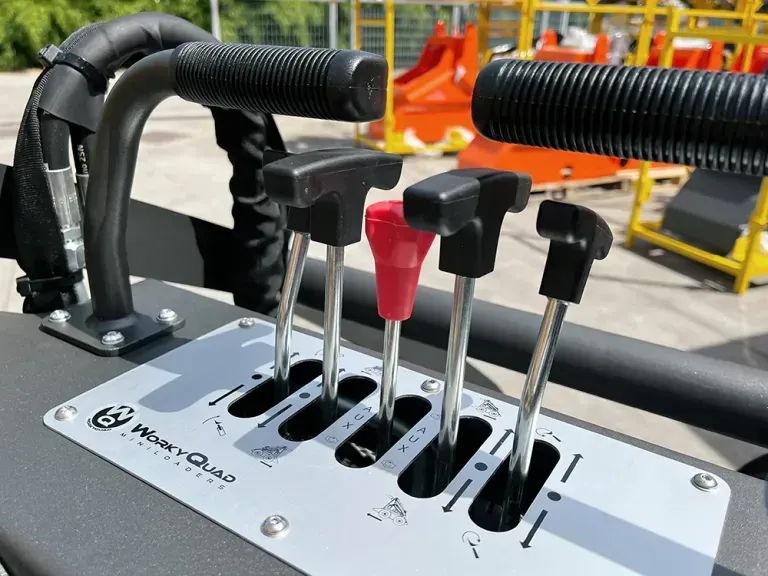

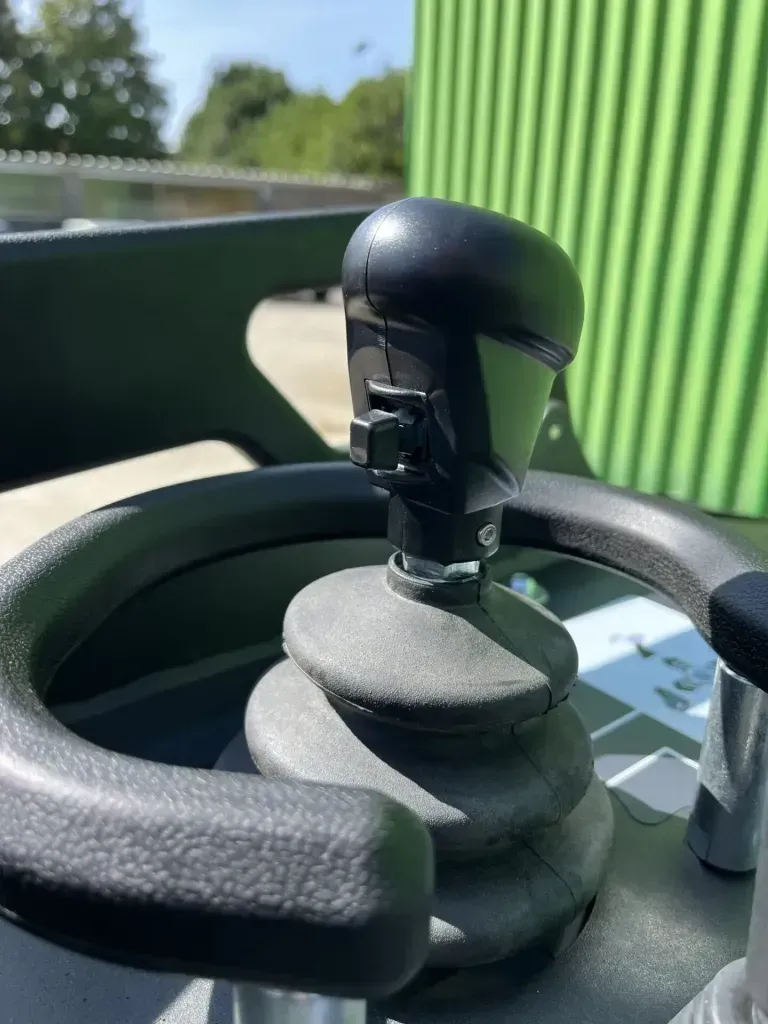

WorkyQuad WX 1000 Features

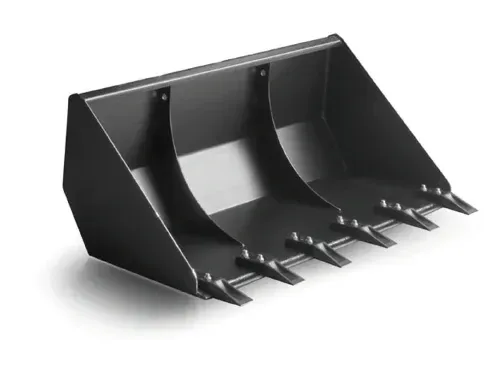

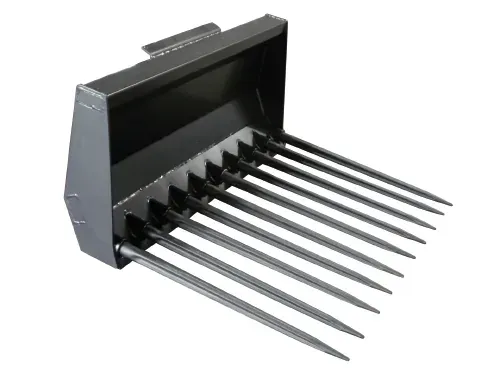

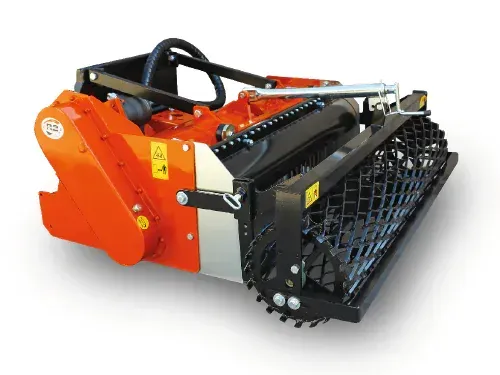

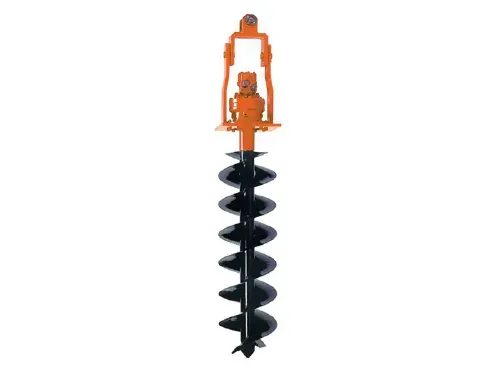

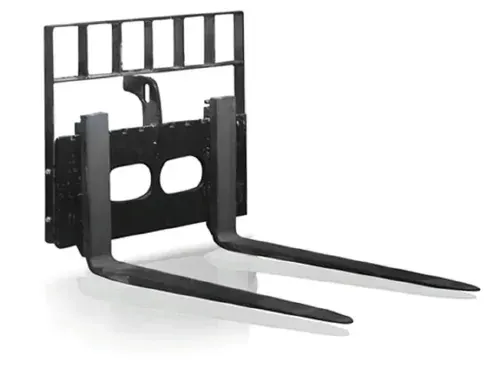

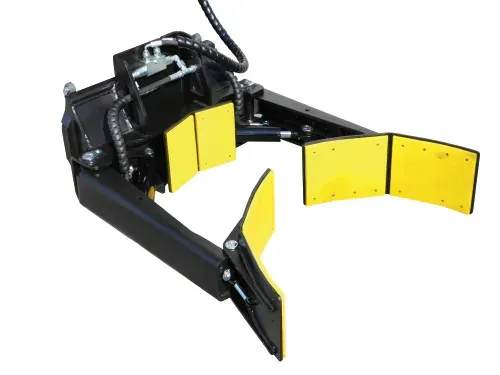

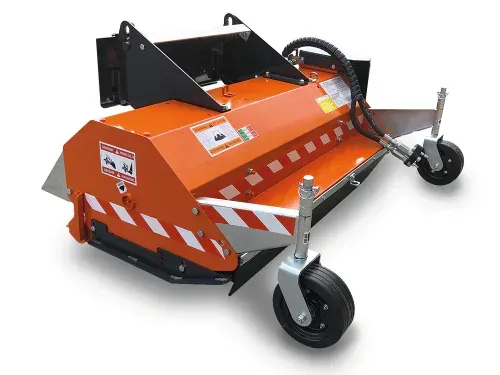

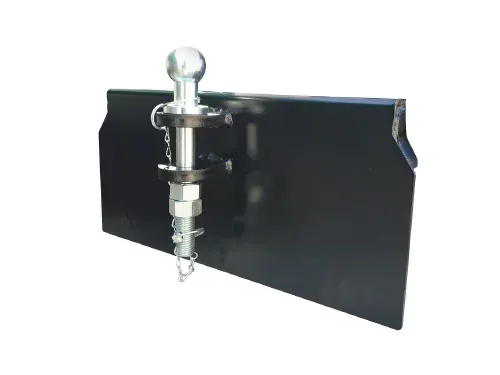

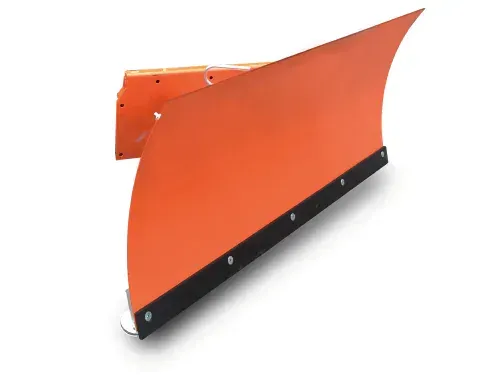

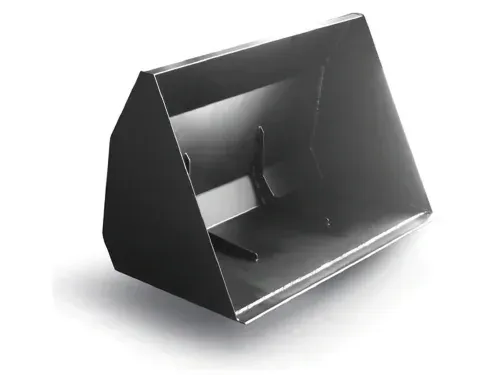

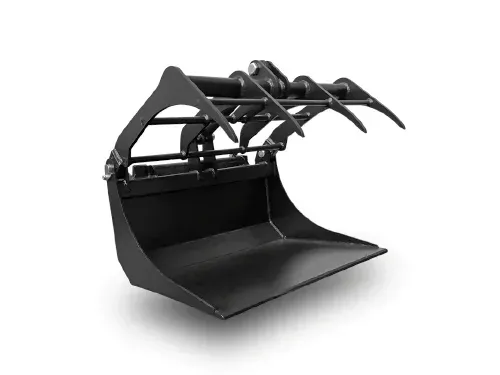

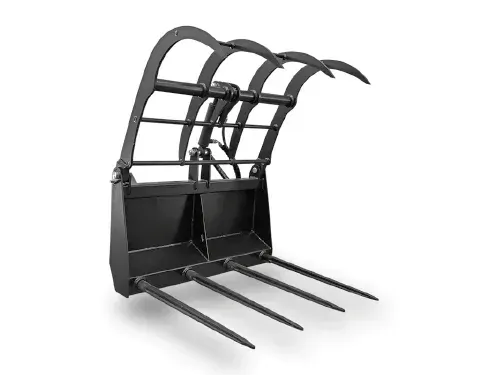

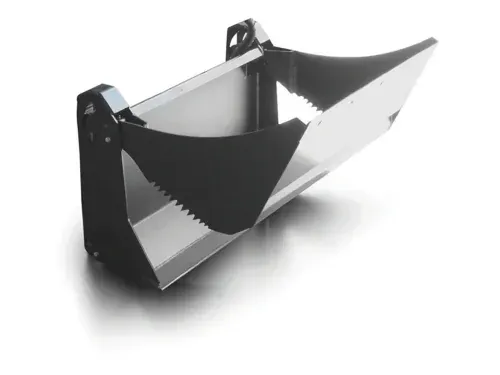

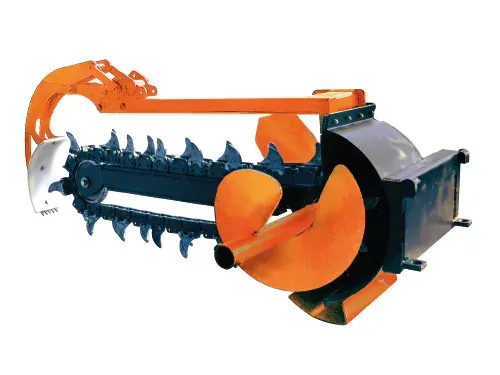

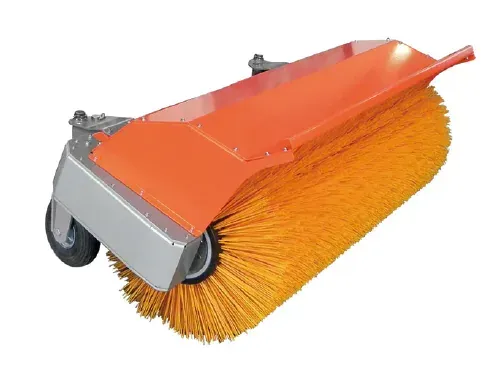

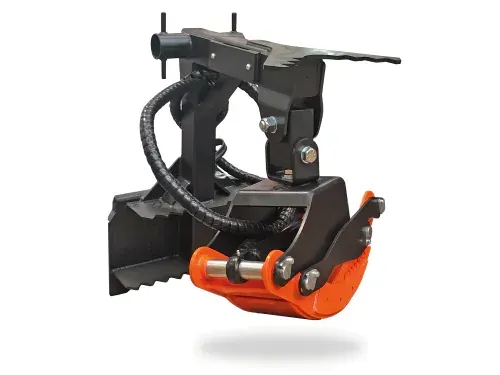

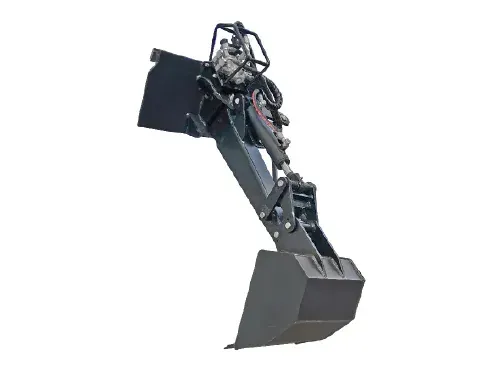

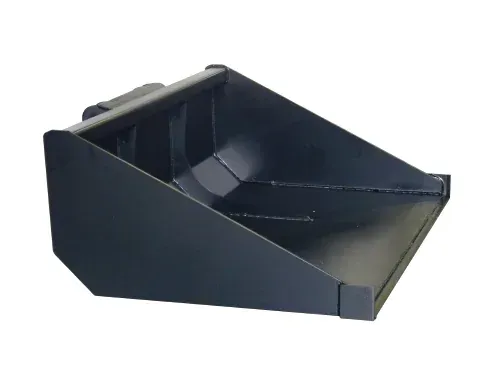

Available Attachments

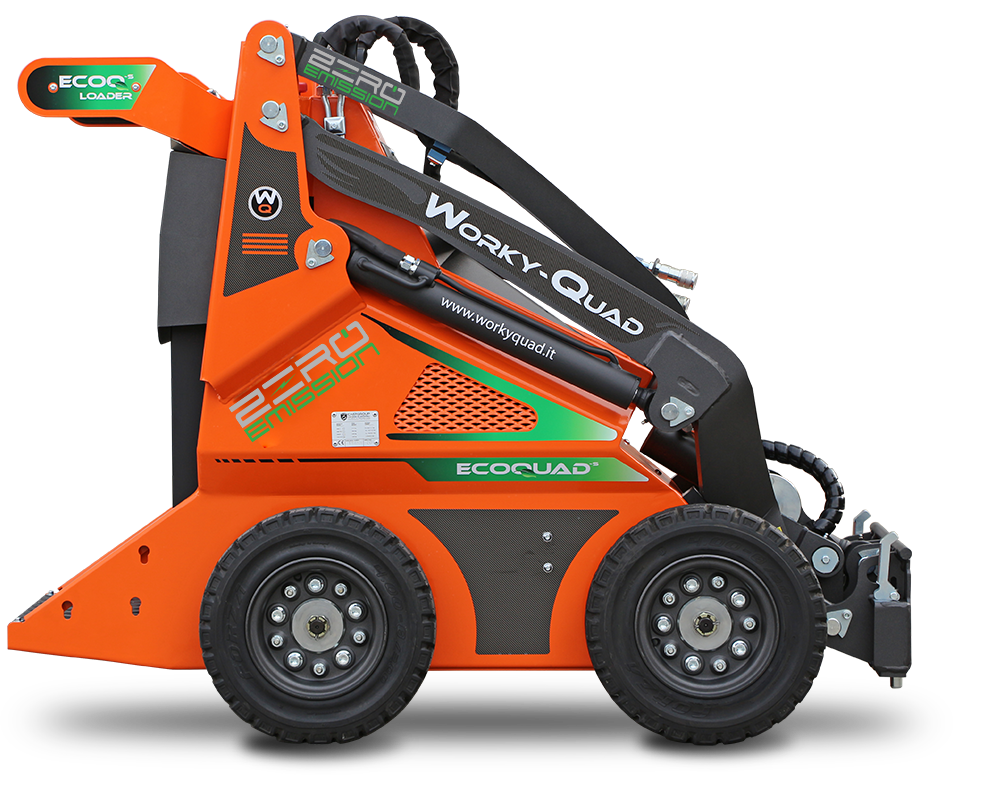

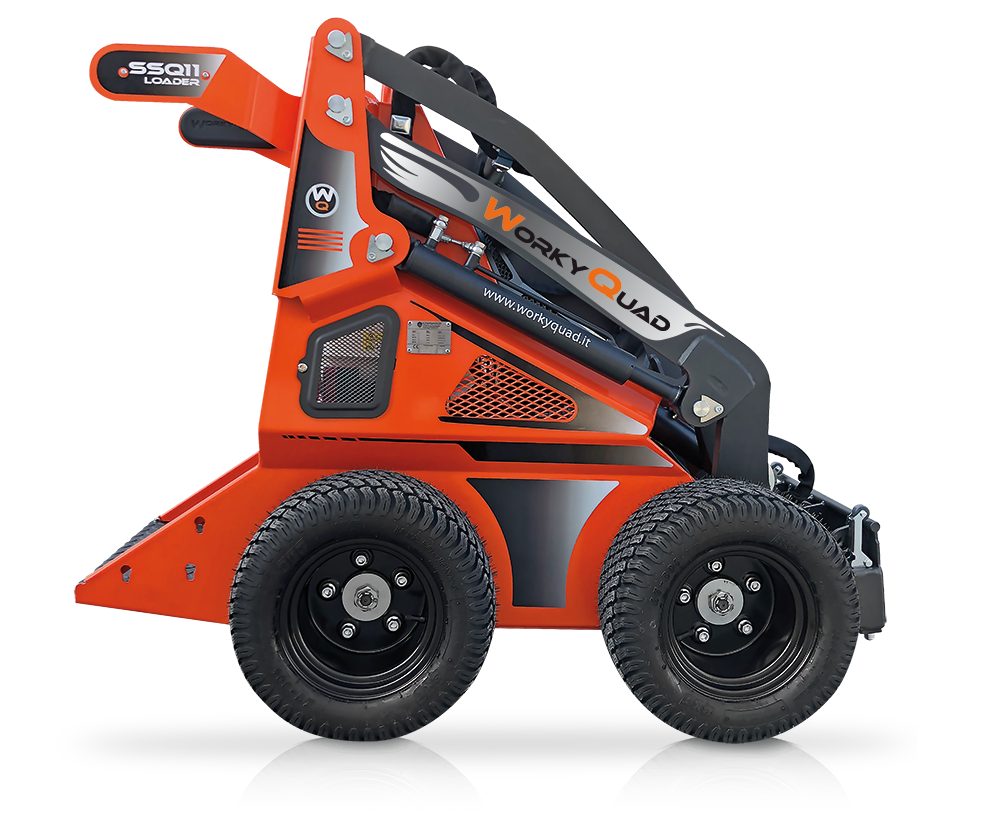

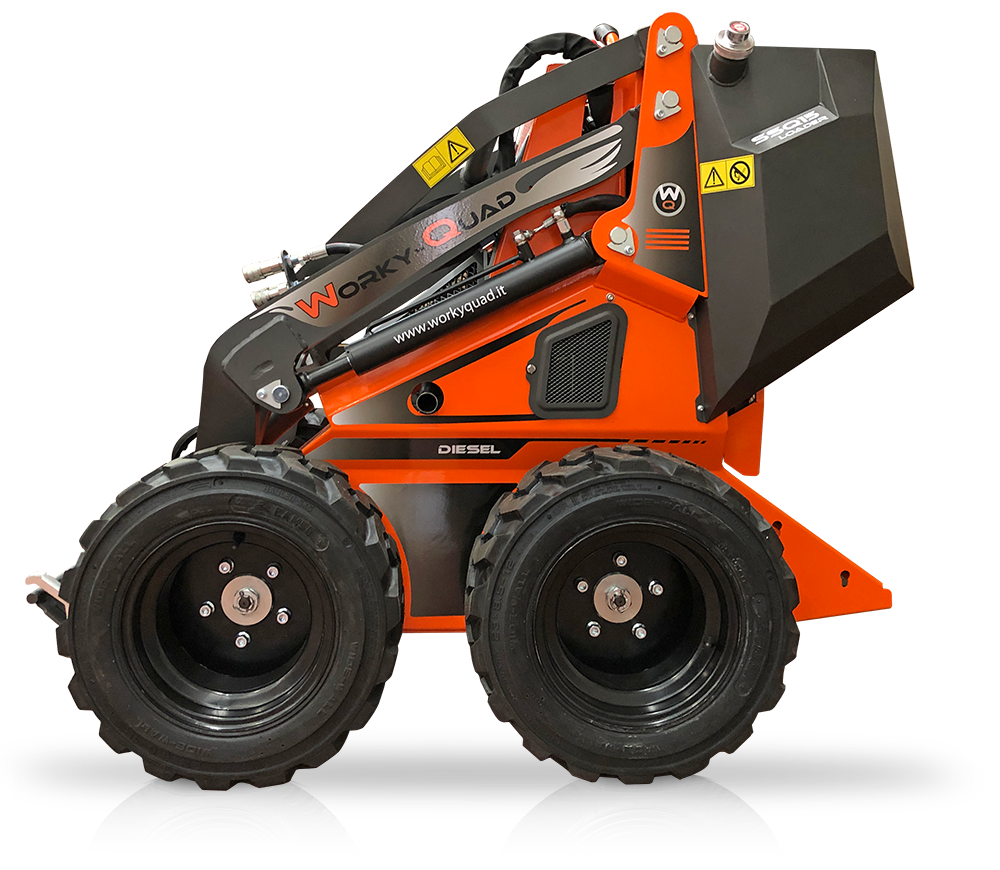

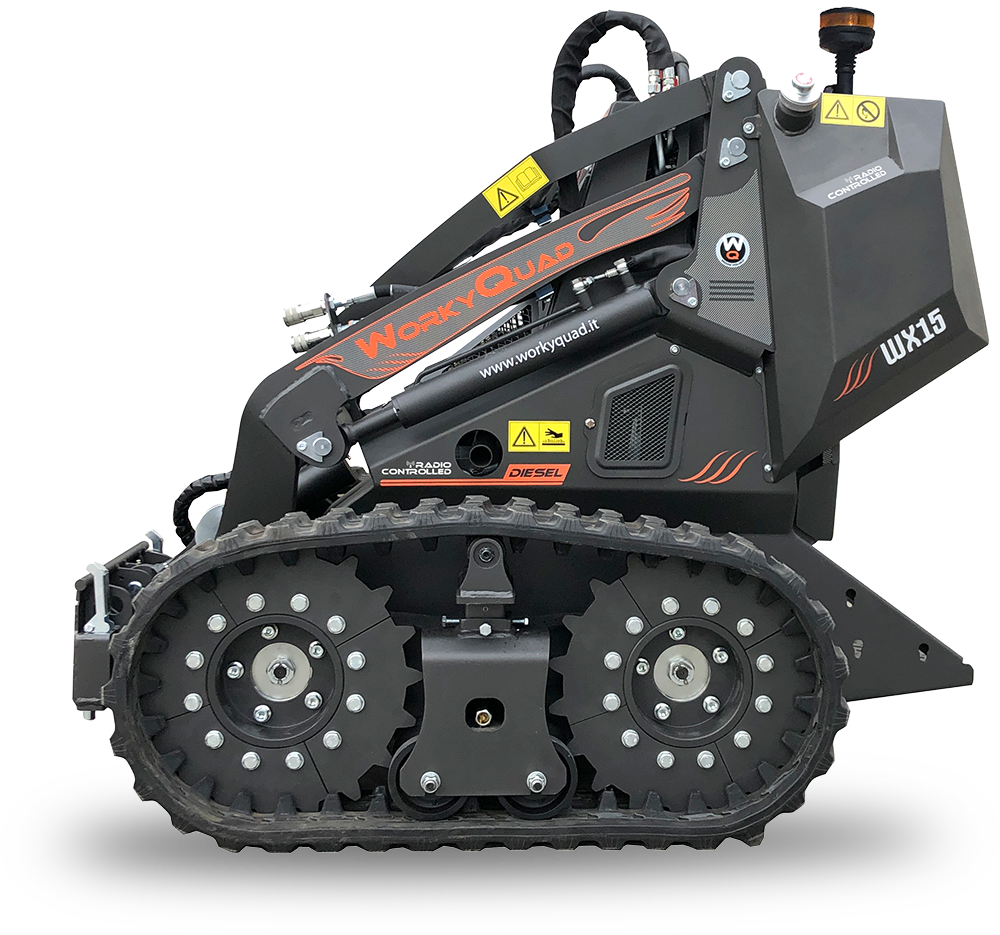

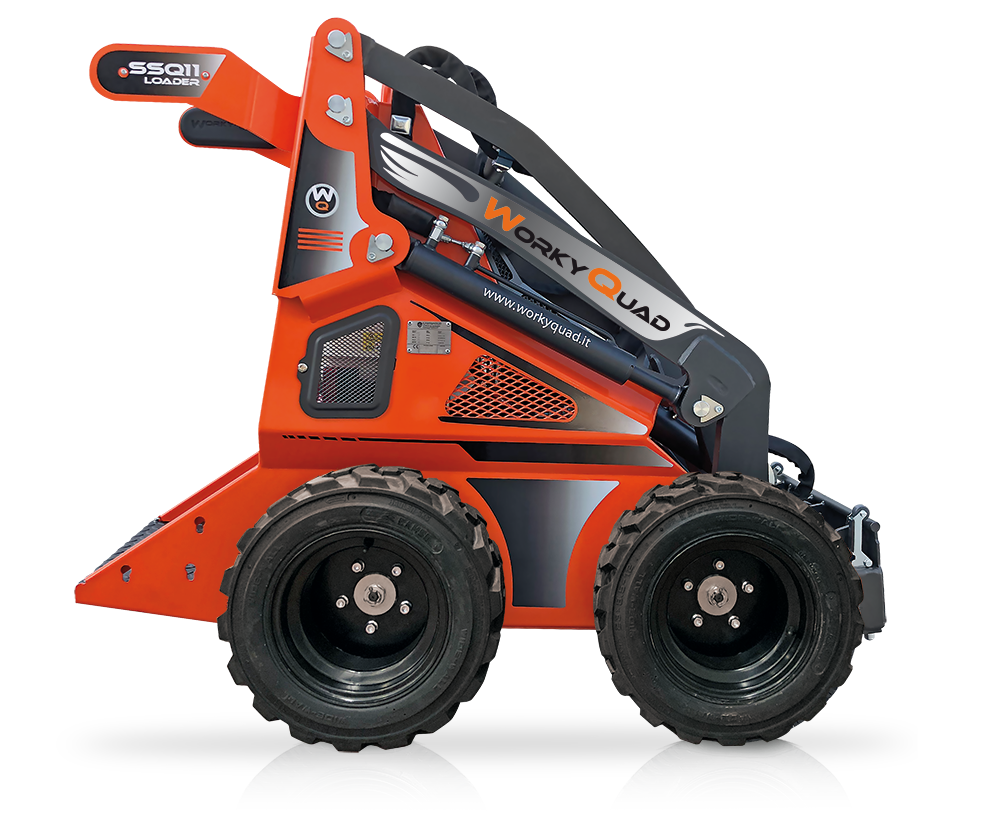

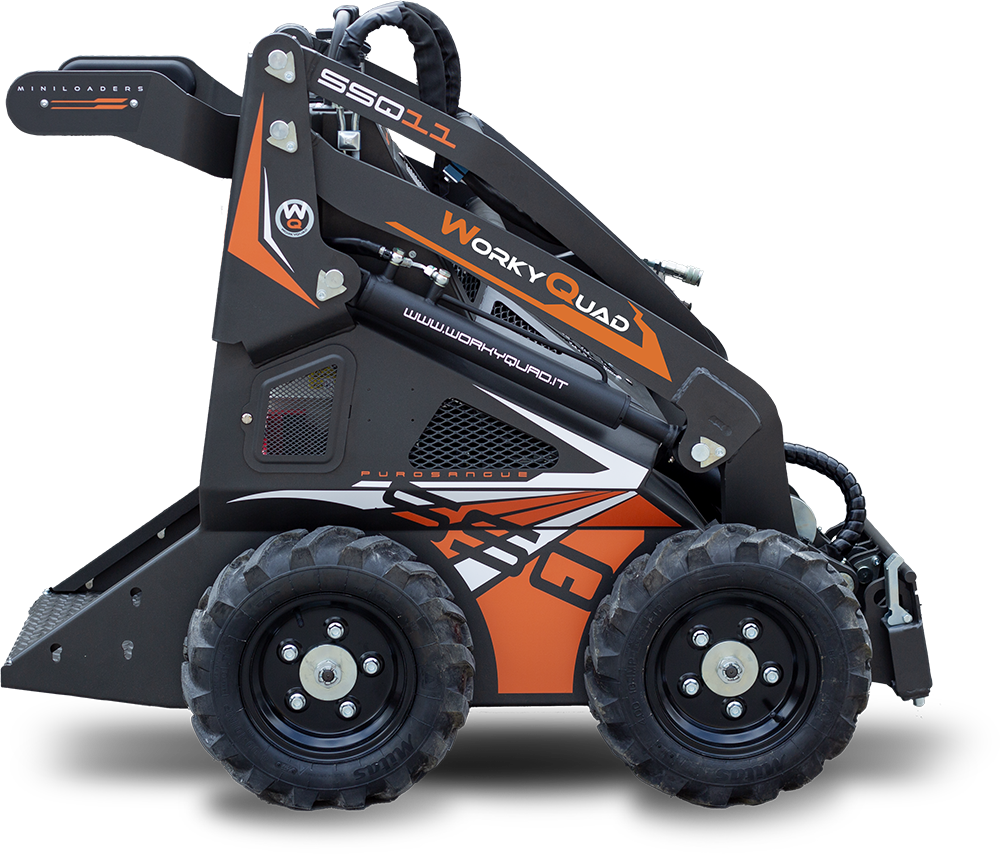

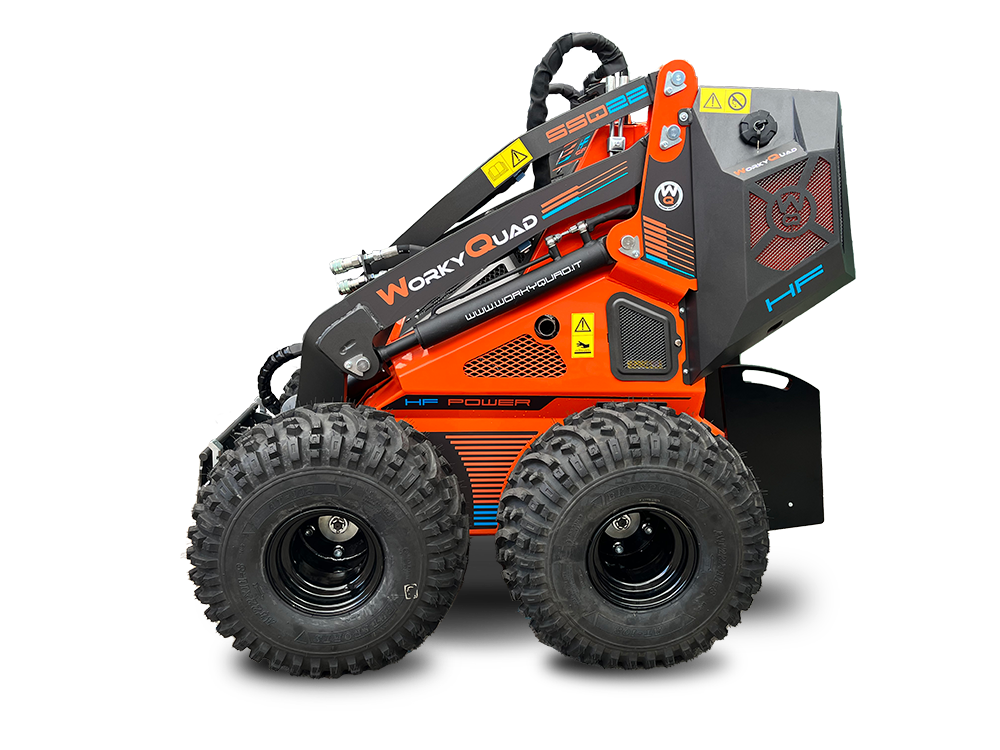

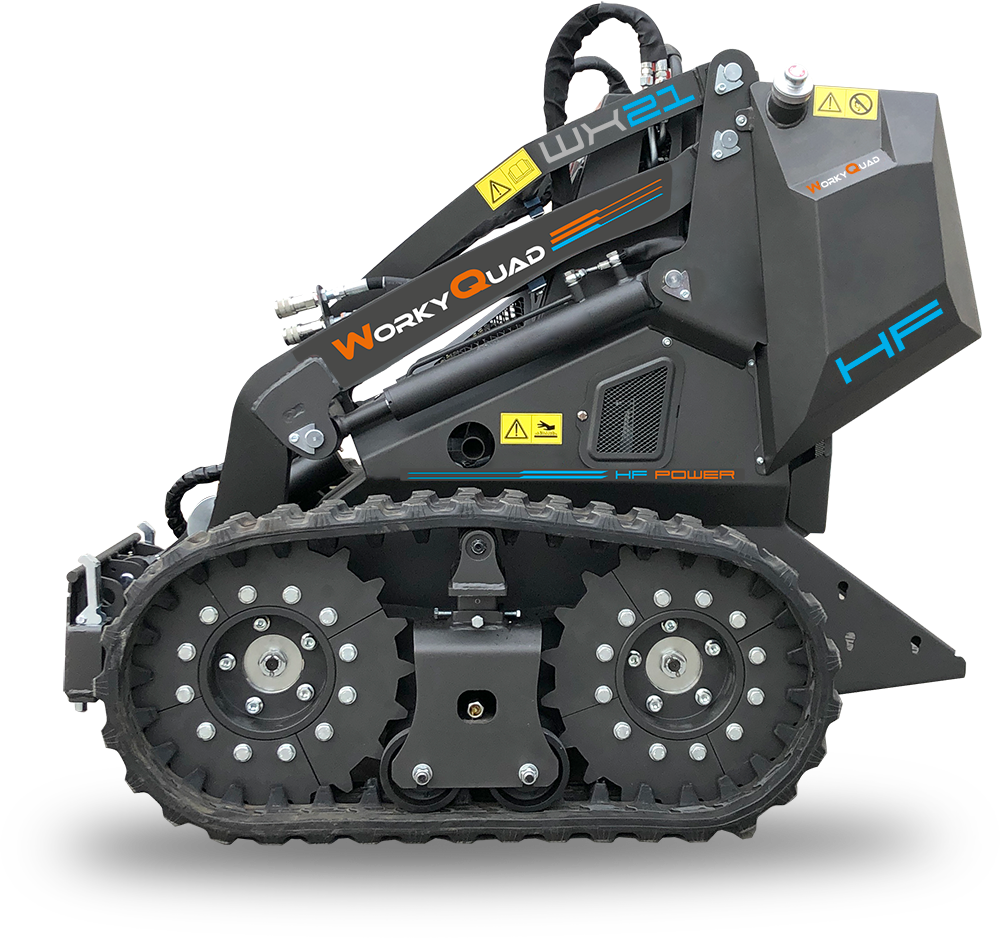

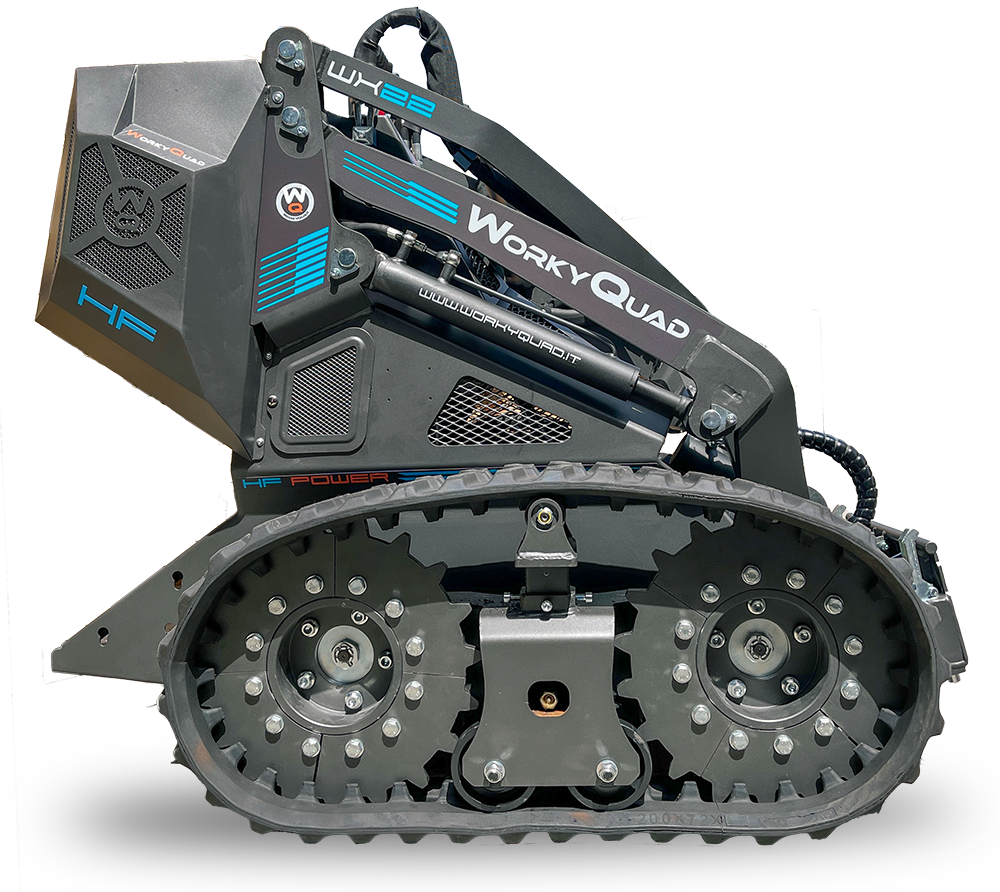

Related Machines
