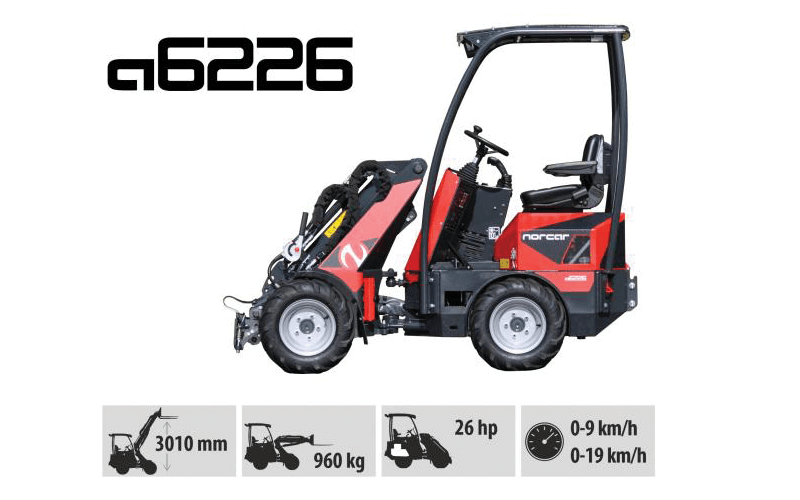

NORCAR a6226 MINILOADER for Hire
NORCAR a6226 MINILOADER for Hire
The Norcar a6226 is the fourth Miniloader in the Norcar wheeled Miniloader range and is a machine for professional use. Although compact, it has a high spec as standard and versatile hydraulics. As with all Norcars, its heavy duty build and design includes a centred lifting extension boom reaching great heights whilst maintaining power, welded frame and metal engine hood and covers. Equipped with dual working hydraulic pumps, the machine is compatible with attachments requiring high oil flow. Moreover, several functions can be used simultaneously without affecting each other, which makes work more efficient.
It is available for hire with various attachments -
Forks, Bucket, Silage Forks and Log Grab.

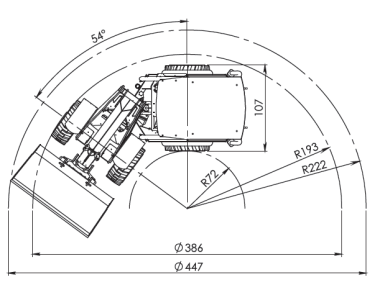

Turning Radius

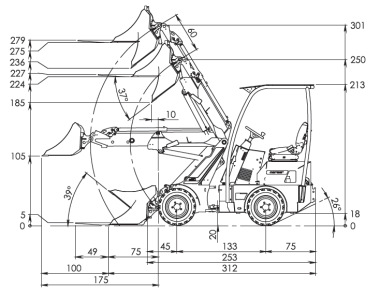

Loading Height

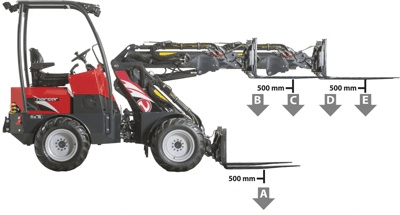

Tipping Load
| Tipping load | +extra weight 270kg | |||
|---|---|---|---|---|
| Tipping load with pallet fork | Straight | Articulated | Straight | Articulated |
| A. Transport position, kg | 940 | 640 | 940 | 780 |
| B. Boom horizontal, kg | 1180 | 790 | 1200 | 980 |
| C. Boom horizontal, kg | 850 | 510 | 1100 | 660 |
| D. Boom horizontal+ extension, kg | 710 | 440 | 800 | 570 |
| E. Boom horizontal + extension kgal, kg | 550 | 340 | 730 | 425 |
Specifications
| Engine | |
|---|---|
| Make | Kubota |
| Model | 1105 |
| Cylinders | 3 |
| Fuel type | Diesel |
| Cylinder volume (cm³) | 1123 |
| Cooling system | Fluid |
| Power | |
|---|---|
| SAE, gross power (kW/hp) | 19,4/26,4 |
| Max gross torque (Nm) | 72 |
| At engine speed (r/min) | 2200 |
| Max engine speed without load (r/min) | 3000 |
| Electrical System | |
|---|---|
| Battery (V-Ah) | 12 - 53 |
| Generator (A) | 40 |
| Service Volumes | |
|---|---|
| Cooling System (l) | 6 |
| Engine Oil (l) | 4.5 |
| Fuel Tank (l) | 20 |
| Hydraulic Tank (l) | 50 |
| Hydraulic System Total Volume | 55 |
| Performance | |
|---|---|
| Lifting Power Hydraulic (kg) | 1250 |
| Breakout force 50cm (kg) | 960 |
| Tipping load, straight (kg) | 1150 |
| Tipping load, articulated (kg) | 770 |
| Operating weight (kg) | 1320 |
| Drive speed low (km/h) | 0-9 |
| Drive speed high (km/h) | 0-19 |
| Pulling force high (kg) | 550 |
| Pulling force low (kg) | 1100 |
| Hydraulic System | |
|---|---|
| Working Hydraulics (l/min) | (18+24) 42 |
| System pressure (bar) | 240 |
| Drivetrain hydraulics (l/min) | 63 |
| Drivetrain max system pressure (bar) | 350 |
| Cycle Times | |
|---|---|
| Raising boom (s) | 3.7 |
| Lowering boom (s) | 2.2 |
| Folding in bucket (s) | 2.6 |
| Tipping bucket (s) | 1.6 |
| Steering wheel rotations (L/R rev) | 3/4 |

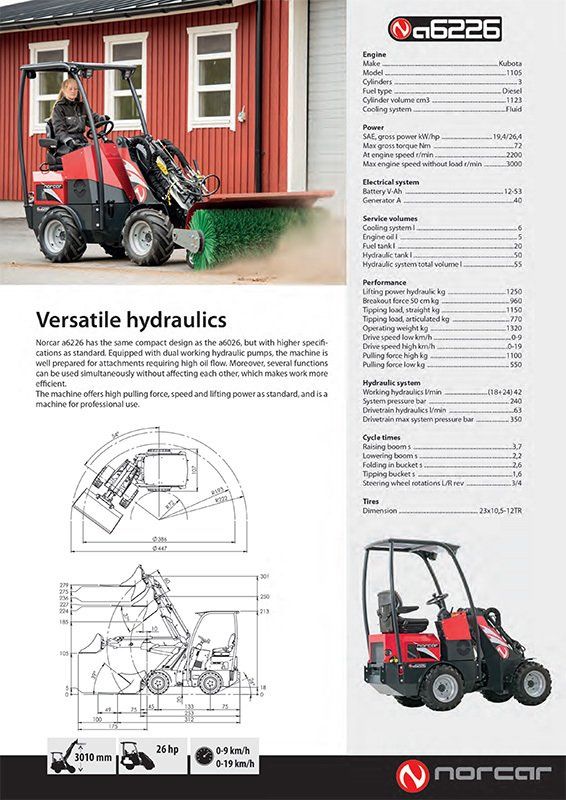

a6226 BROCHURE
NORCAR VIDEO
Hiring a machine from Green Plant
Hiring a machine from Green Plant
To hire one of the machines on our hire fleet (see range below), please give us a call on 01483 235111
to check availability. All you need to provide us with is a copy of your "Hired In Plant Insurance", which machine you want to hire, the dates you require the machine and your credit card details (if you don't have a Green Plant account).
If you would like to apply for an account, please download and print the Green Plant UK account application form below and send it back to us.
Don't forget to advise us if you also need to hire a trailer.
On the day of hire your allocated machine will be available to collect from 8:00am. Sometimes we can offer you the added benefit of picking up the machine the afternoon before at no extra charge (dependant on machine availability) so you can get an early start if you want to. Please call for details.
*All Hire machines MUST be returned by 4:30pm on the last day of the hire (or 4:00pm on a Friday)*

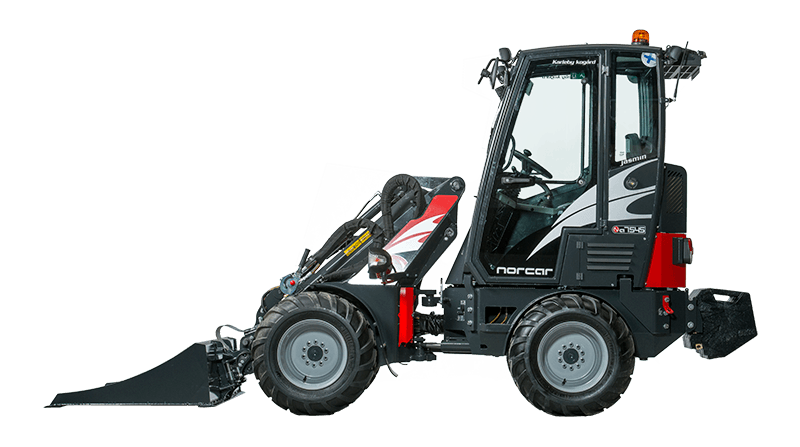

Other Norcar Hire Machines
