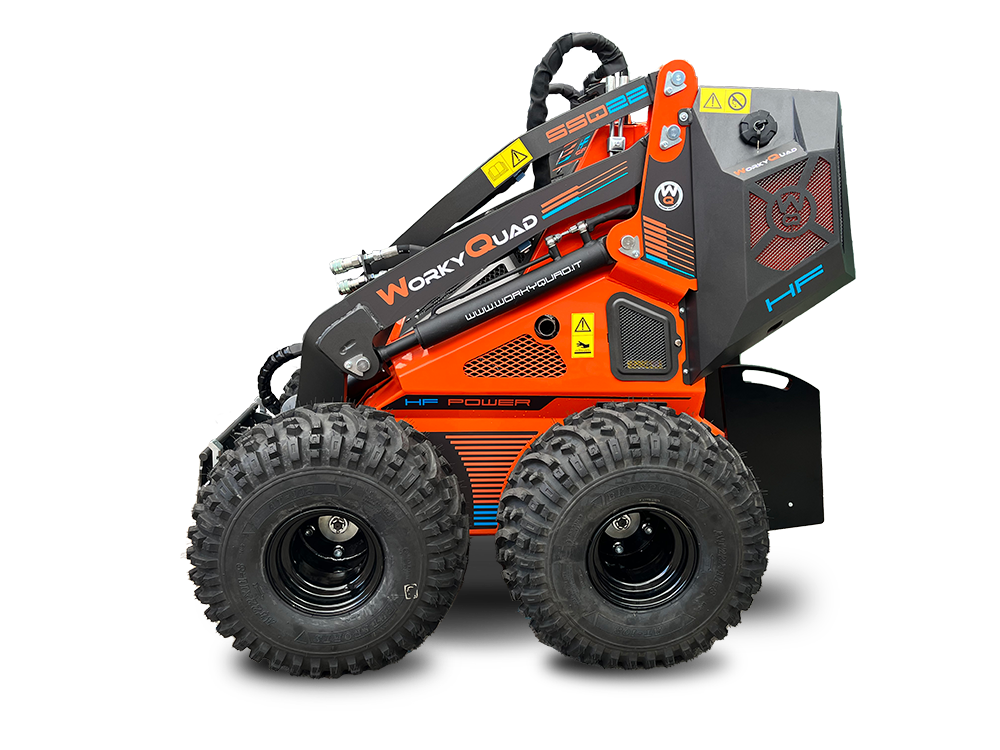

WorkyQuad SSQ22 HF

WorkyQuad SSQ22 HF mini Skidsteer

WorkyQuad SSQ22 HF Mini Skidsteer

LIFTING

350kG

WITH COUNTERWEIGHTS

ENGINE POWER

22,1HP

HONDA GX690

HYDRAULIC FLOW RATE

40L/min

'HIGH FLOW' SYSTEM

The WorkyQuad SSQ22 HF mini skid steer offers exceptional power and fluidity, thanks to the new system that allows greater hydraulic flow.

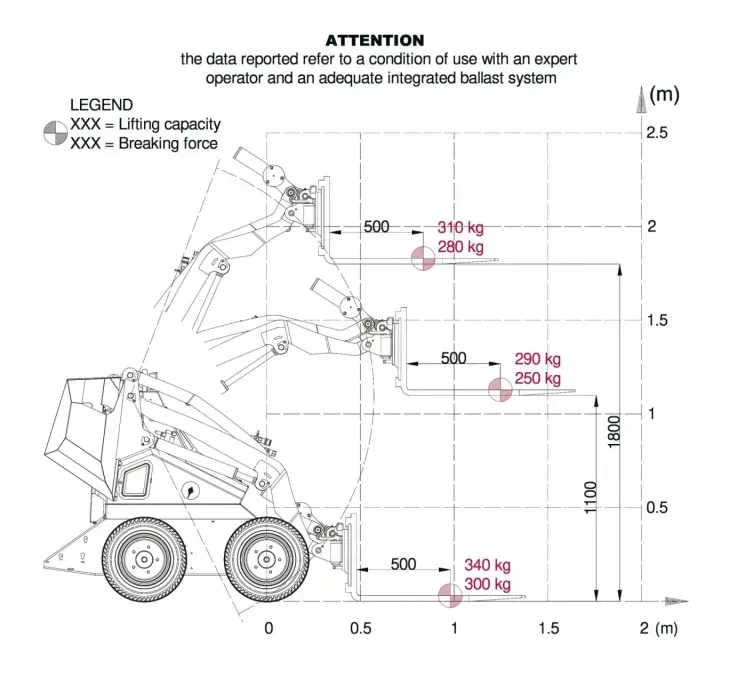

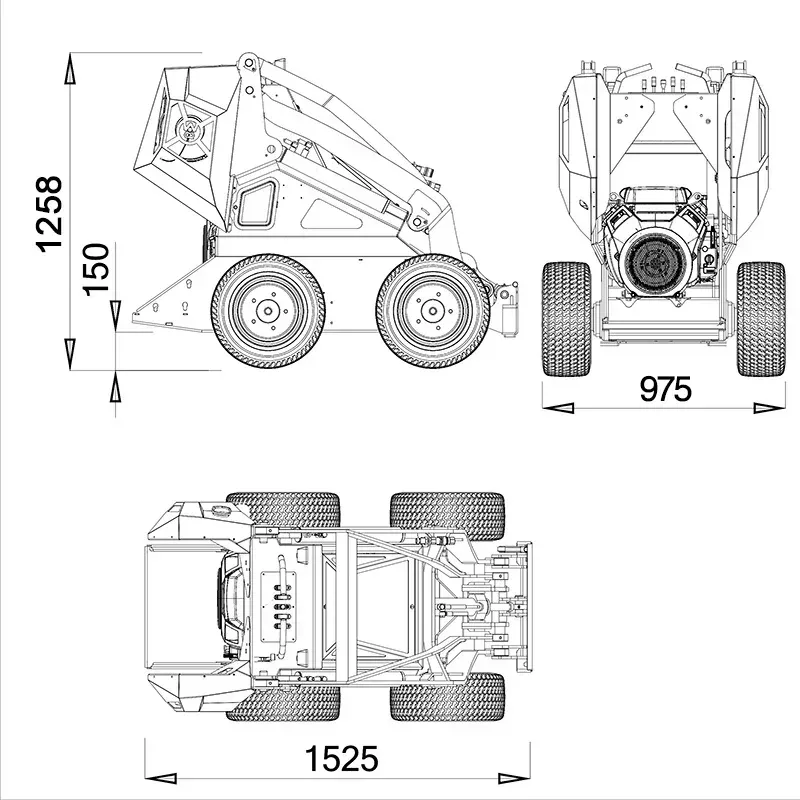

Dimensions

WorkyQuad SSQ22 HF dimensions
WorkyQuad SSQ22 HF Dimensions

Specifications

SSQ22 HF SPECIFICATIONS
Engine HONDA GX690
Power HP/Kw 22,1
RPM 3600
Ignition Electric
Cooling system Air
Fuel Petrol (Euro95)
Drive System Hydraulic with 4WD
Hydraulic flow rate l/min 40
Speed 0-7(proportional)
"AllTrak" Tyres 22x11.00-8
Lifting capacity Kg 350 (with counterweights)
Traction capacity Kg 500 (with counterweights)
Tear-off force Kg 330
Dimensions ( L mm x W mm x H mm) 1525 x 975 x 1258
Weight Kg (empty) 630

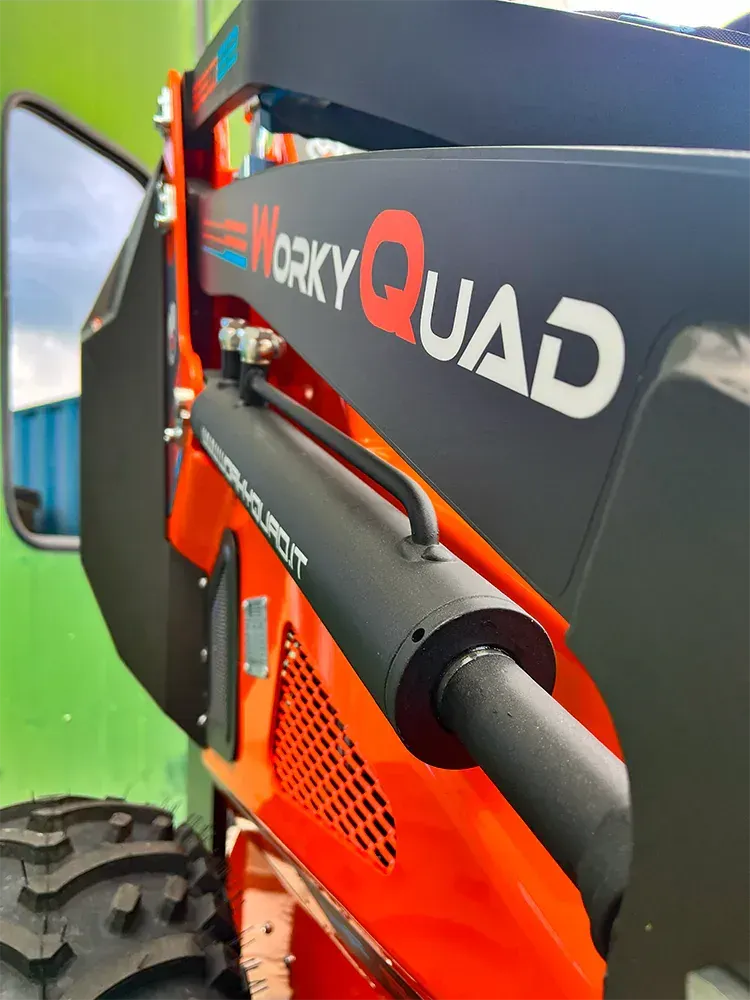

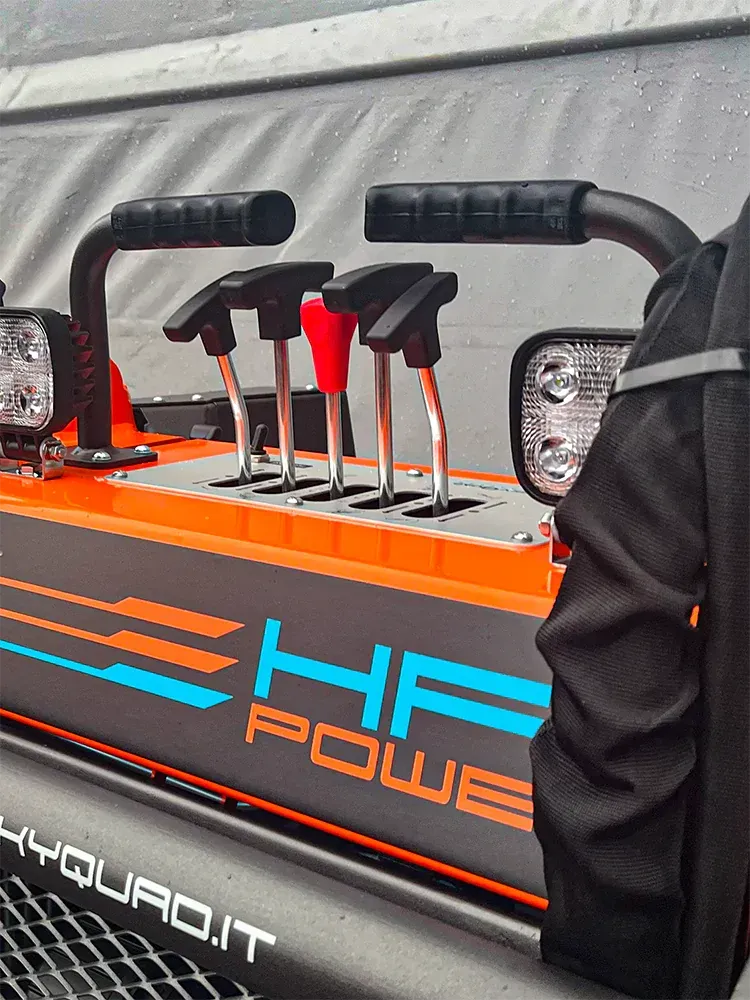

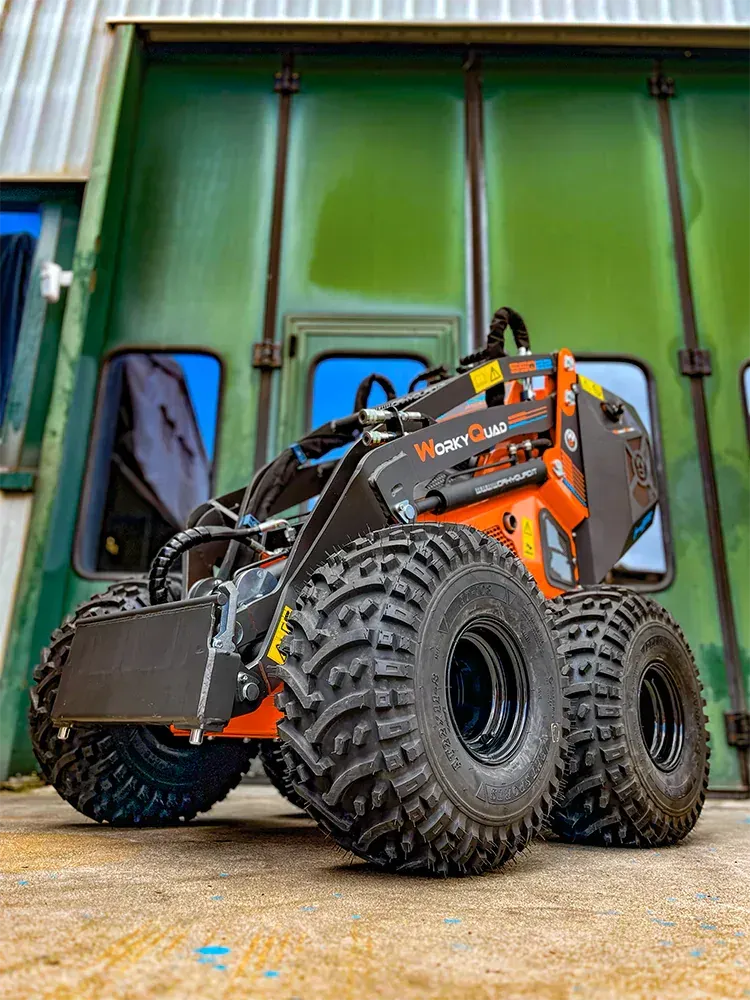

WorkyQuad SSQ22 HF Features

WorkyQuad SSQ22 HF features
WorkyQuad SSQ22 HF features
WorkyQuad SSQ22 HF features

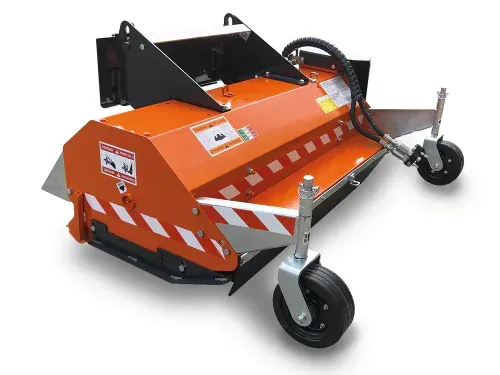

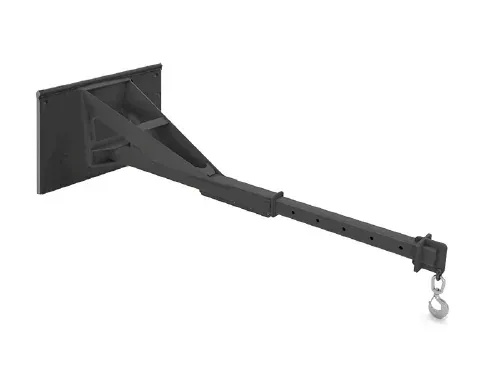

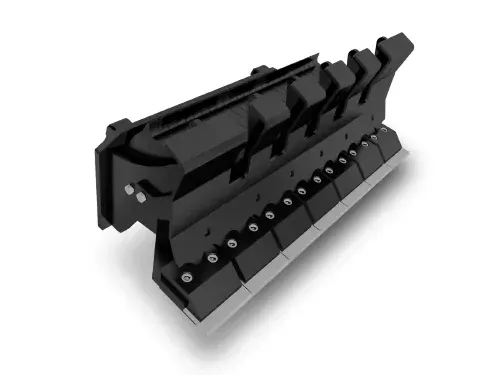

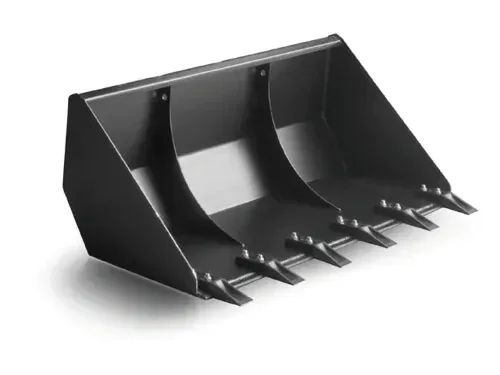

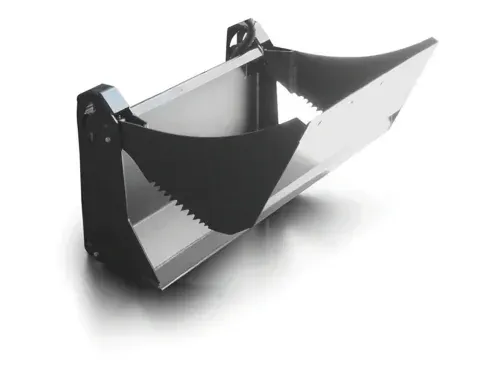

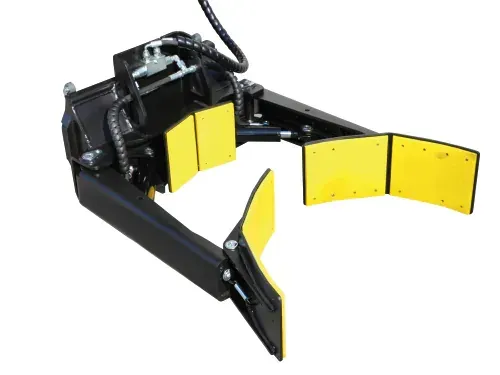

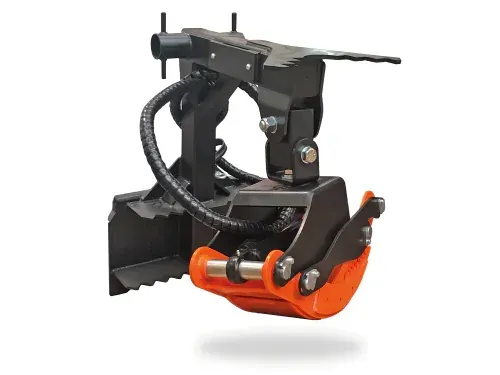

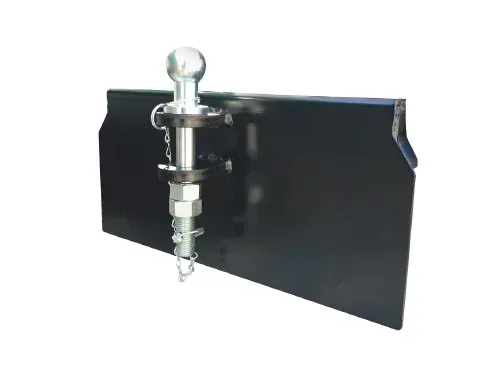

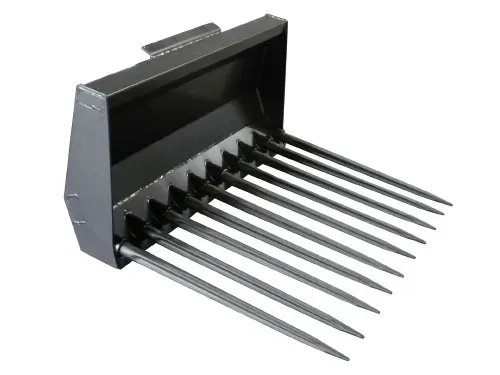

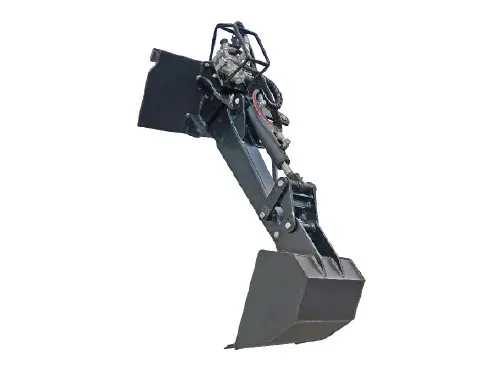

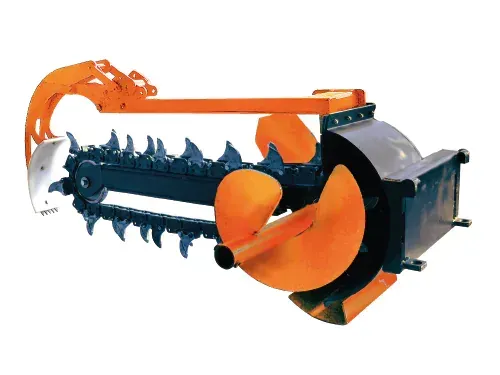

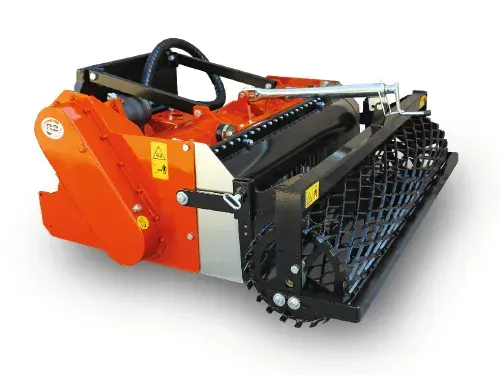

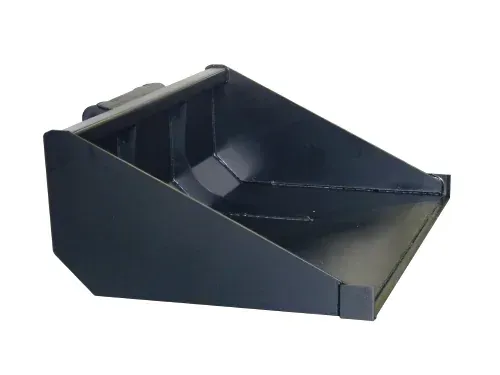

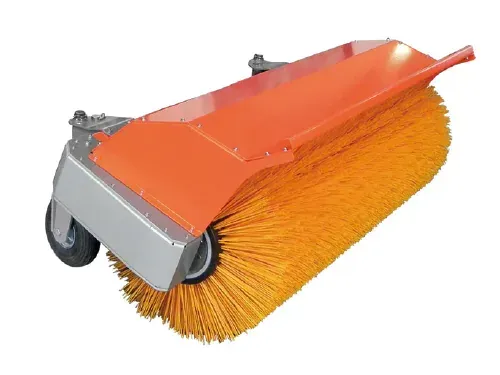

Available Attachments

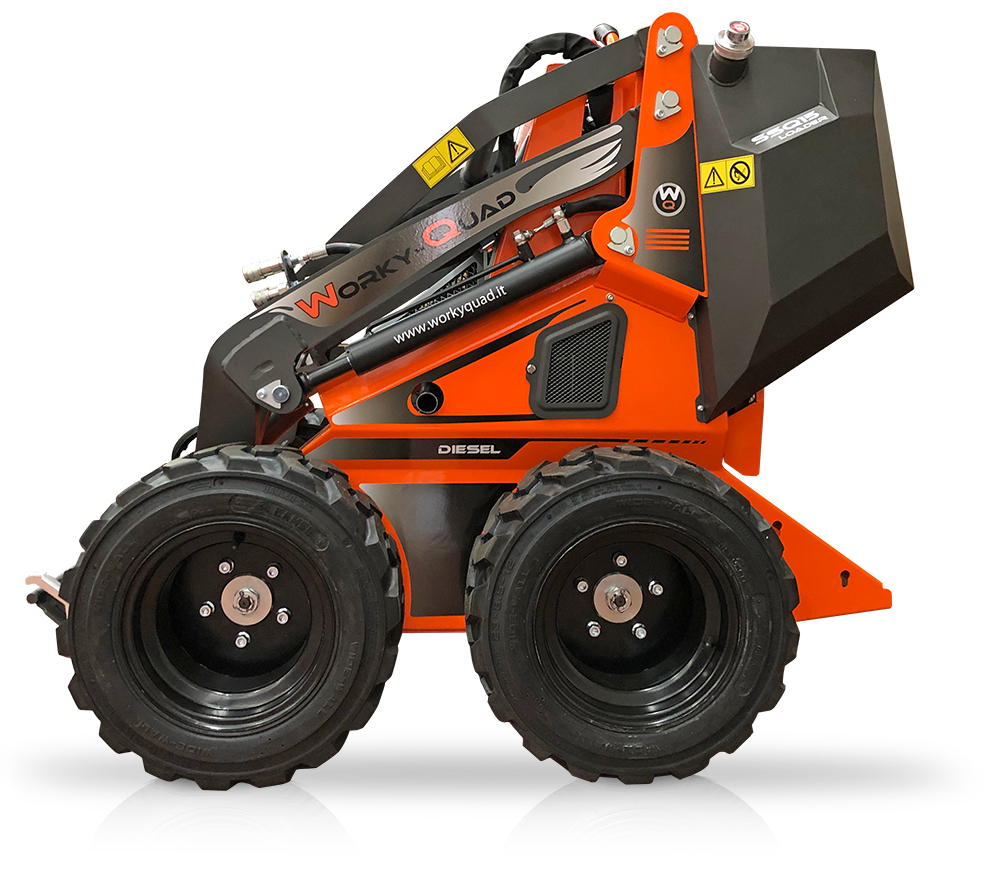

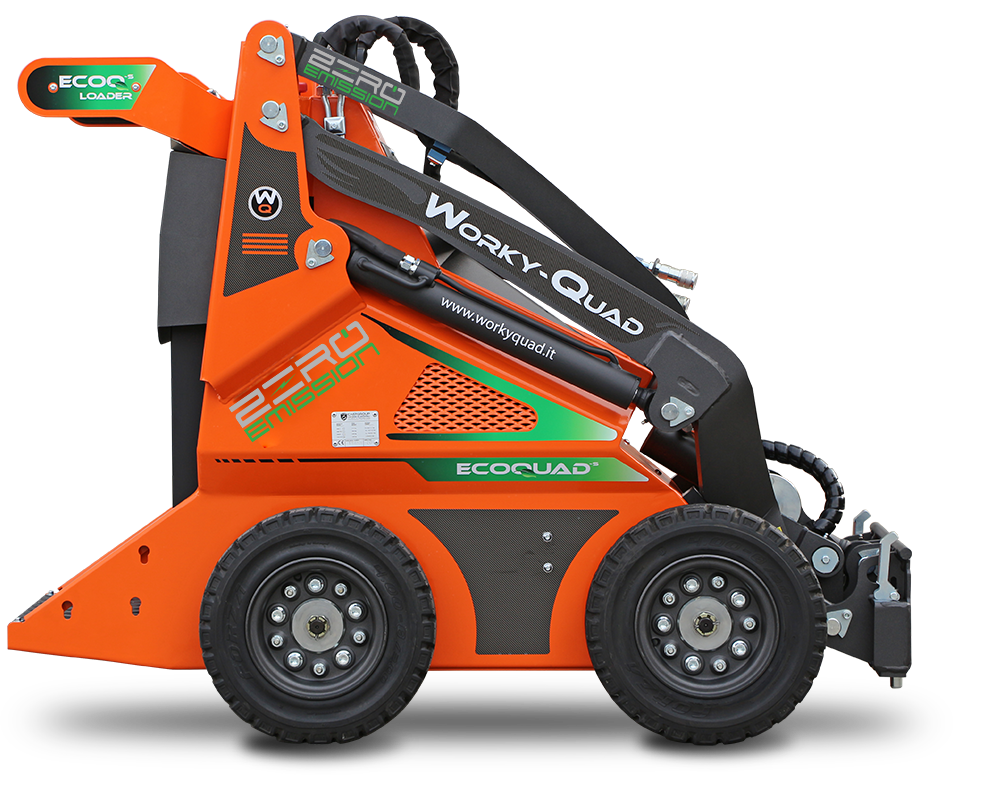

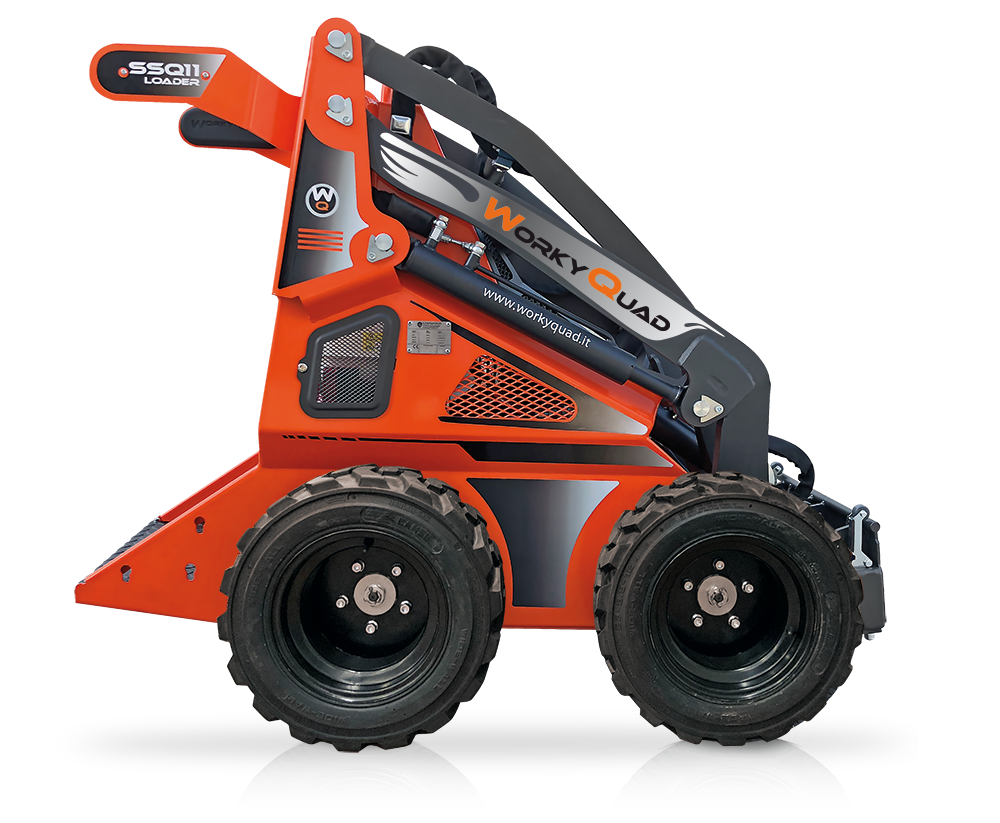

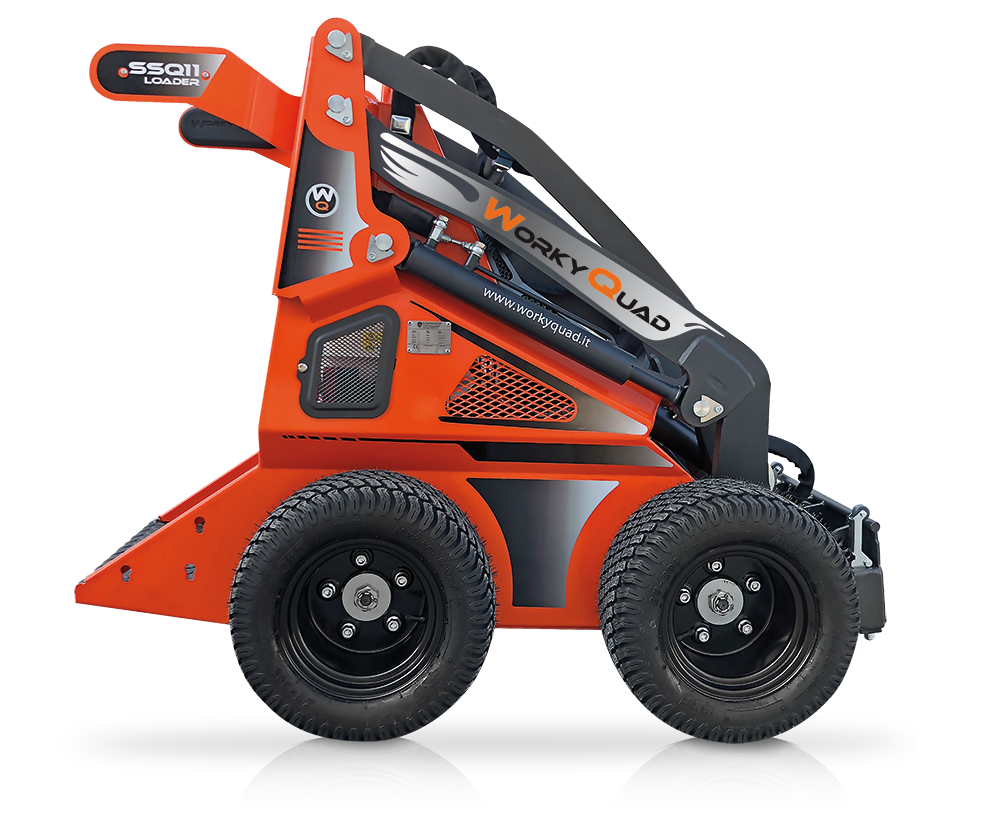

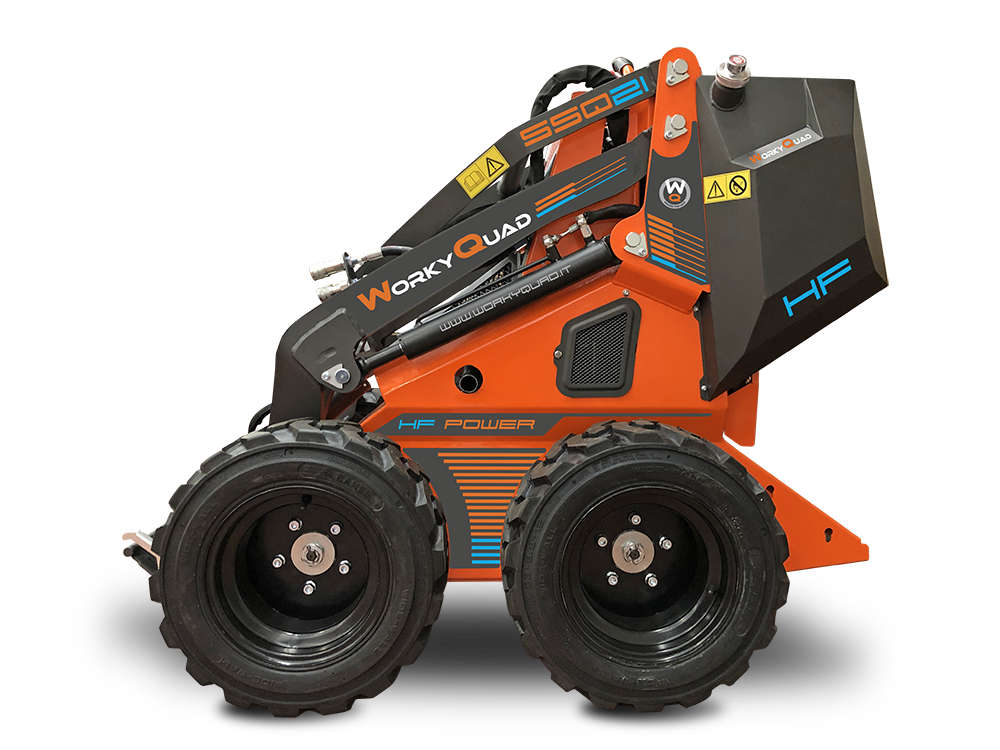

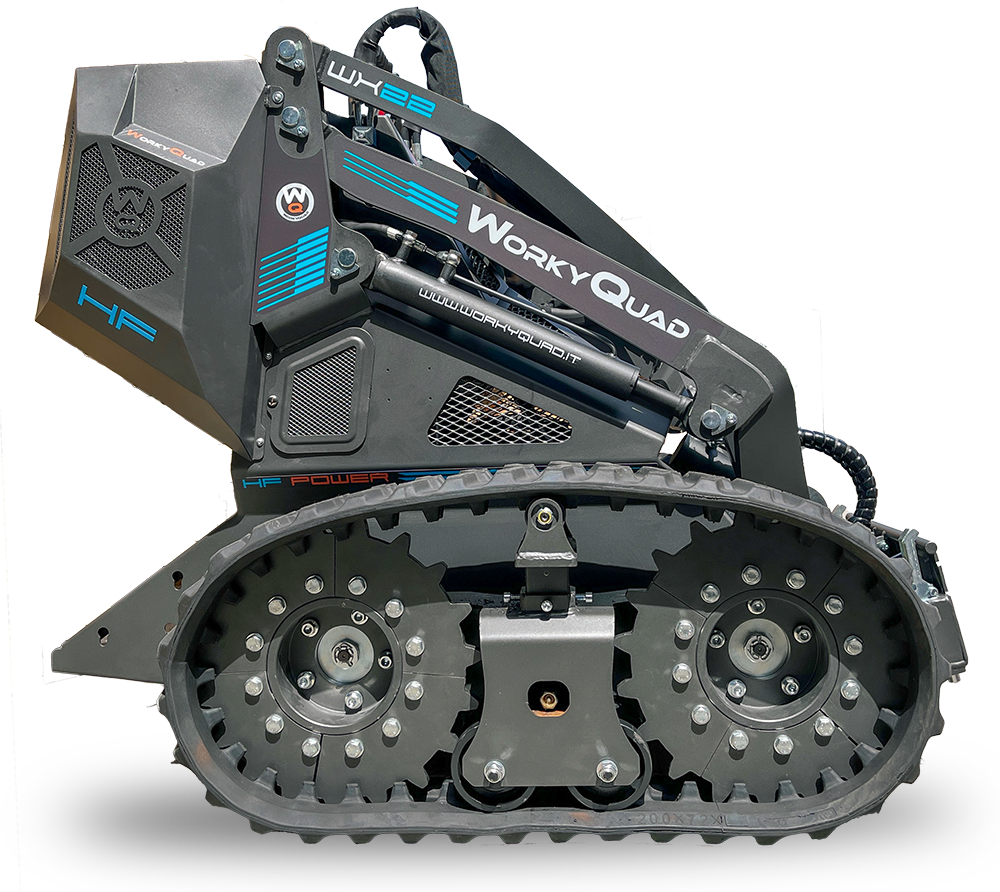

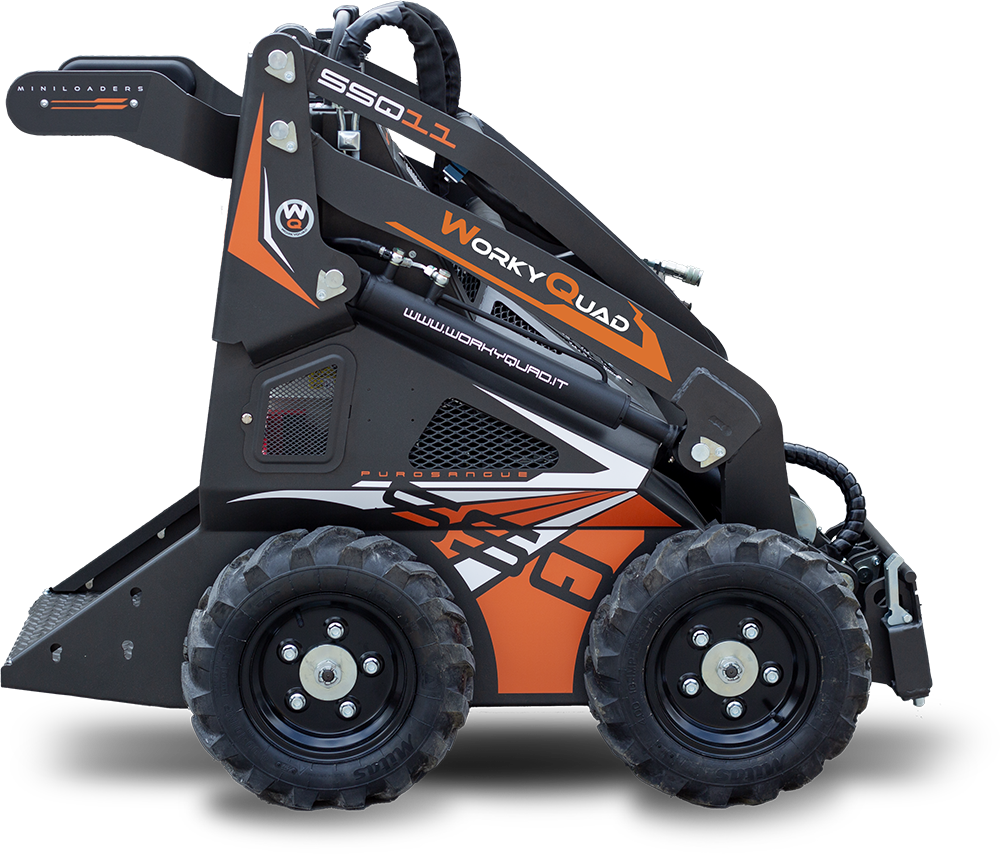

Related Machines
