WorkyQuad SSQ11 Plus_Purosangue

WorkyQuad SSQ11 Plus / WorkyQuad SSQ11 Purosangue Special Edition mini skidsteers

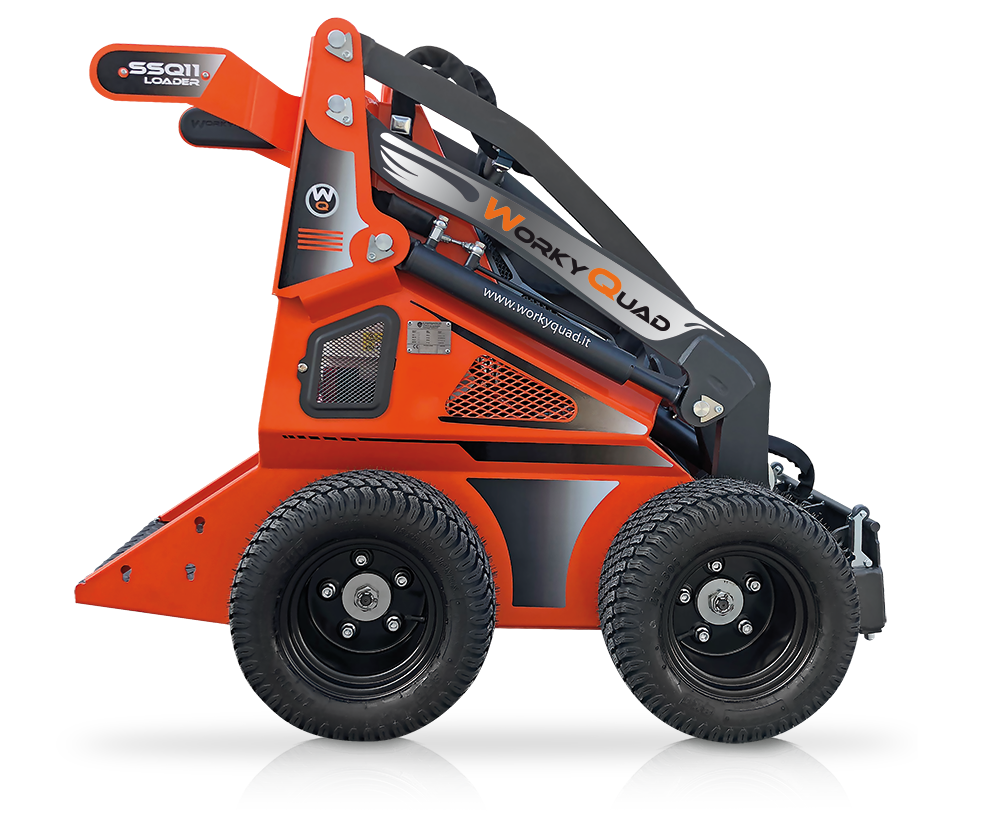

WorkyQuad SSQ11 Plus mini skidsteer

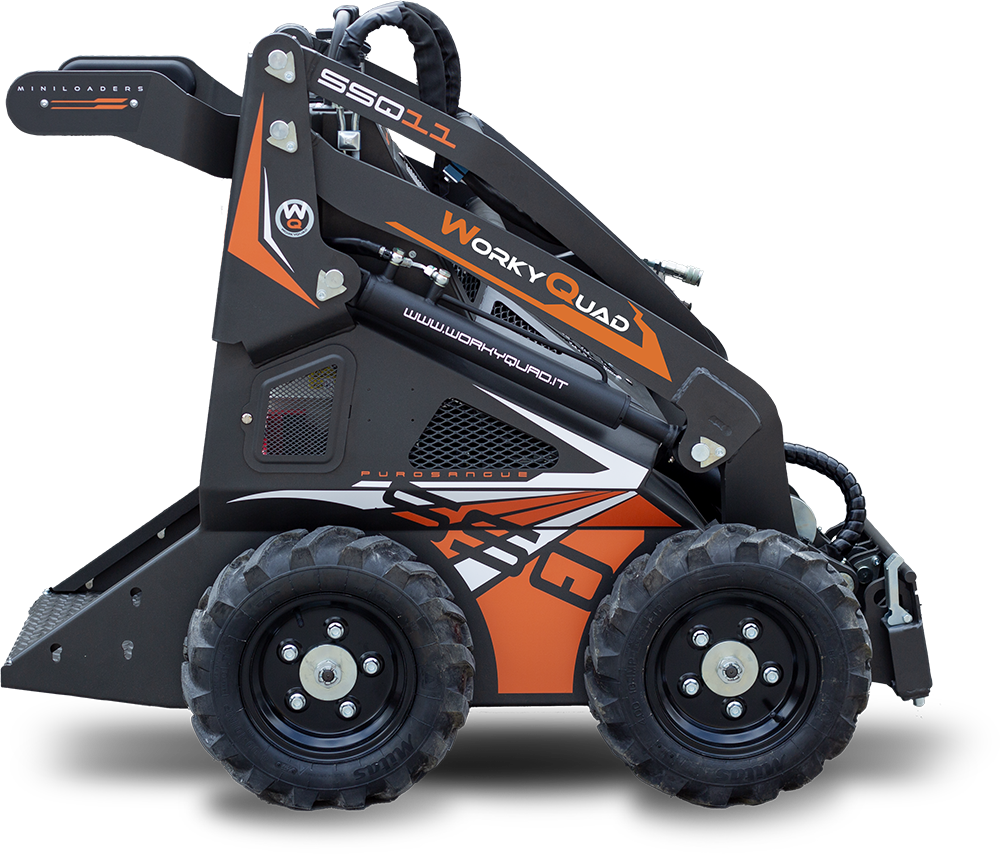

SSQ11 Purosangue MIni Skidsteer

LIFTING

280kG

WITH COUNTERWEIGHTS

ENGINE POWER

11,7HP

HONDA GX390

HYDRAULIC FLOW RATE

21,6L/min

HYDRAULIC PUMP

The WorkyQuad SSQ11 Plus and the WorkyQuad SSQ11 Purosangue mini skidsteers, with their manoeuvrability and compact size work particularly well in farming and livestock environments. It is available with nearly 20 optional attachments.

The features of the SSQ11 Plus and Purosangue models that are different from theWorkyQuad SSQ11 Country include an hour counter, ballast weights, side bumpers and a throttle handle.

Dimensions

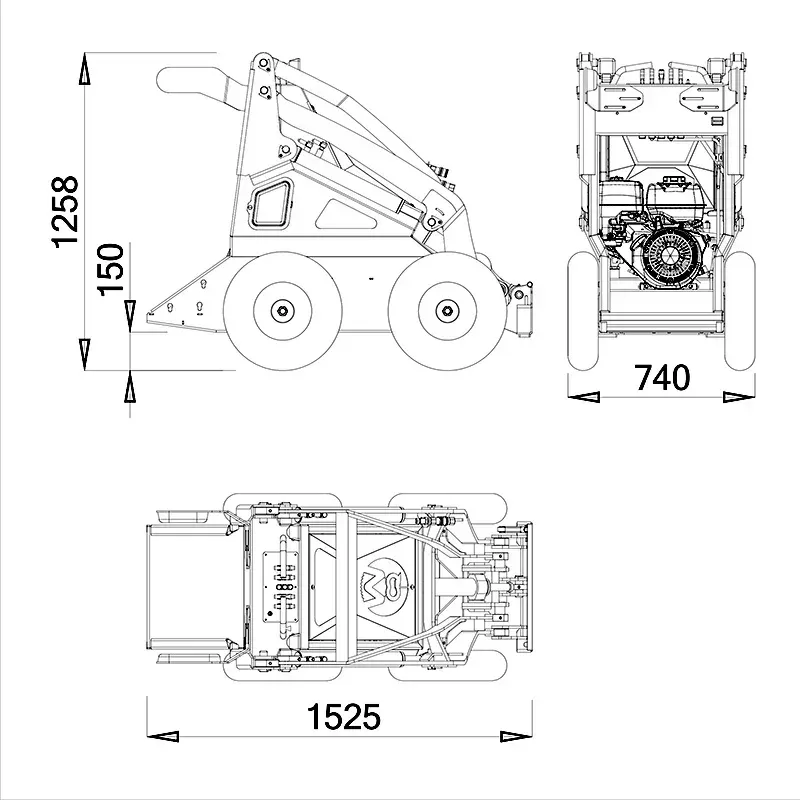

WorkyQuad SSQ11 Plus_Purosangue dimensions
WorkyQuad SSQ11 Plus Dimensions

Specifications

SSQ11 Plus/Purosangue SPECIFICATIONS
Engine HONDA GX390
Power HP/Kw 11,7/8,7
Displacement cm3/ number of cylinders: 389/1
RPM 3600
Ignition / Cooling System Electric / Air
Fuel Petrol (Euro95)
Drive System Hydraulic with 4WD
Hydraulic flow rate l/min 21,6
Speed 0-6 (proportional)
"Tractor" Tyres 4.00x8

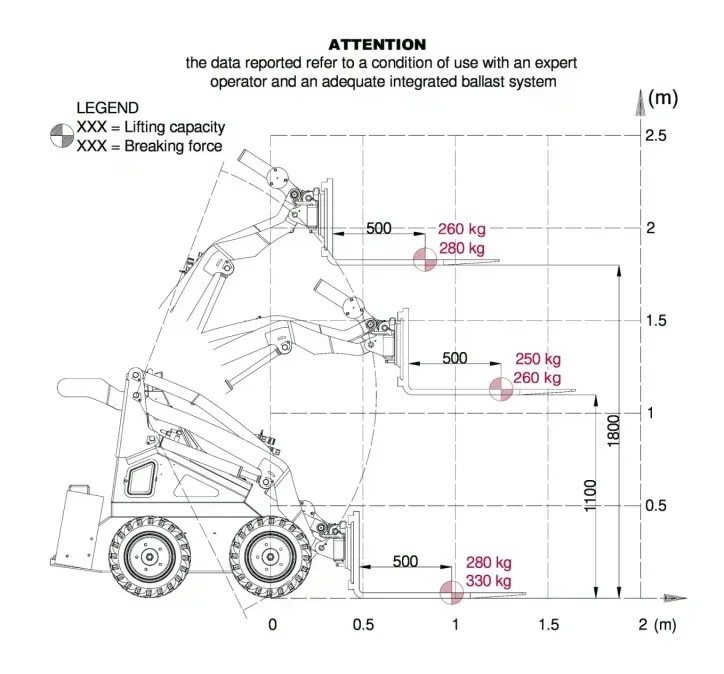

Lifting capacity Kg 280 (with counterweights)
Traction capacity Kg 420 (with counterweights)
Tear-off force Kg 300
Dimensions ( L mm x W mm x H mm) 1525 x 740 x 1258
Weight Kg (empty) 600
Throttle lever, Side protectors, Hour meter: Standard
Integrated ballast 50kg Standard

SSQ11 Plus/Purosangue Features

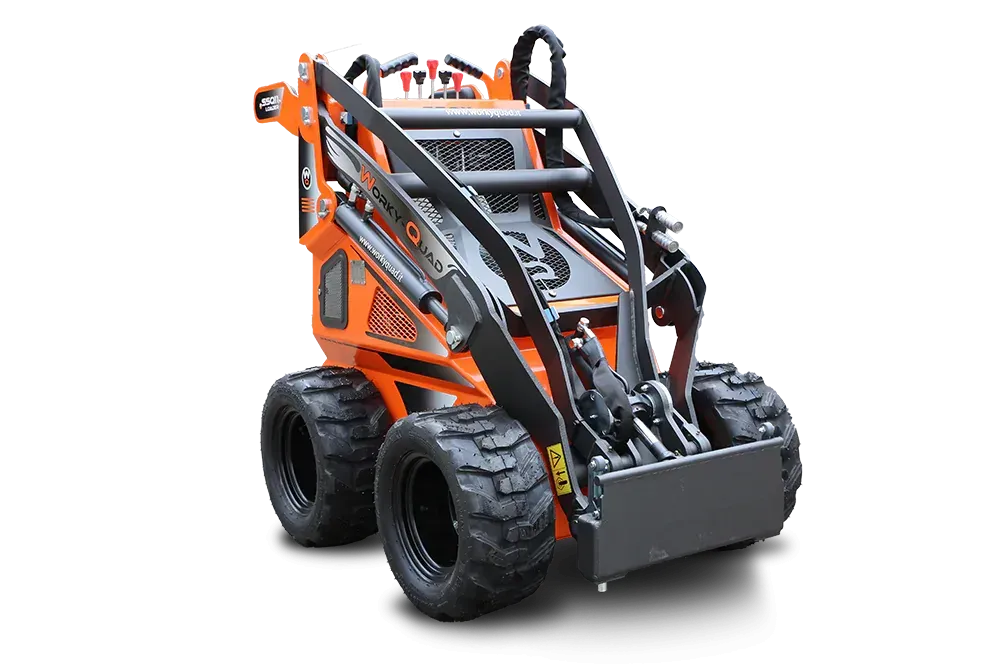

WorkyQuad SSQ Plus mini skidsteer

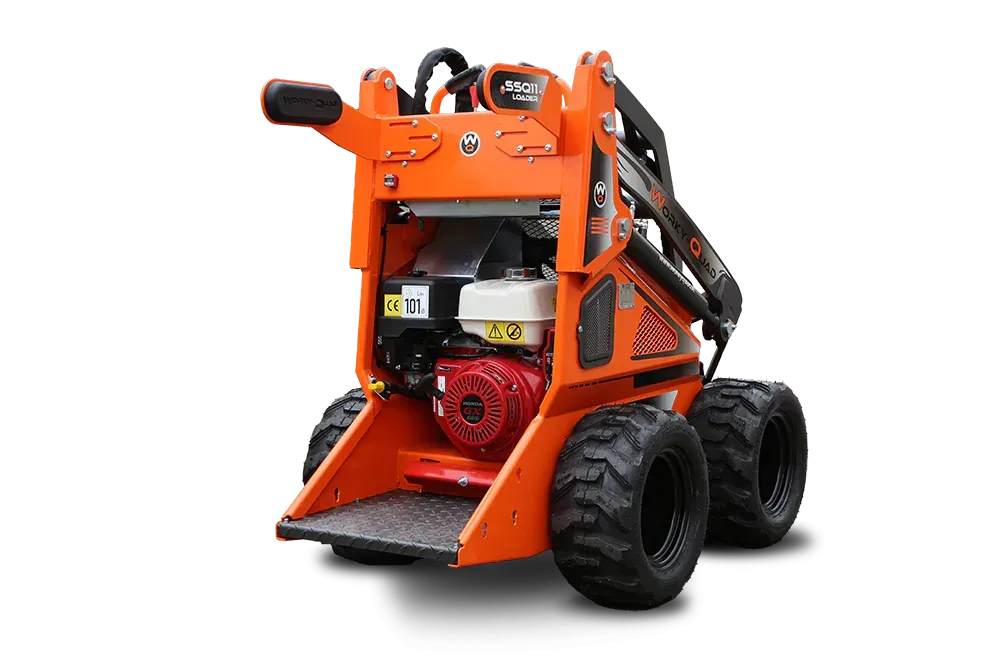

WorkyQuad SSQ Plus mini skidsteer

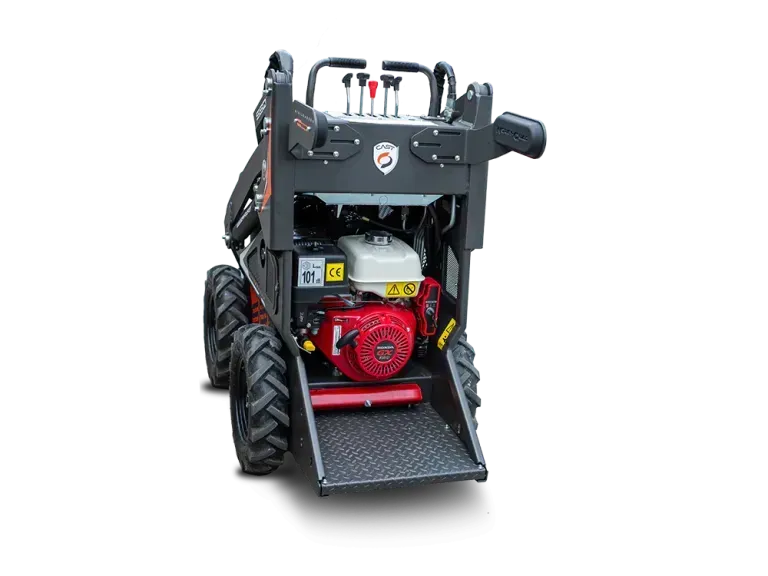

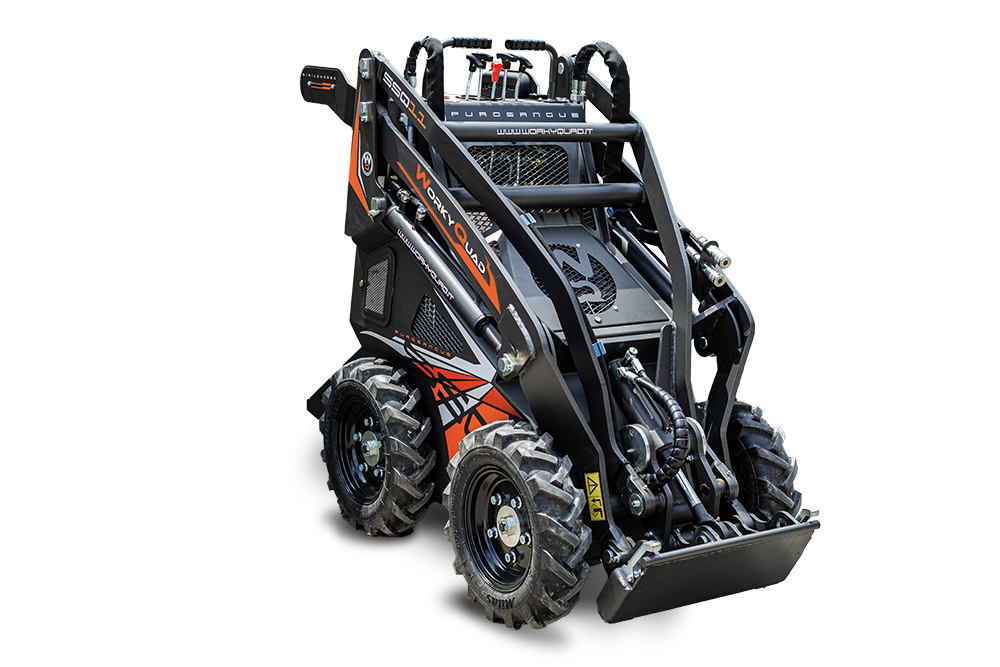

WorkyQuad SSQ11 Purosangue Special Edition
WorkyQuad SSQ11 Purosangue Special Edition

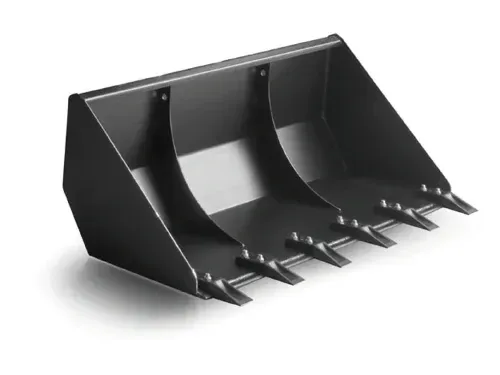

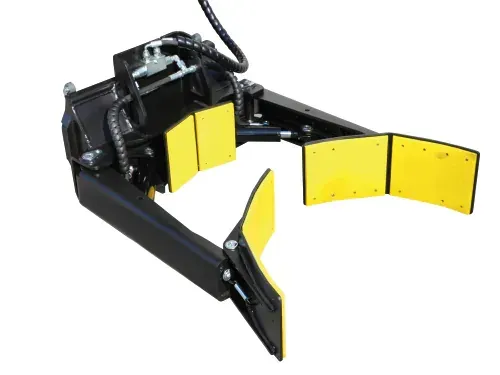

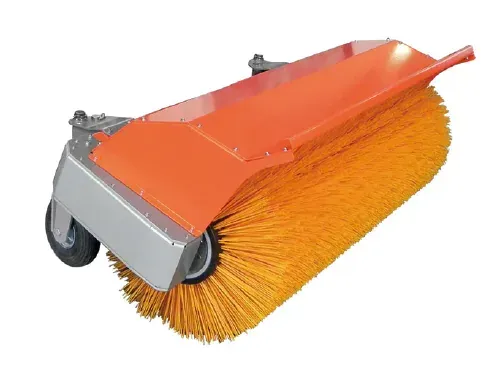

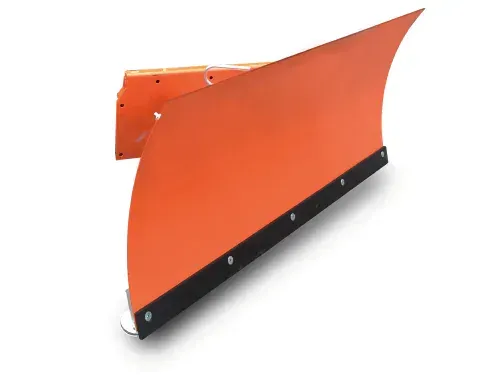

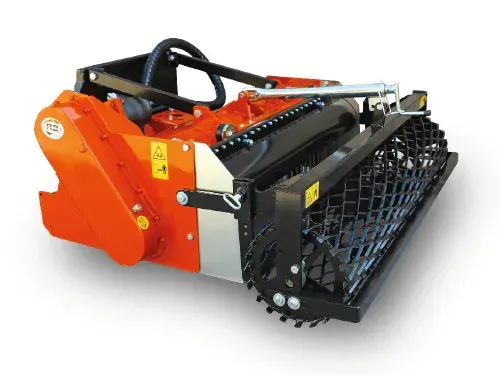

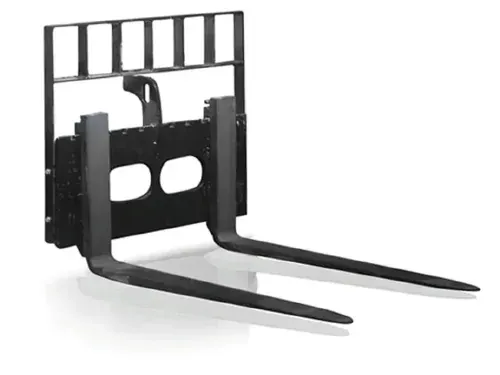

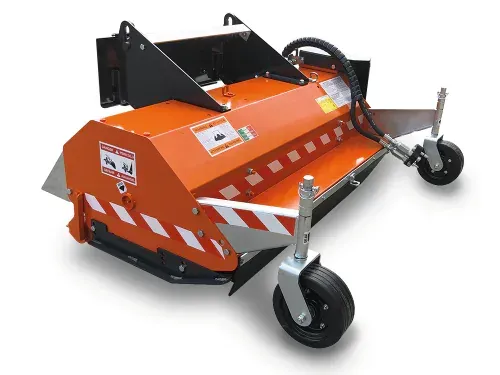

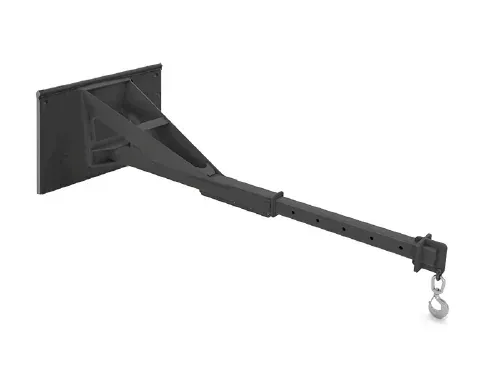

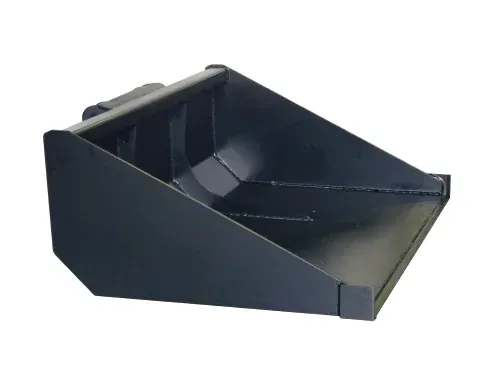

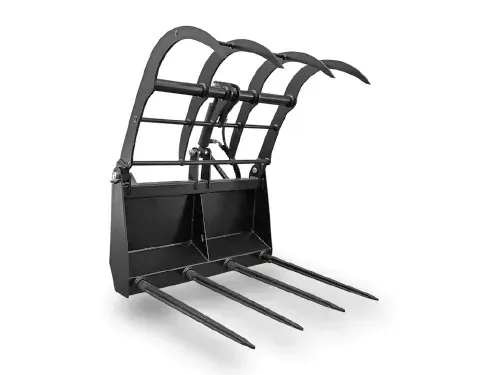

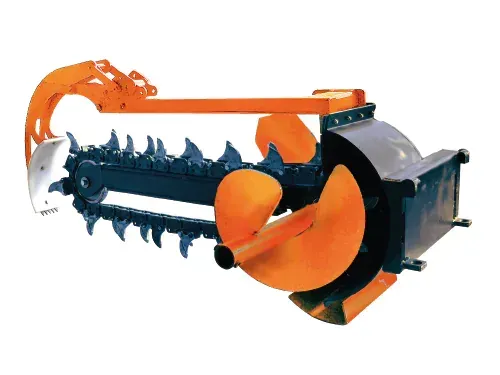

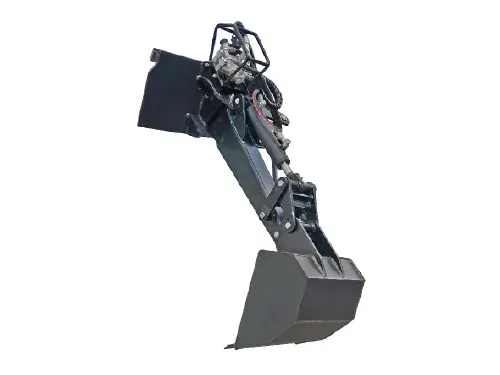

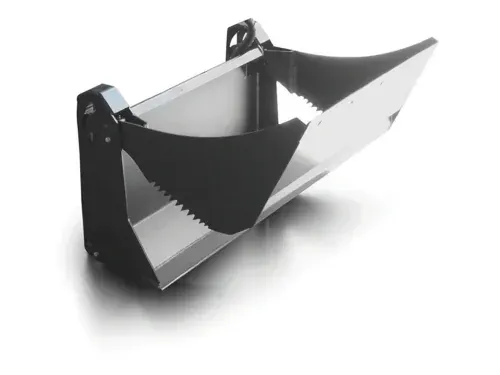

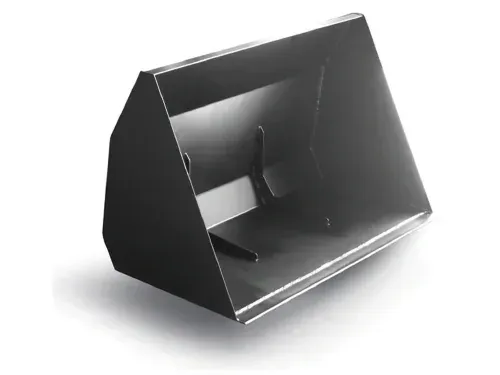

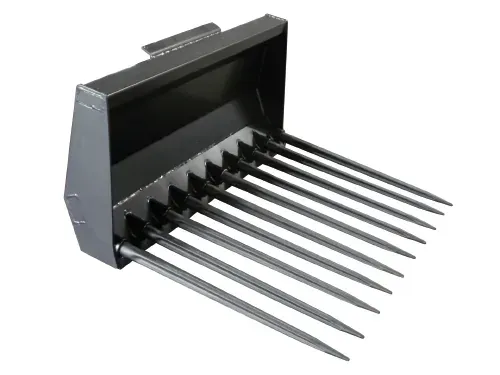

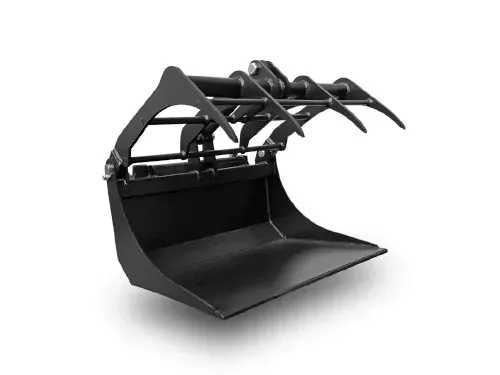

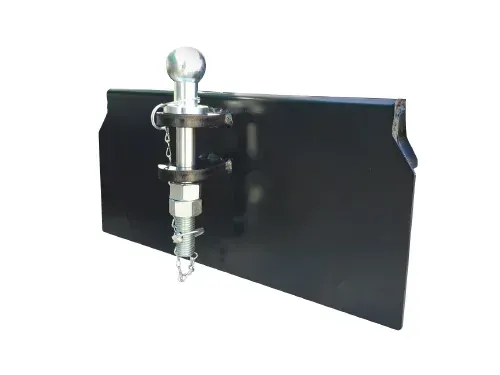

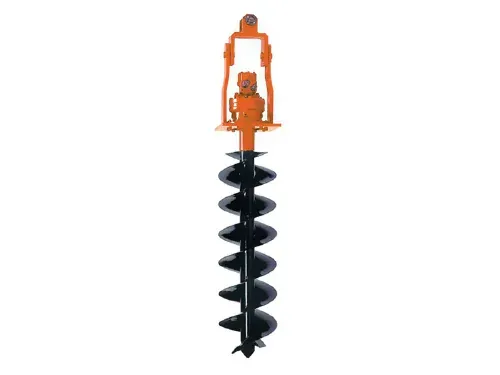

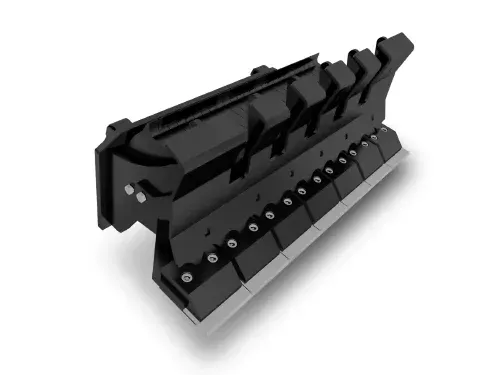

Available Attachments

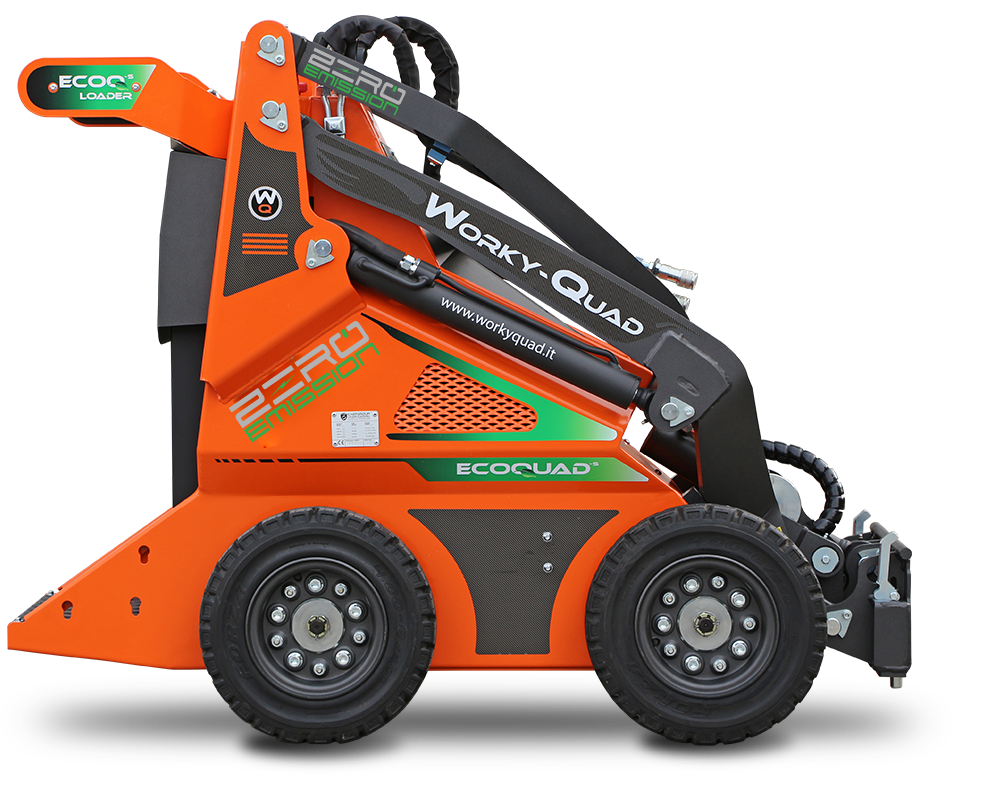

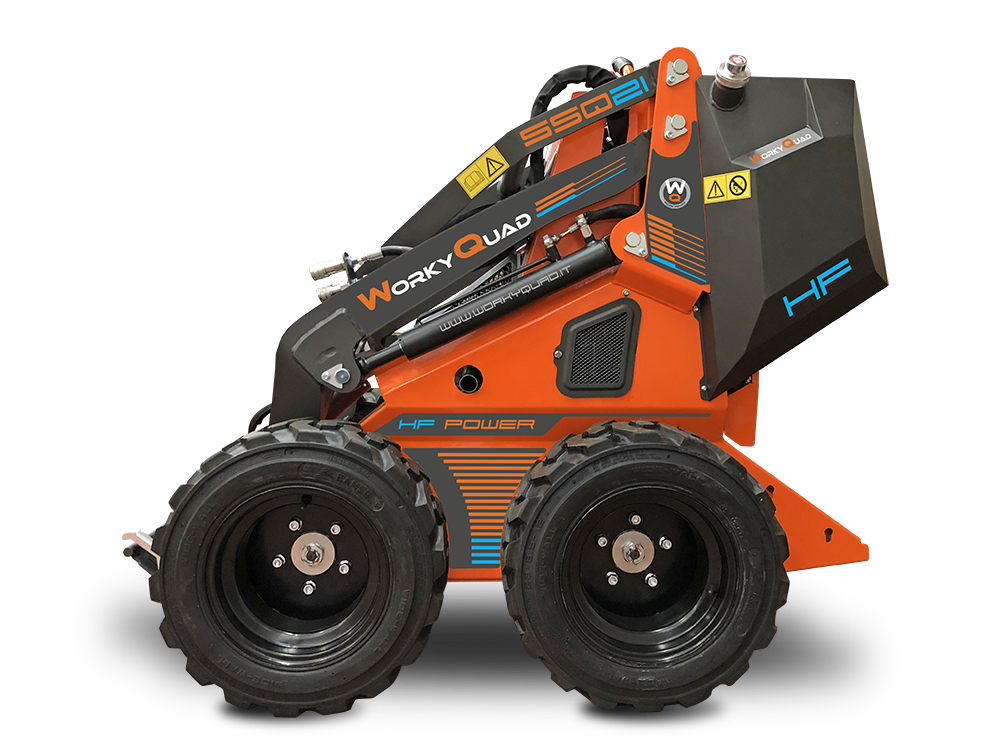

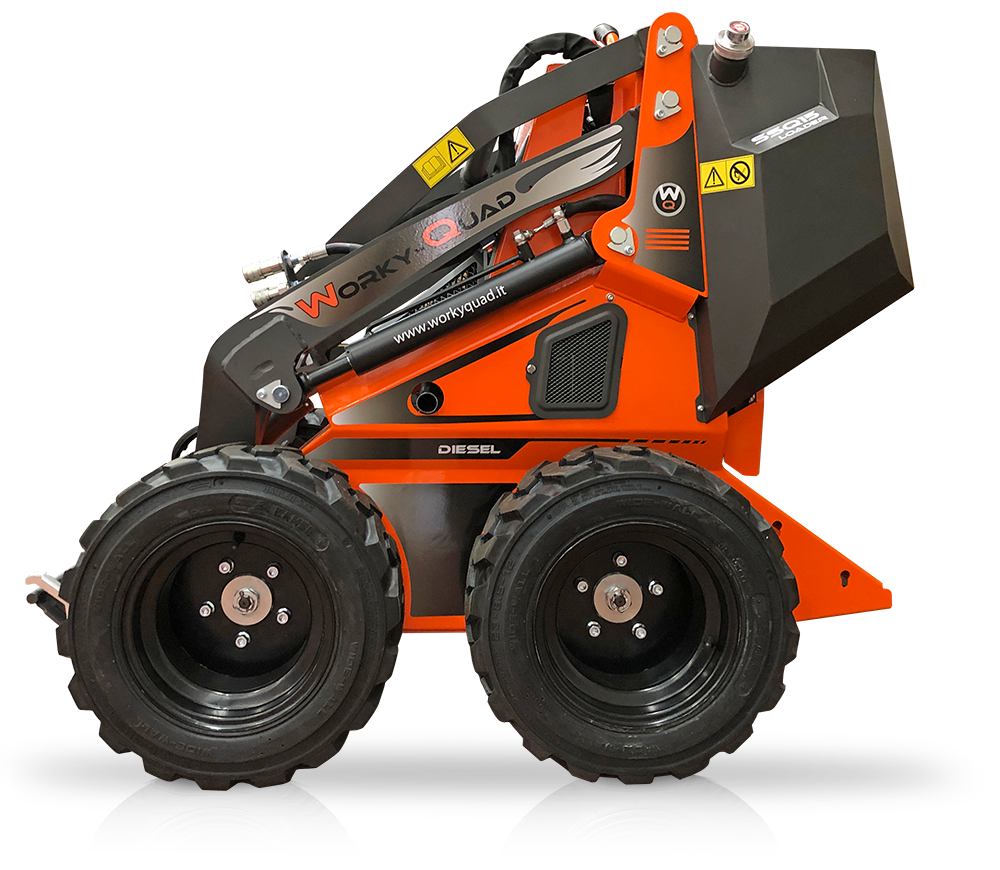

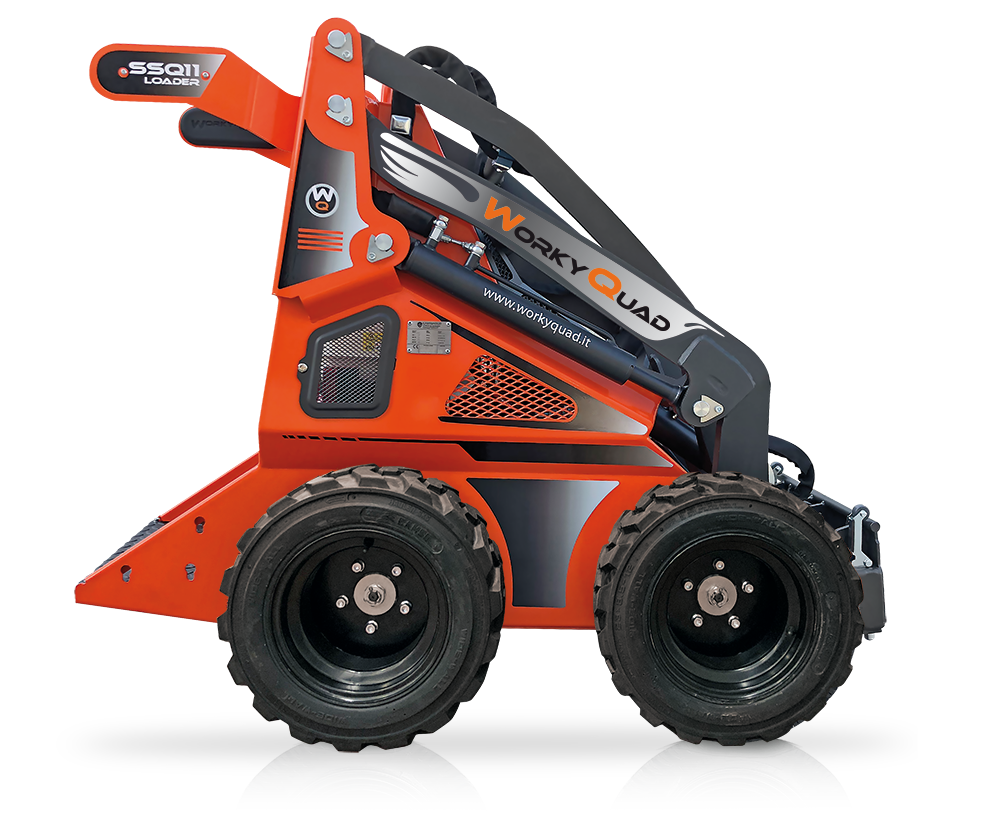

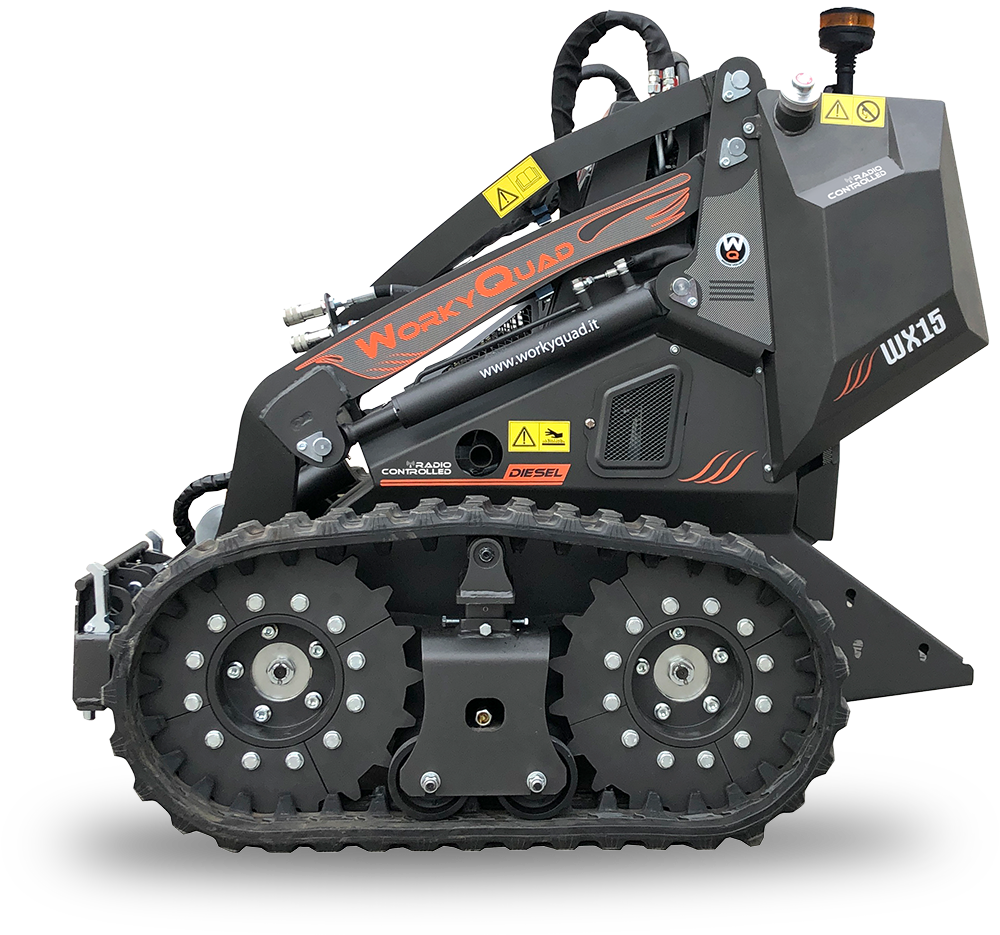

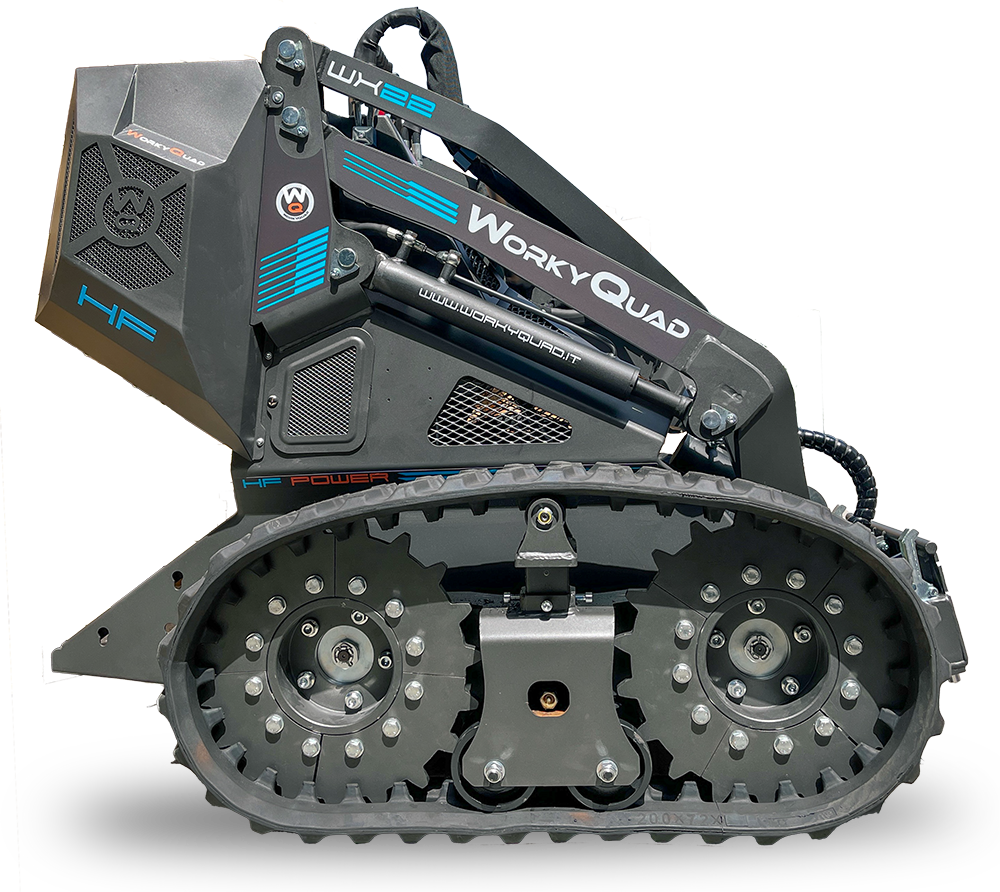

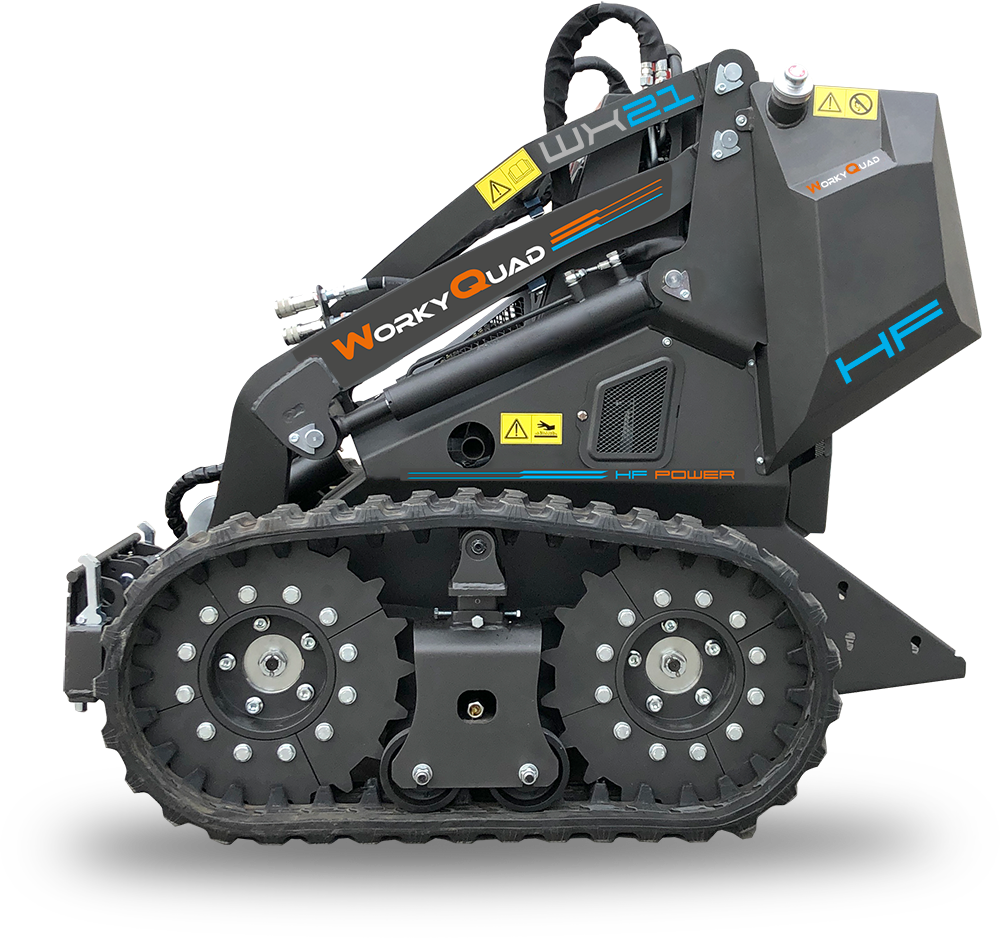

Related Machines
