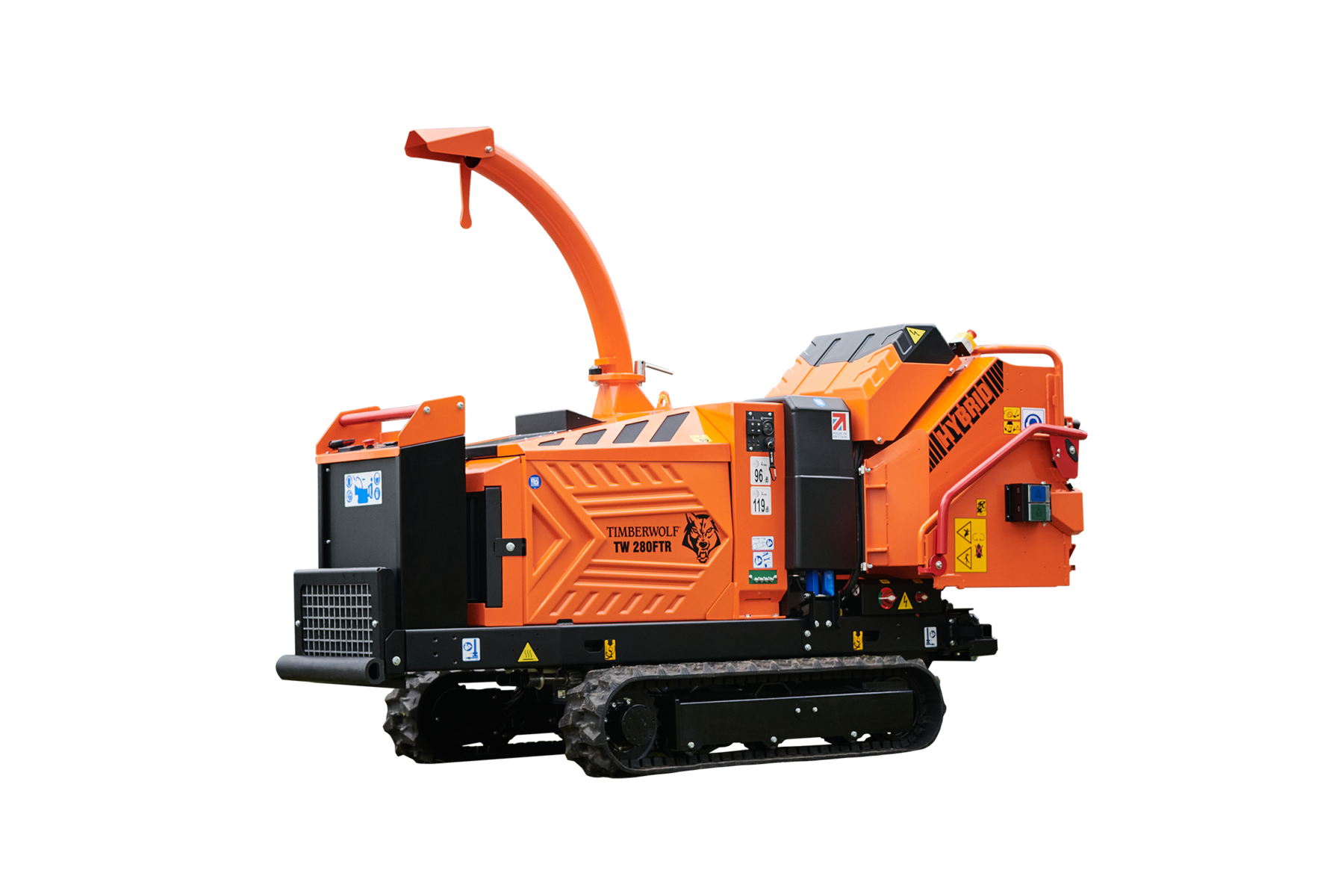

TIMBERWOLF TW 280FTR HYBRID 8" TRACKED WOOD CHIPPER
Timberwolf have just launched the new Timberwolf TW 280FTR diesel Hybrid Powered Fixed Tracked 8″ Wood Chipper with Maintenance-free GSM & Supercapacitors. Key features include a self-charging system when operating, no diesel particulate filter (DPF), WolfTrack Dual Speed Tracking System, integrated track recovery system, Bluetooth connectivity through App based platform for comprehensive machine telemetry and an anti-vibration folding operator control platform.
Features:
- Kubota D902-TE4, 24.8 hp (18.5 kW), turbo diesel engine
- Swift recharging capability, SECH supercapacitors provide additional energy when required
- Maintenance-free, 37.3hp (27.8 kW) generator synchronous motor (GSM) and supercapacitors
- Class leading 280 mm x 210 mm infeed opening (8 ¼” cutting performance)
- Quad force rollers for ultimate grip, crushing and infeed power
- 245 mm ground clearance
- WolfTrack Dual Speed Tracking System (Low speed: 2.5kph High speed: 5 kph)
- Dual, ergonomic heavy duty infeed controls
- 285° adjustable discharge chute
- Centralised grease point
- Bluetooth connectivity through App based platform for comprehensive machine telemetry
*Based on Kubota’s emissions and fuel consumption data (testing over a fixed test cycle under laboratory conditions)
Optional Extras:
- WARN Zeon 8 recovery winch offering wireless remote control for safe recovery
- LED Ground Illumination Kit, making it easier to load/unload and manoeuvre in low light conditions**
**LED lighting not intended to be used whilst chipping
Benefits:
- Self-charging system when operating
- No diesel particulate filter (DPF) or AdBlue™ requirements
- Patented exhaust cooler reduces exhaust temperatures by 150°C
- Enhanced operator diagnostics for easy troubleshooting
- Anti-vibration folding operator control platform
- Integrated track recovery system
- 2x quick access double-sided reversible blades
- Maintenance free blade to anvil gap
- Timberwolf reliability and simplicity built-in
- 3-year warranty as standard with optional 5-year extended warranty
A Step towards lower emissions
Kubota Powered Hybrid
Using a Kubota Super Mini Series engine teamed together with a powerful electric motor generator, the powertrain maximises the wood chippers overall efficiency to significantly reduce fuel consumption and CO2 emissions.

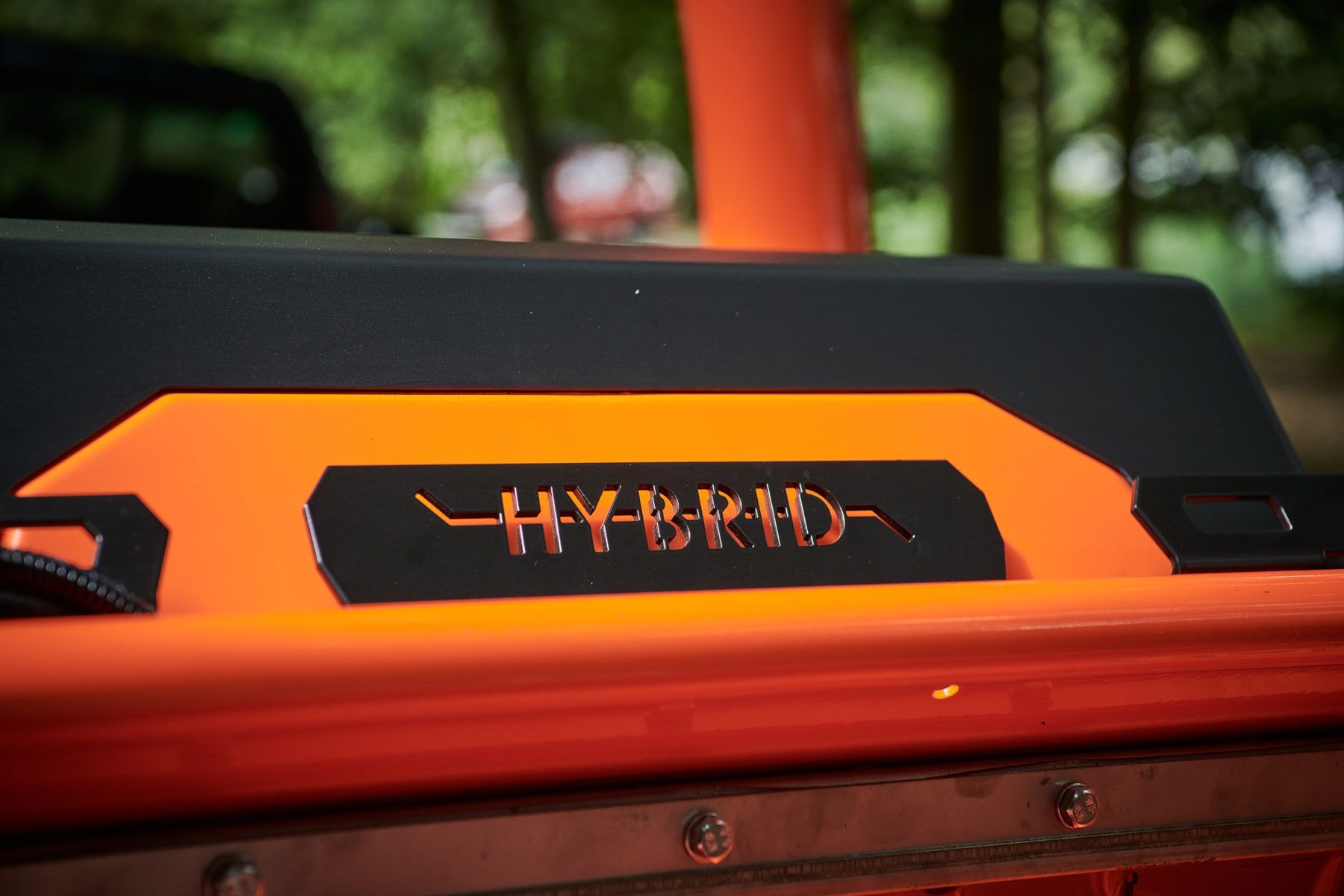

Easy to Maintain
Easy to maintain, and without a troublesome DPF, the TW 280FTR HYBRID wood chipper is ideal for companies who are committed to minimising their emissions and fuel usage.

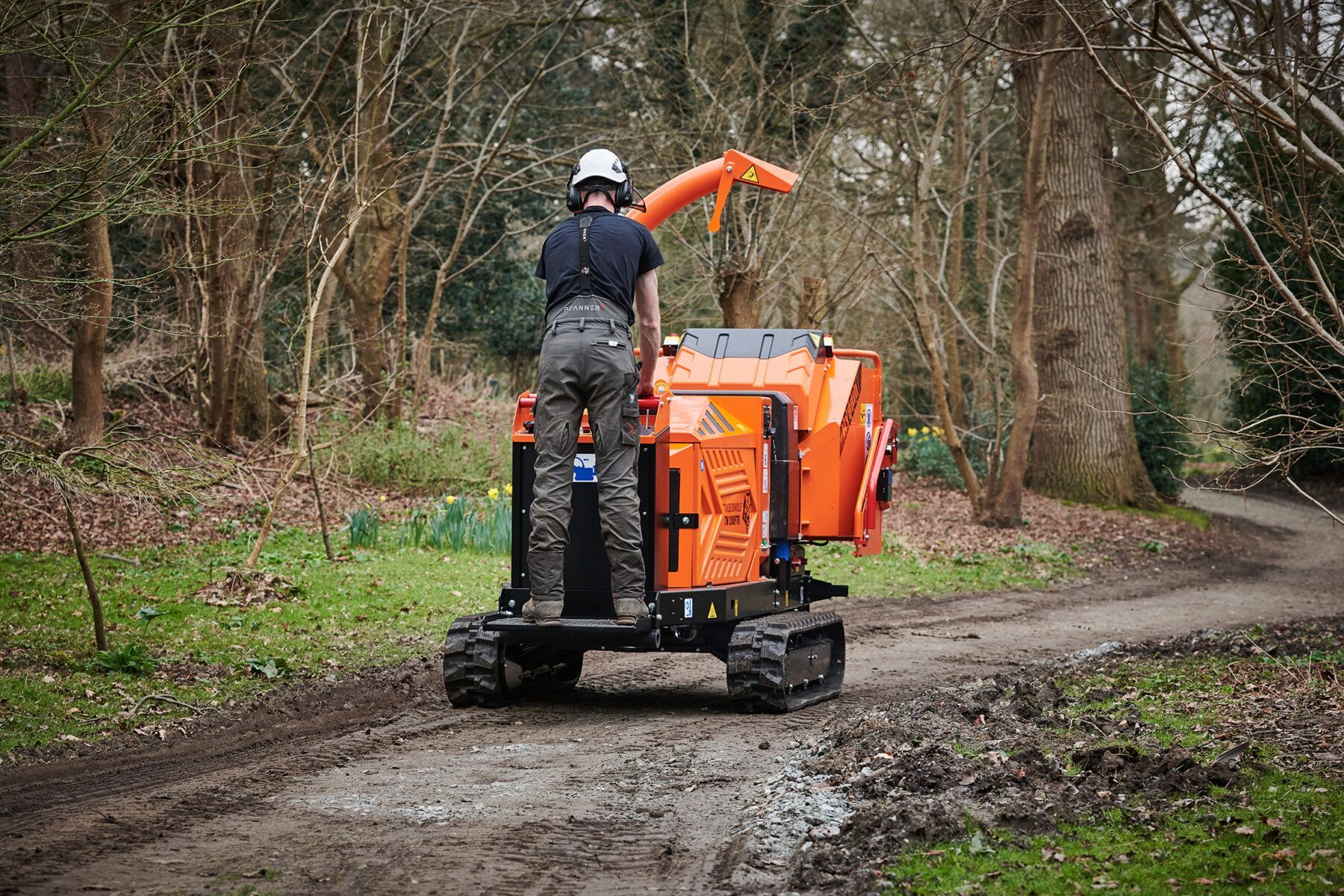

Timberwolf Warranty Included!
Like all Timberwolf wood chippers, the TW 280FTR HYBRID comes with a standard 3-year warranty with the option to extend to a further 5-years for extra peace of mind.

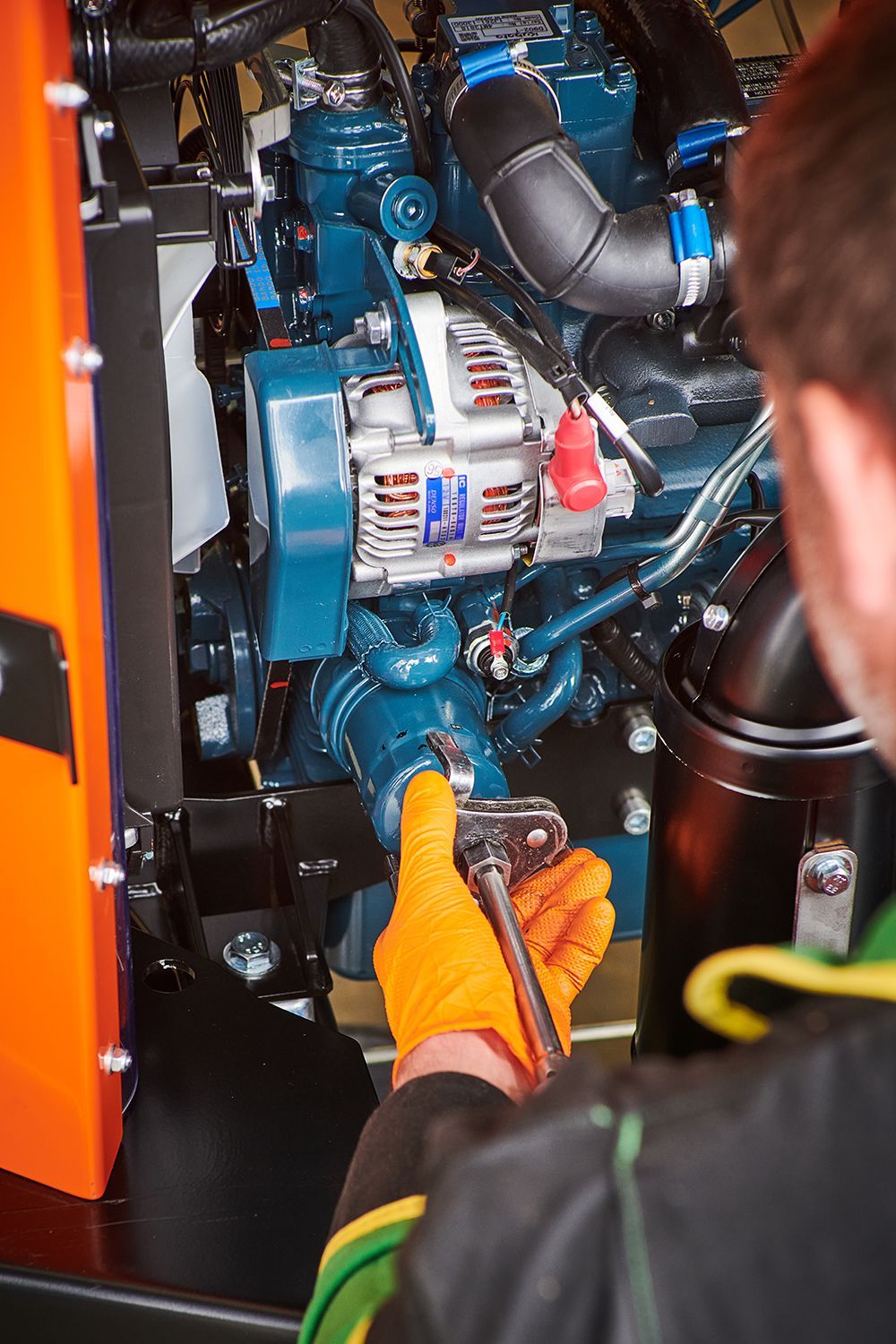

KUBOTA ENGINE
Kubota D902-TE4 turbo diesel engine. Selected for its pedigree and high RPM, this Super Mini Series engine provides outstanding applied torque.
SUPERCAPACITORS
With unlimited cycle life, supercapacitors store and release energy exceptionally quickly. SECH supercapacitors are smaller than Li-ion batteries and recognised industry-wide for their high reliability and performance.
8" CAPACITY
Class leading 280 mm x 210 mm infeed opening (8 1/4" cutting performance) is the widest infeed aperture in the market meaning there's no problem tackling big, brashy materials.
EASY TO MAINTAIN
With Timberwolf quality built-in, the SECH supercapacitors and motor generator are maintenance-free.
NO DPF
No diesel particulate filter (DPF) or AdBlue™ requirements
PATENTED EXHAUST
Fitted with a patented exhaust cooler reducing exhaust temperatures by 150°C
SELF-CHARGING
Self-charging system when operating
TIMBERWOLF QUALITY GUARANTEED
Timberwolf reliability and simplicity built-in
SPECIFICATIONS
| TW 280FTR HYBRID Chipper | Specifications |
|---|---|
| Engine | Kubota D902-TE4-BHP TURBO DIESEL |
| Starting Method | Electric |
| Fuel | Diesel |
| Tank Capacity | 36 Litres (7.9 gallons) |
| Hybrid Powertrain | 37.3HP Inmotion Generator Synchronous Motor (GSM) |
| Weight | 1735 kg (Weight with Winch = 1804kg) |
| Length | 3665mm (Tray Down) 2880mm (Tray Up) |
| Width | 1410mm |
| Height | 2320 mm (1626 mm with discharge tube removed) |
| Maximum diameter infeed | 210mm (8 1/4") |
| Feed Method | Twin Series Hydraulic Quad Force rollers |
| Blades | 2 x 158mm Quick Access, Double Sided, Fully hardened |
| Auto back-off function | Included |
| Discharge Tube | 285 degrees adjustable discharge |
