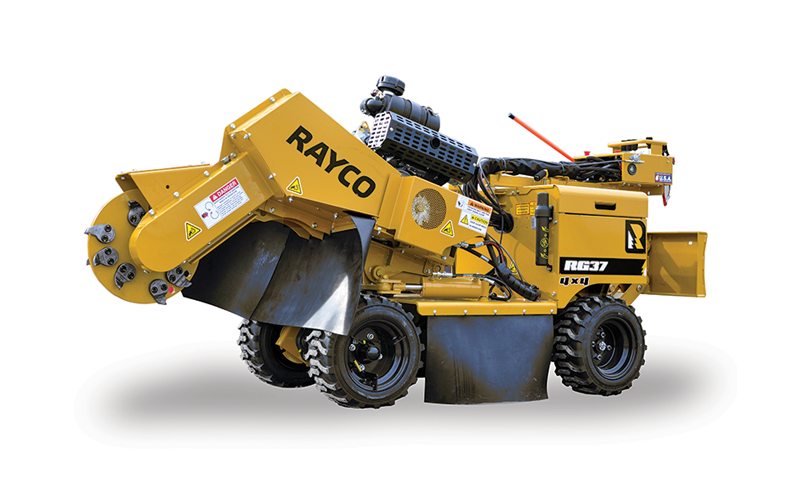

Rayco RG37 Super Jnr  Stump grinder

Rayco RG37 Super Jnr Stump grinder - sales, parts support from Green Plant

The Super Jr stump cutter is the original self-propelled, backyard stump cutter that professionals have relied on since 1986. The Super Jr comes with a 37 HP (27.6 kW) petrol engine. To maximize visibility while cutting, the Super Jnr has the drivetrain located on the far side of the cutter wheel. And Rayco’s exclusive, swing-out control station gives operators the best view while cutting and swings in line with the machine for travel through gates. Wide, floatation tires with bar tread give the Super Jr a firm grip on the terrain, and dual wheels can be added for extra stability. Rayco’s exclusive slewing ring pivot design lowers the centre of gravity and lets the Super Jr cut at maximum depth across the whole swing path.


  • Slewing ring pivot design increases cutting width
  • Full cutting depth across entire width of cut
  • Lower center of gravity
  • Wide tires for enhanced traction and flotation
  • Swing-out operator station
  • Controls swing in line for travel through gates
  • Gasoline engines with heavy duty air filter
  • 37-hp Vanguard engine
  • Centrifugal precleaner
  • Hydraulic backfill blade
  • Two speed ground travel
  • Optional dual rear wheels & Command Cut
  • Optional 4-Wheel drive

BROCHURE

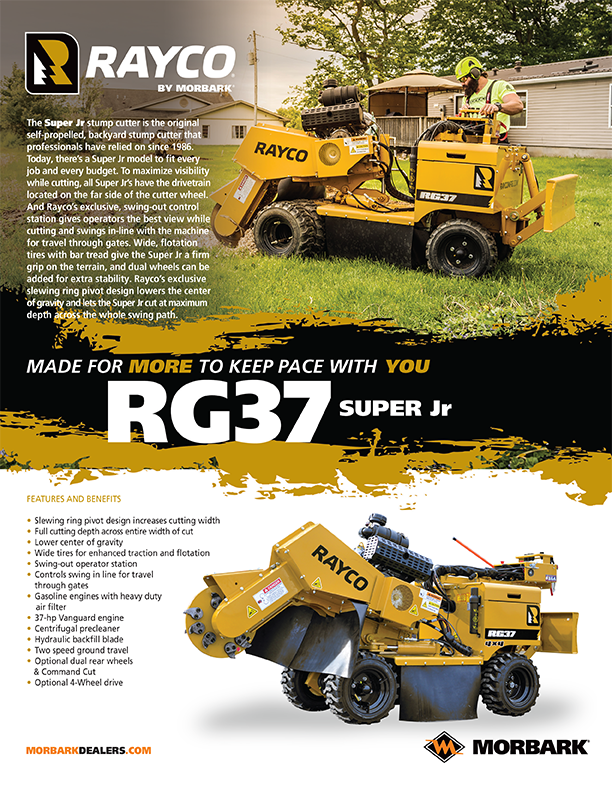

Rayco RG37 Super Jnr Stumpgrinder brochure

VIDEO

FEATURES

RG37 Super Jnr Vanguard 37 hp (RG37)
Dual rear wheels

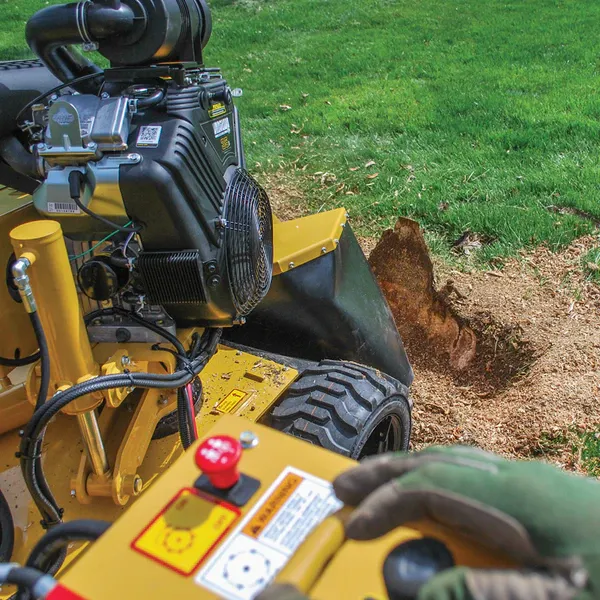

Swing-out operator station for better visibility
Slewing ring pivot design increases cutting width
Full cutting depth across entire width of cut

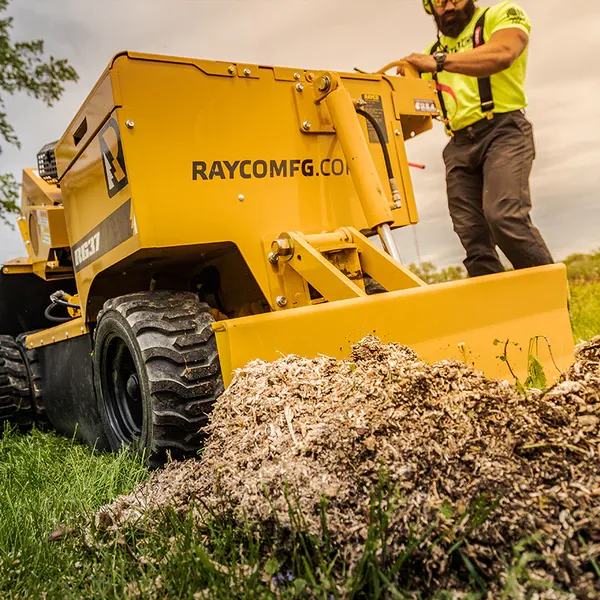

Hydraulic backfill blade
Controls swing in-line for travel through gates
Lower centre of gravity

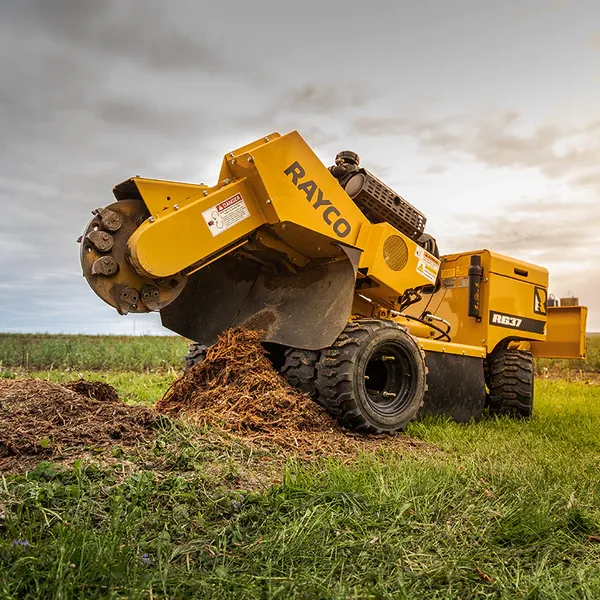

Two speed ground travel, Wide tires for enhanced traction and floatation, Gasoline engine with heavy duty air filter, Centrifugal precleaner
4-Wheel drive, Command Cut

SPECIFICATIONS

RG37 Super Jnr Specifications
WEIGHT 1,830 lb, 830.1 kg
LENGTH 114", 299.56 cm
HOOD HEIGHT 37", 94 cm
MAXIMUM HEIGHT 52", 132.1 cm
WIDTH 35", 88.9 cm
WIDTH W/ DUAL WHEELS 52.5", 133.4 cm
ENGINE Vanguard
HORSEPOWER 37 hp, 27.6 kW
FUEL TYPE Gasoline, Petrol
FUEL TANK 5 gallons, 18.9 L

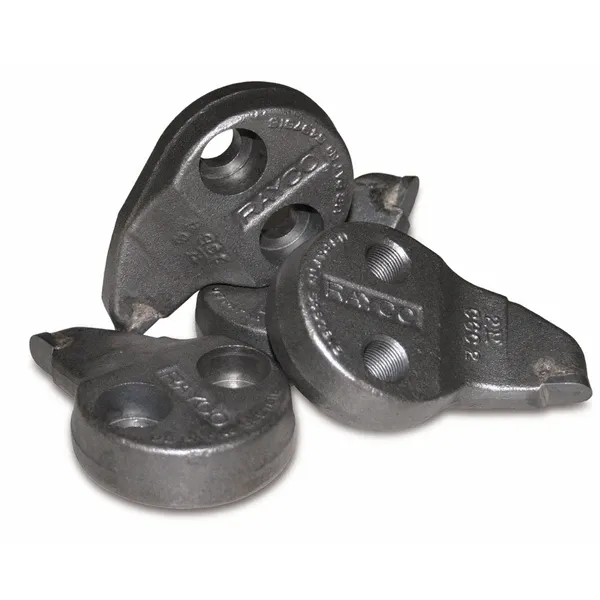

SUPER TOOTH 18 total
CUTTER WHEEL 17.25" x 1", 43.82 cm x 2.54 cm
CUTTING DEPTH 12", 30.48 cm
CUTTING HEIGHT 24.5", 62.23 cm
CUTTING WIDTH 51", 129.54 cm
