LIFTING
340kG
WITH COUNTERWEIGHTS
ENGINE POWER
20,3HP
KUBOTA D722 - E4B
HYDRAULIC FLOW RATE
40L/min
'HIGH FLOW' SYSTEM

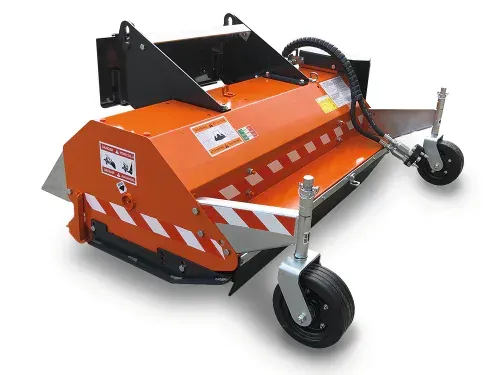

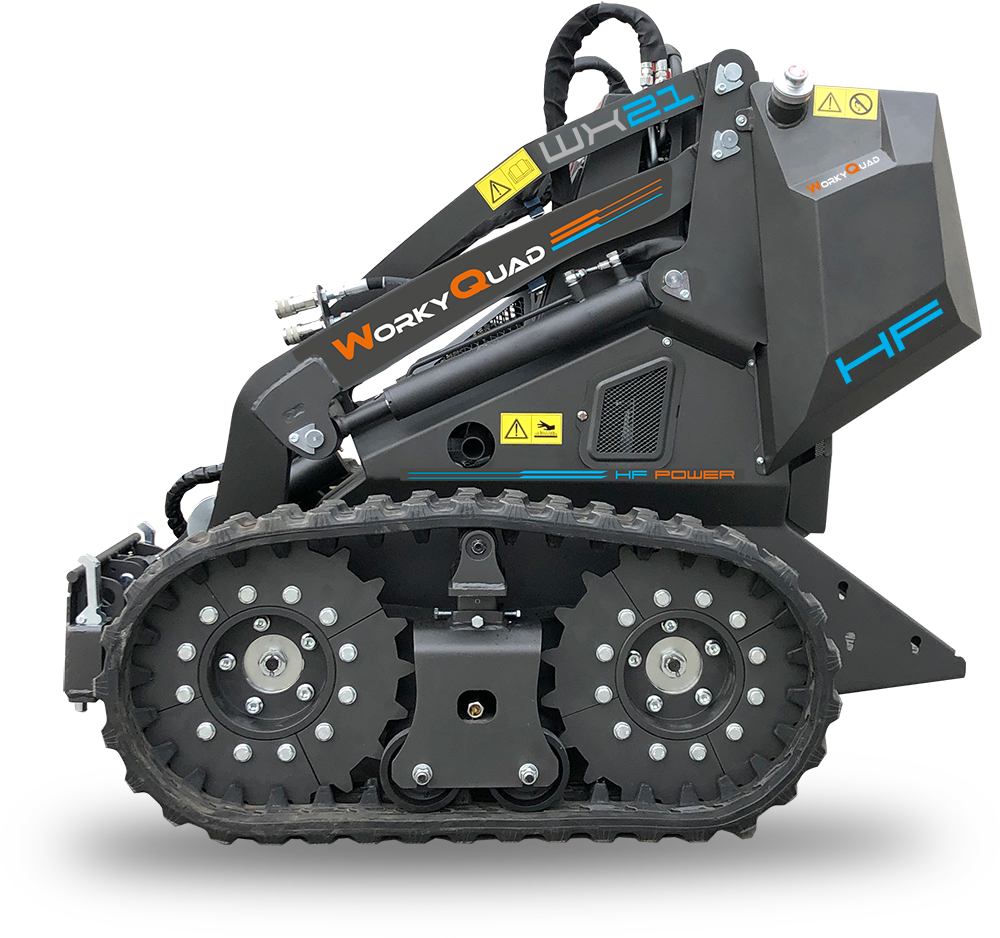

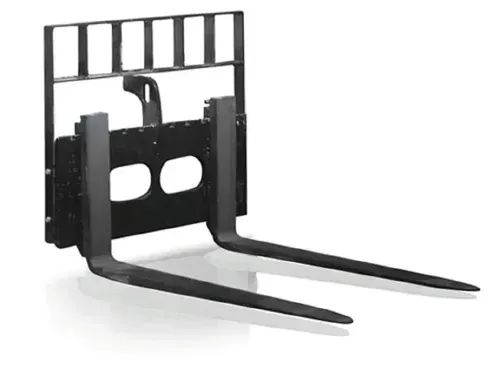

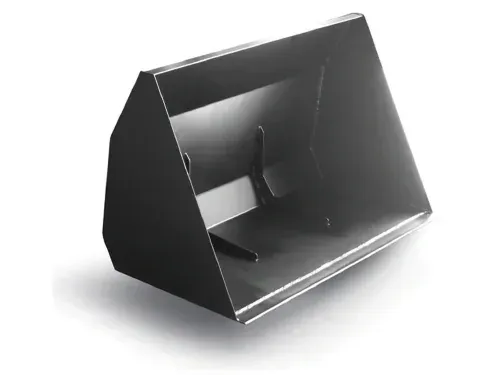

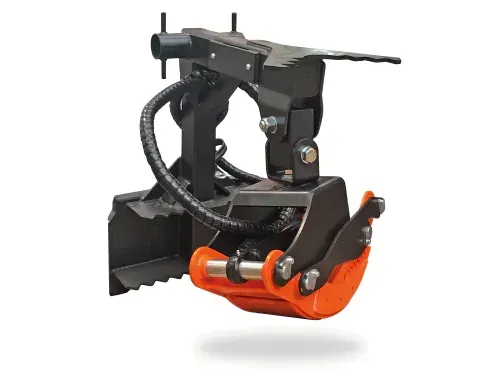

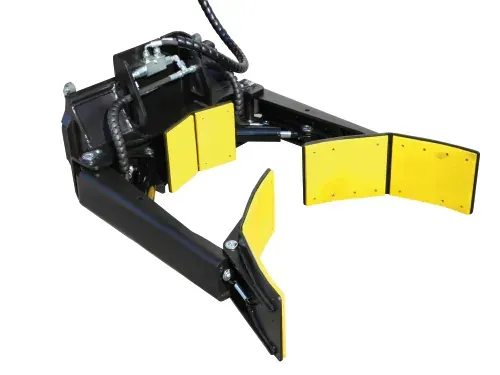

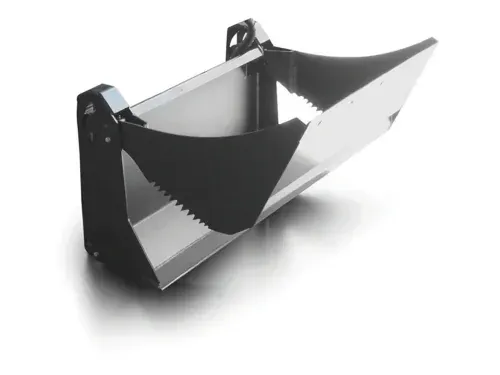

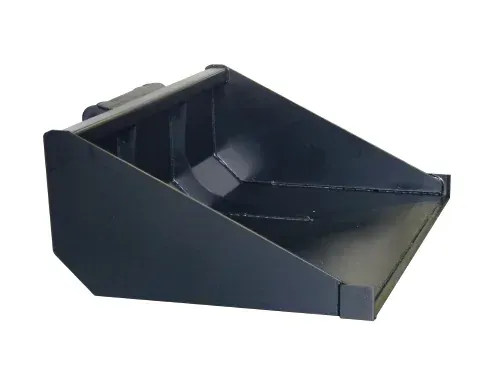

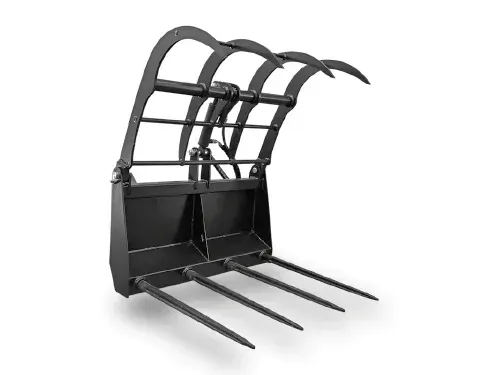

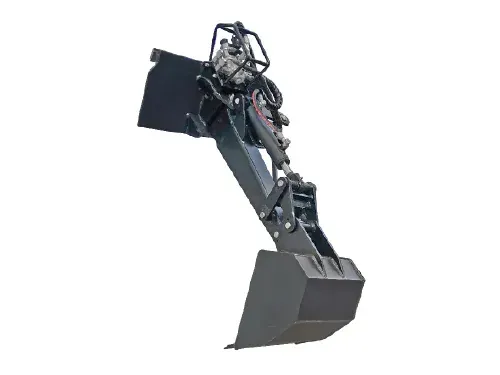

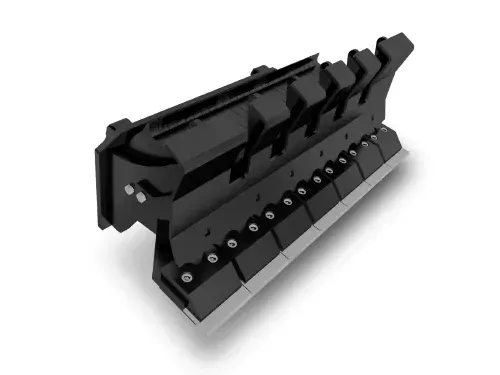

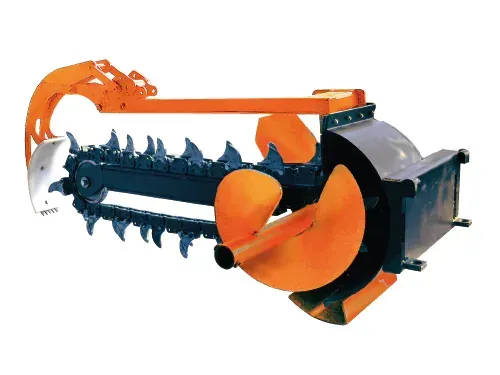

The WorkyQuad wx21 HF offers exceptional power and fluidity. Thanks to the new system that allows for greater hydraulic flow, the WorkyQuad WX21 HF can deliver extraordinary power and turn it into traction thanks to the large tracks, allowing you to overcome any obstacle.. It is available with nearly 20 optional attachments
WorkyQuad wx21 HF | SPECIFICATIONS |
---|---|
Engine | KUBOTA D722 - E4B |
Power HP/Kw | 20,3/14,9 |
RPM | 3600 |
Ignition | Electric |
Cooling system | Air |
Fuel | Diesel |
Drive System | Hydraulic with 4WD |
Hydraulic flow rate l/min | 40 |
Speed | 0-5 (proportional) |

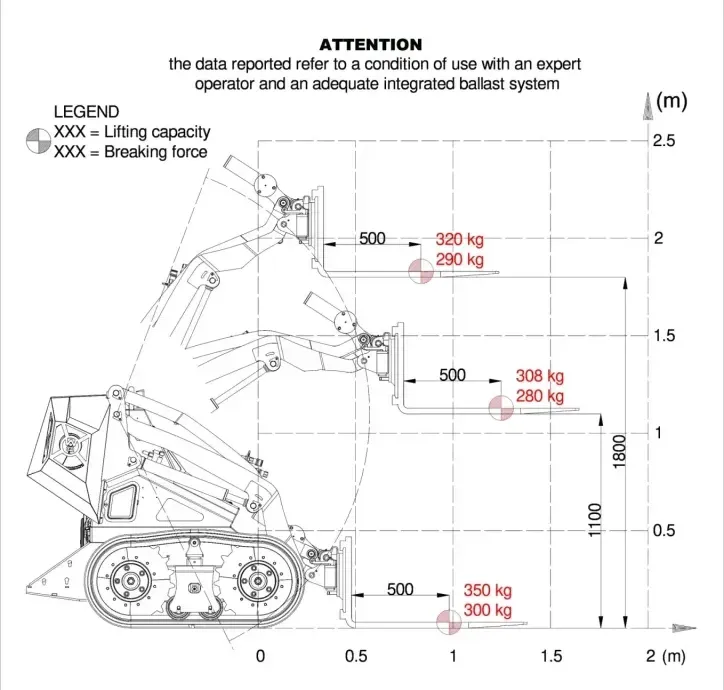

Lifting capacity Kg | 340 (with counterweights) |
Traction capacity Kg | 700 (with counterweights) |
Tear-off force Kg | 320 |

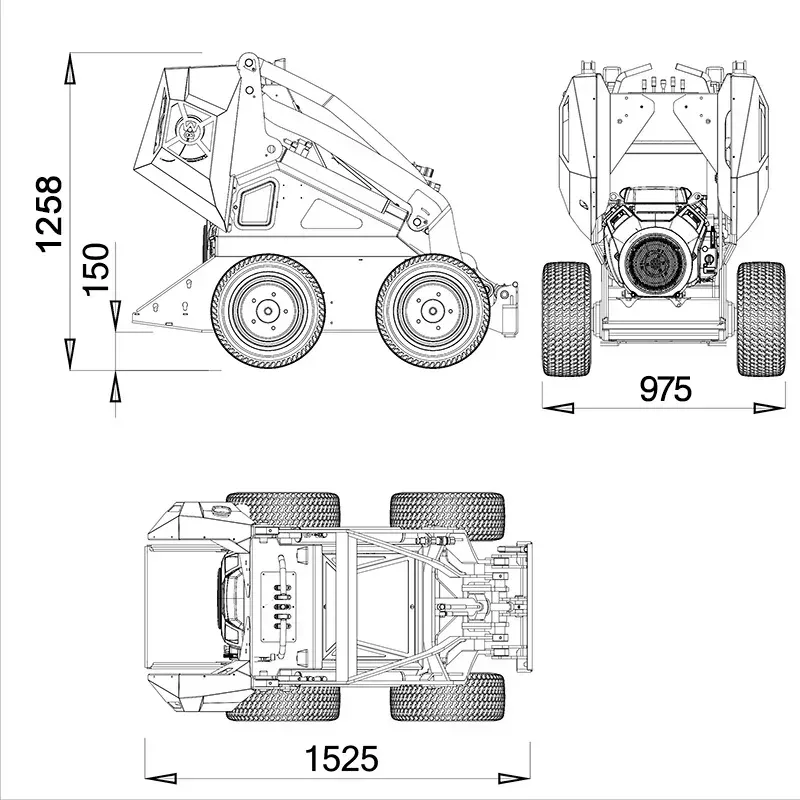

Dimensions ( L mm x W mm x H mm) | 1525 x 1050 x 1305 |
Weight Kg (empty) | 890 |
