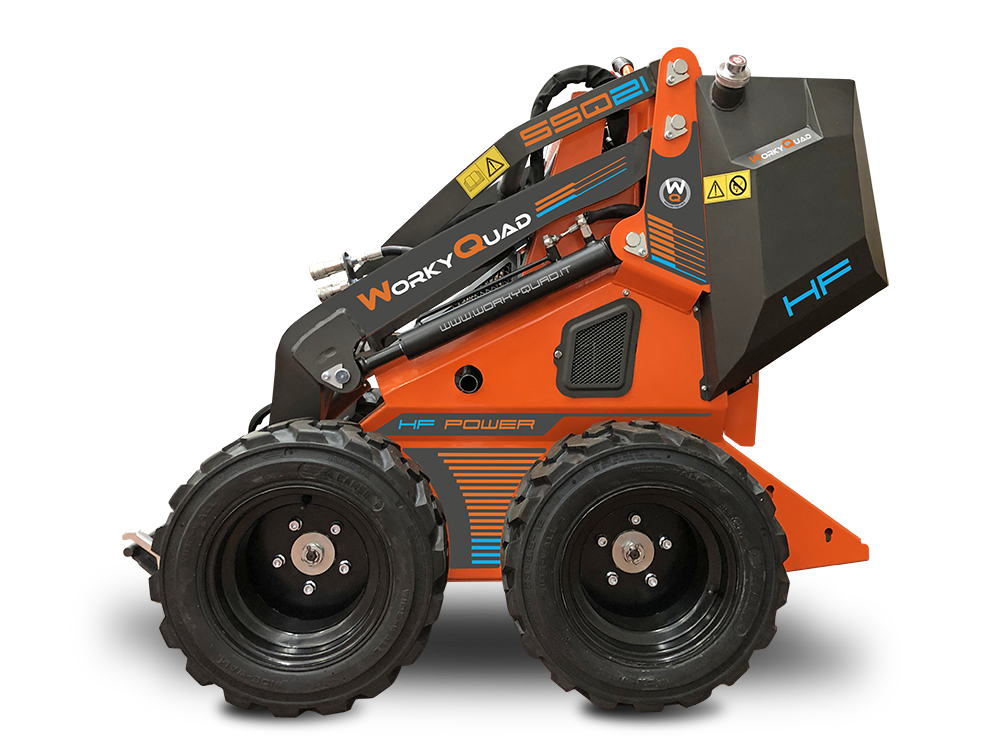

WorkyQuad SSQ21 HF

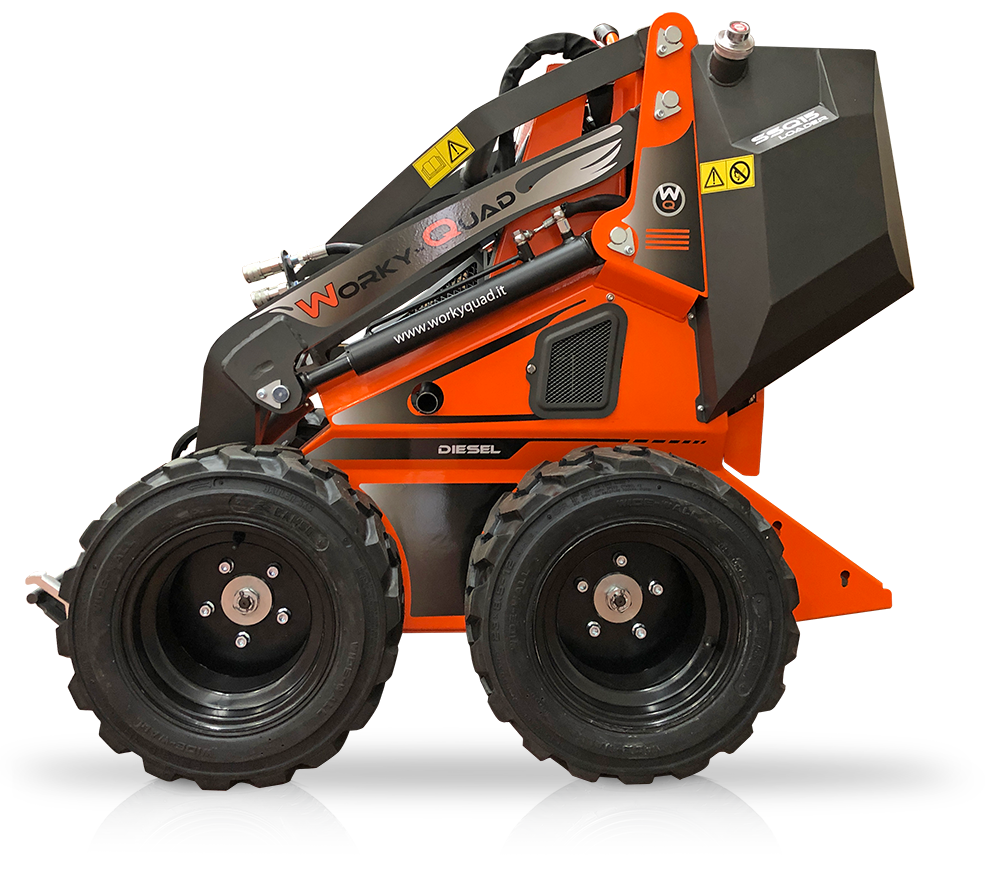

WorkyQuad SSQ21 HF Mini Skidsteer

WorkyQuad SSQ21 HF Mini Skidsteer

LIFTING

340kG

WITH COUNTERWEIGHTS

ENGINE POWER

20,3HP

KUBOTA D722 - E4B

HYDRAULIC FLOW RATE

40L/min

'HIGH FLOW' SYSTEM

The SSQ21 HF WorkyQuad with 'High Flow' hydraulics offers exceptional power and fluidity. Thanks to the new system that allows greater hydraulic flow, this mini skid steer can deliver extraordinary power to meet all your requirements.

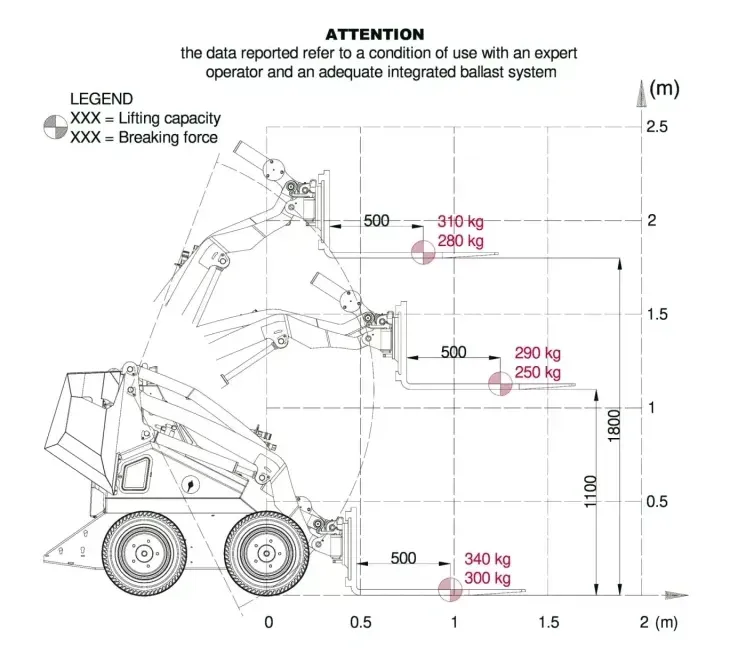

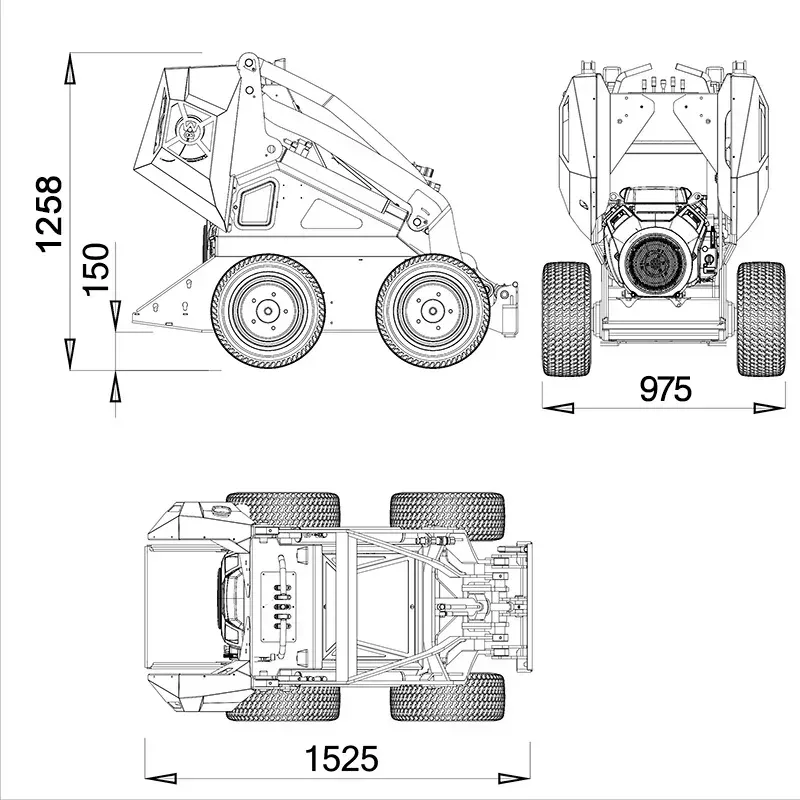

Dimensions

WorkyQuad SSQ21 HF Dimensions
WorkyQuad SSQ21 HF Dimensions

Specifications

WORKYQUAD SSQ21 HF SPECIFICATIONS
Engine KUBOTA D722 - E4B
Power HP/Kw 20,3/14,9
RPM 3600
Ignition Electric
Cooling system Air
Fuel Diesel
Drive System Hydraulic with 4WD
Hydraulic flow rate l/min 40
Speed 0-6 (proportional)
"Skid" Tyres 23x8.50-12
Lifting capacity Kg 340 (con zavorre)
Traction capacity Kg 420 (with counterweights)
Tear-off force Kg 300
Dimensions ( L mm x W mm x H mm) 1525 x 975 x 1258
Weight Kg (empty) 684

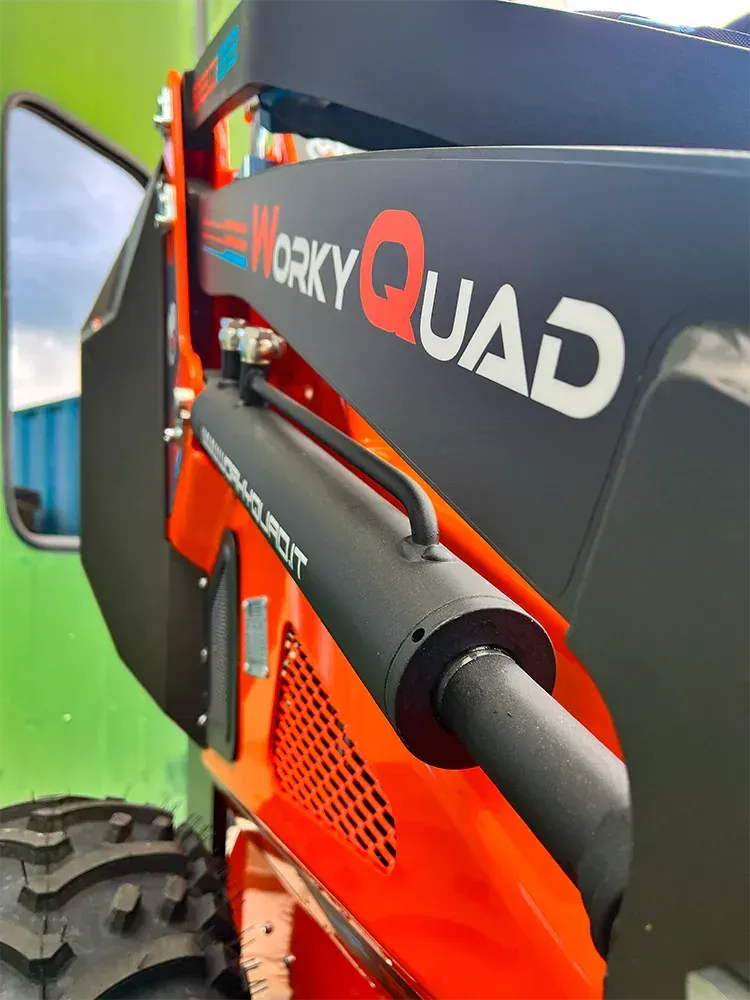

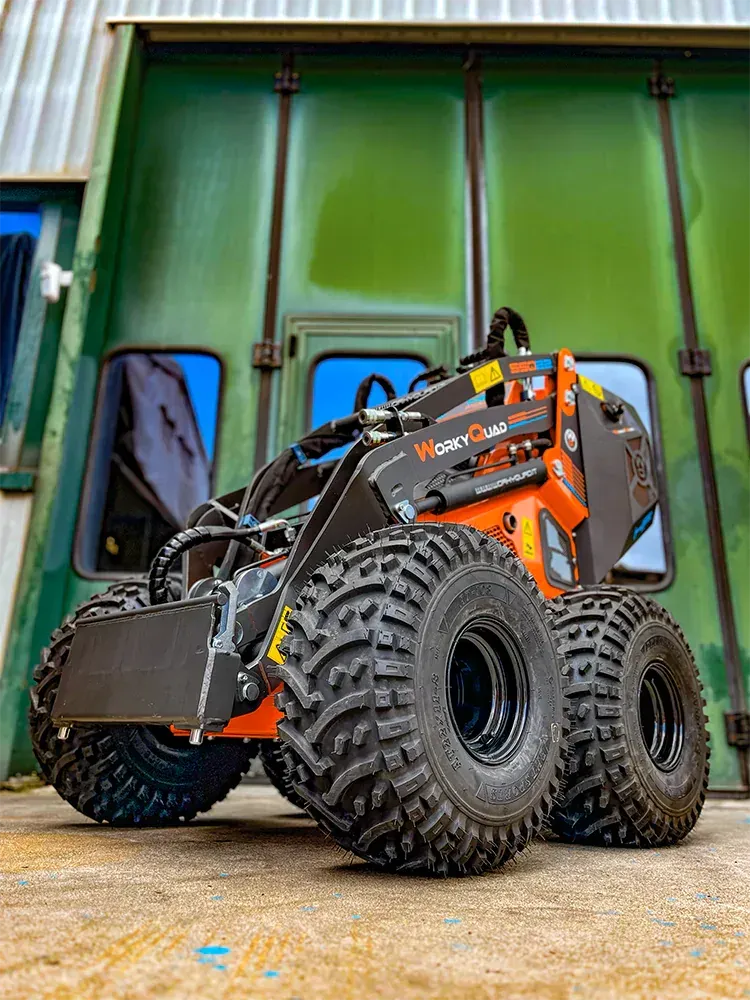

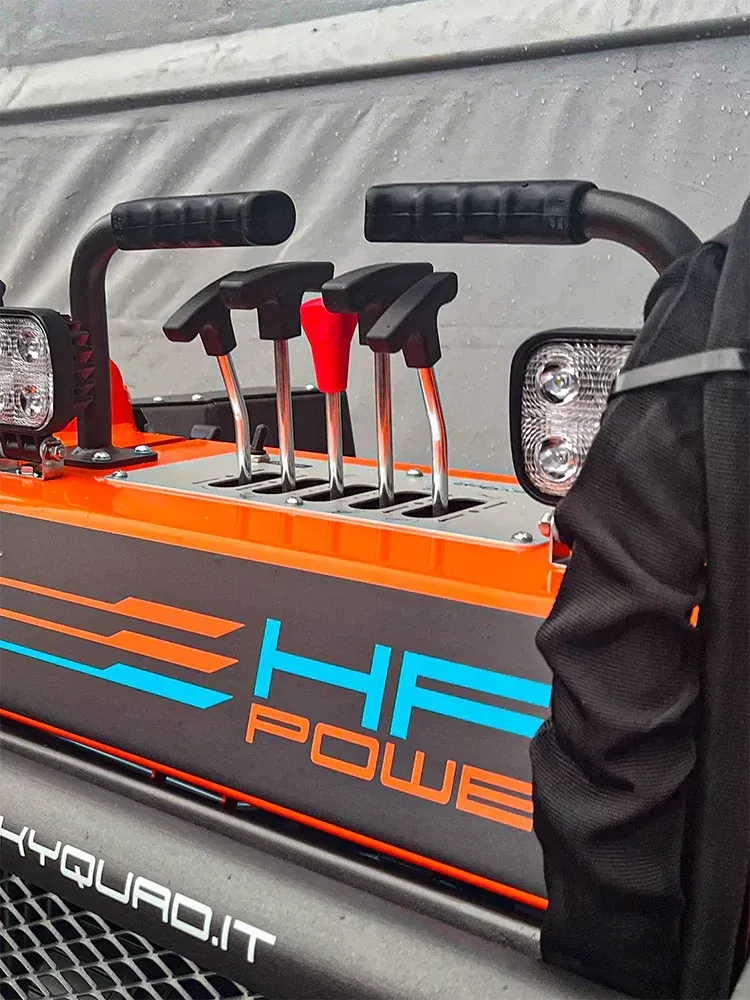

WorkyQuad SSQ21 HF FEATURES

WorkyQuad SSQ21HF Features
WorkyQuad SSQ21HF Features
WorkyQuad SSQ21HF Features

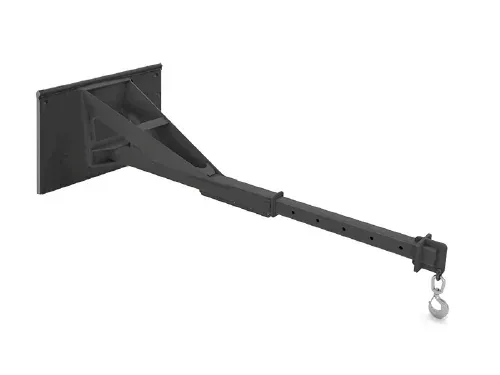

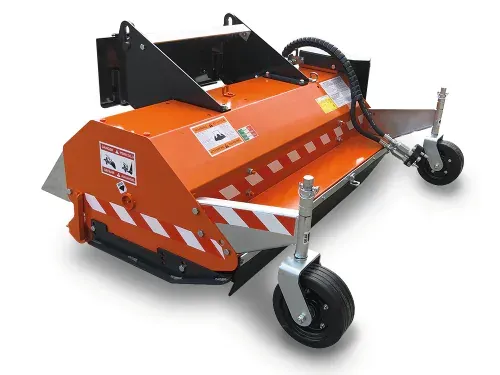

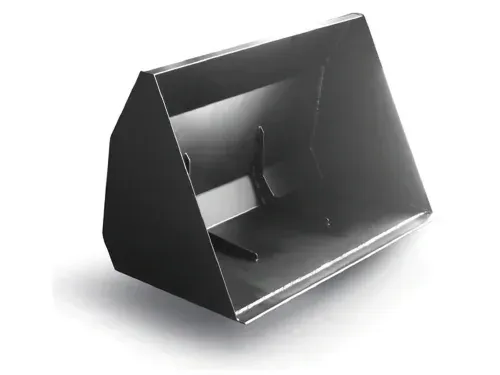

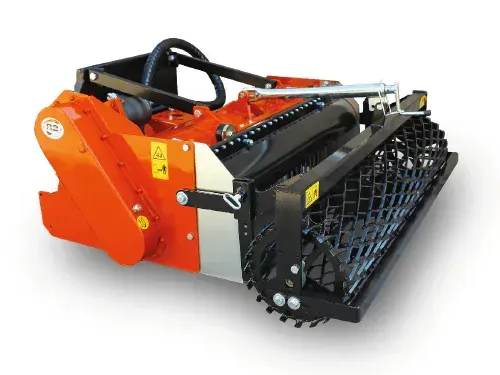

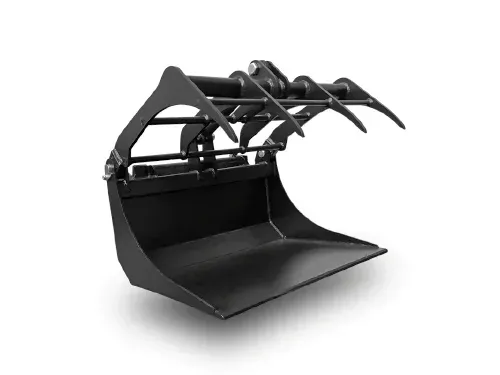

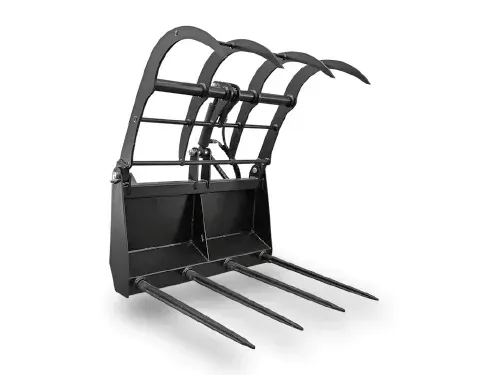

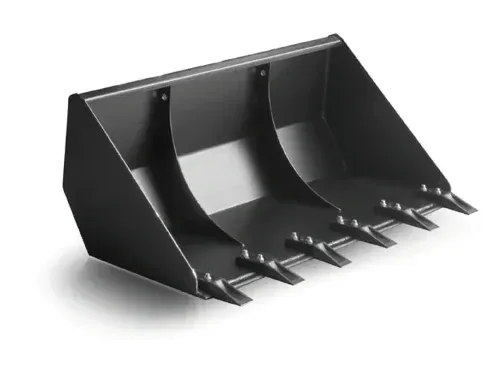

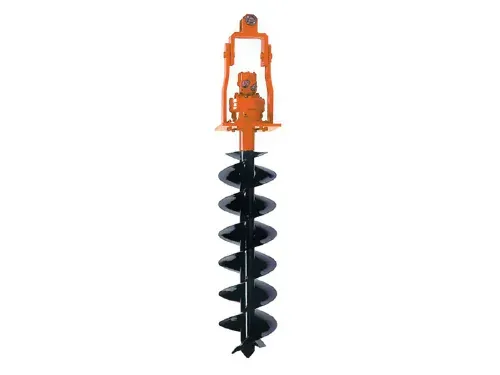

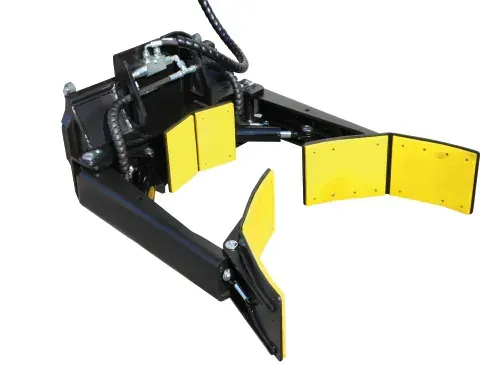

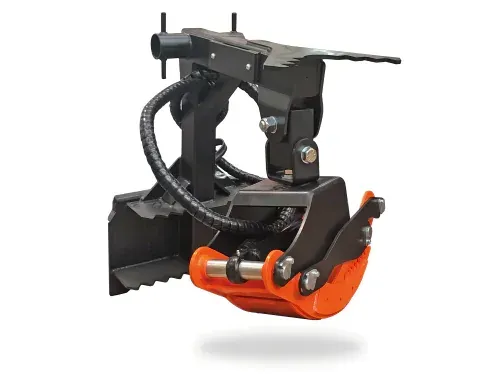

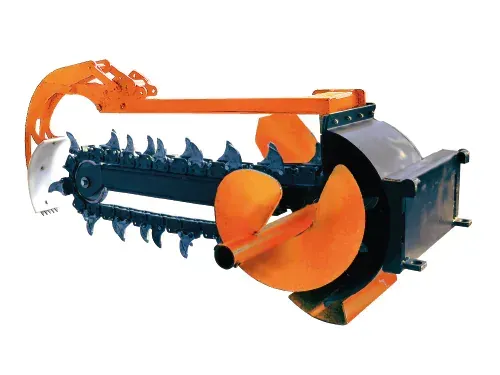

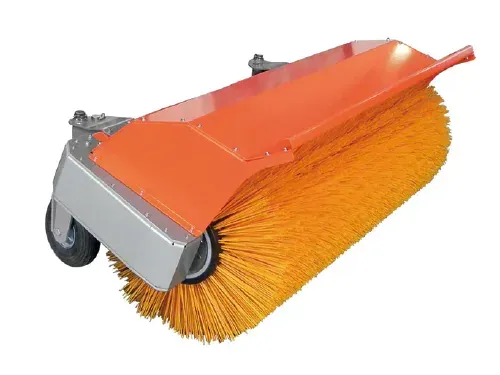

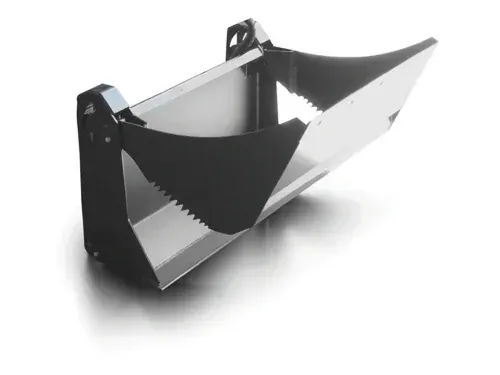

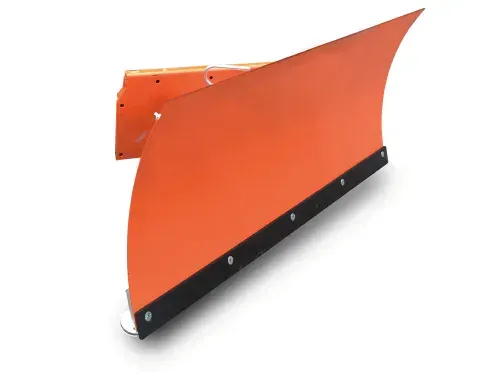

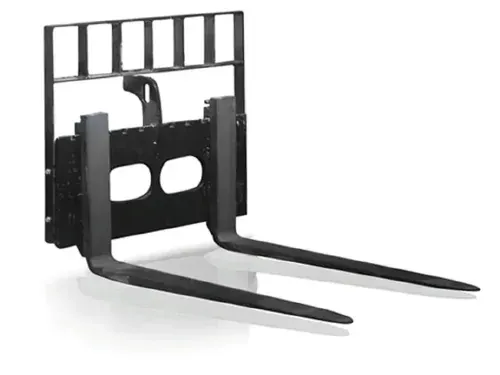

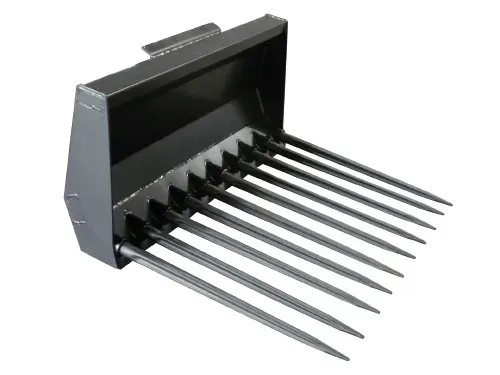

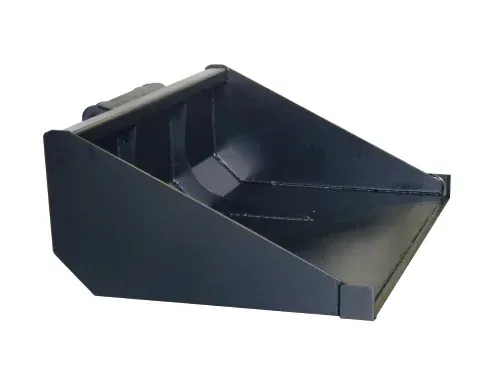

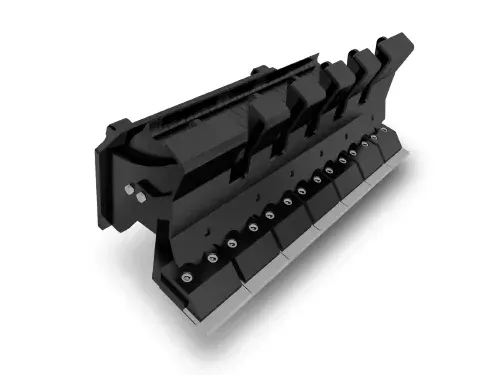

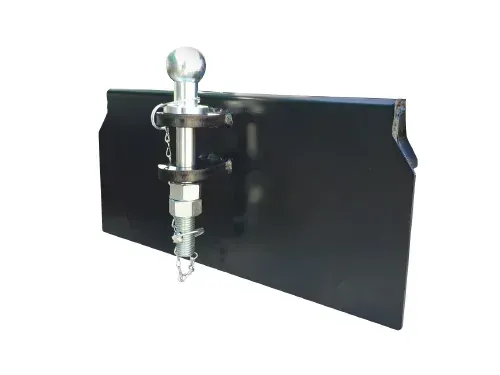

Available Attachments

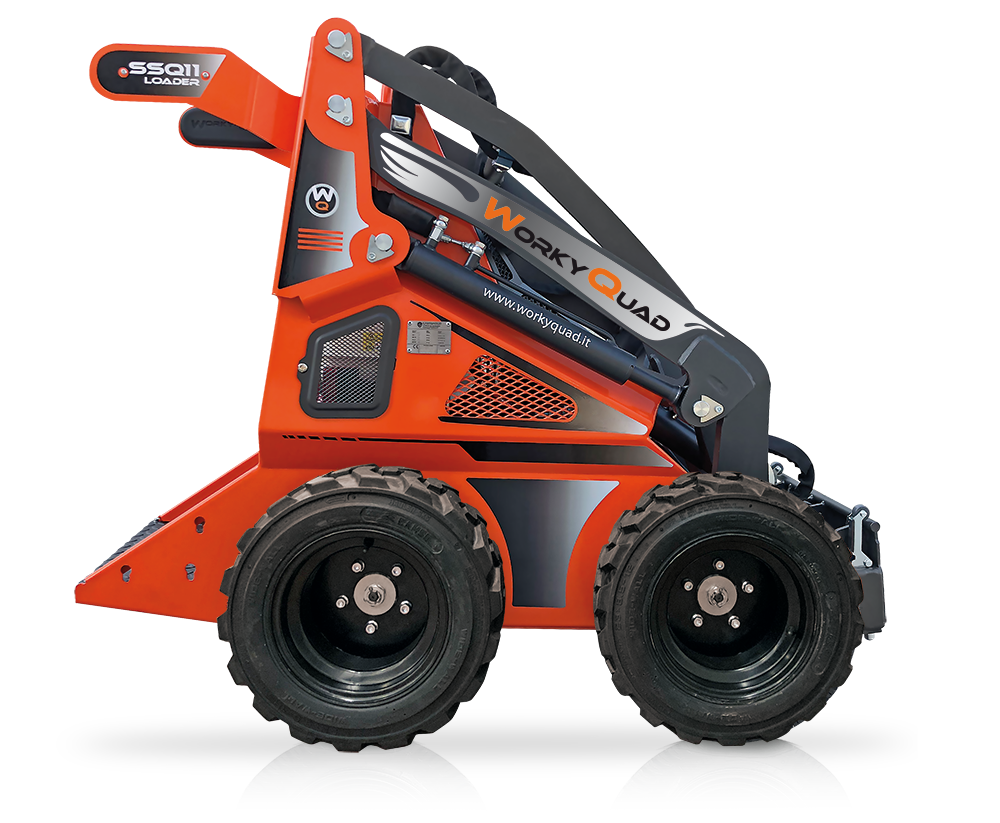

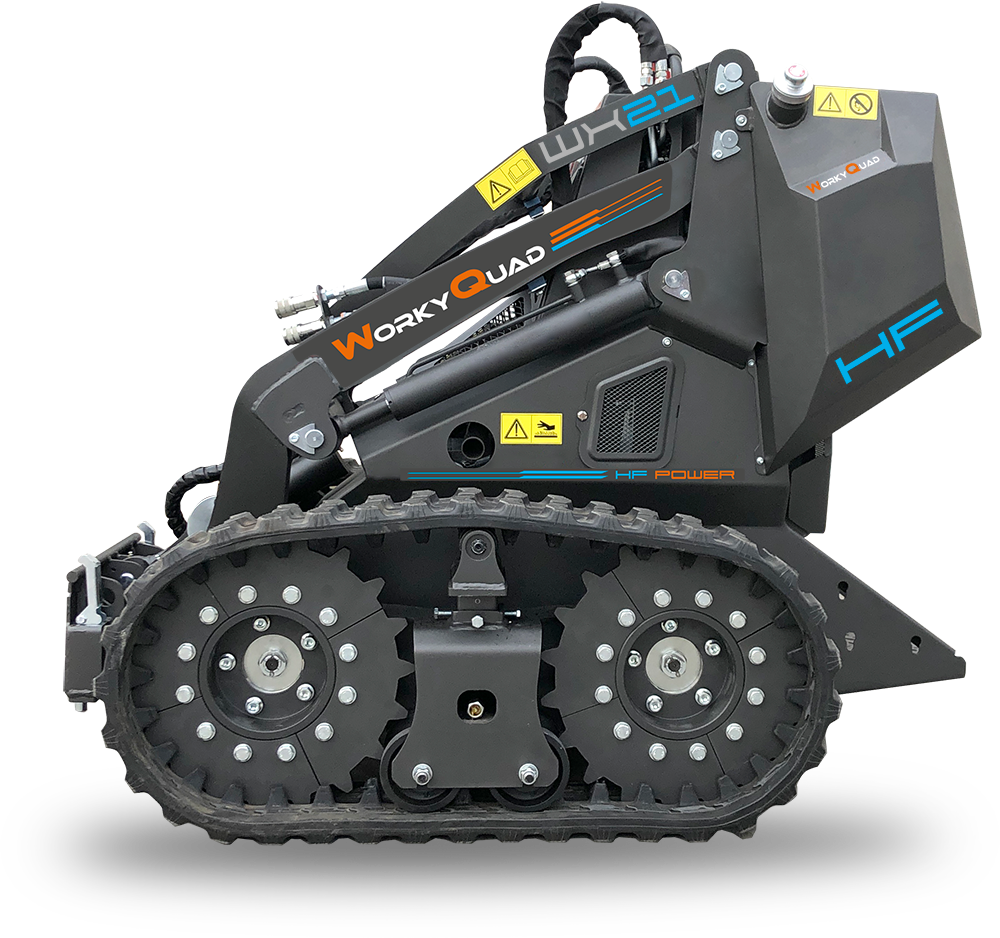

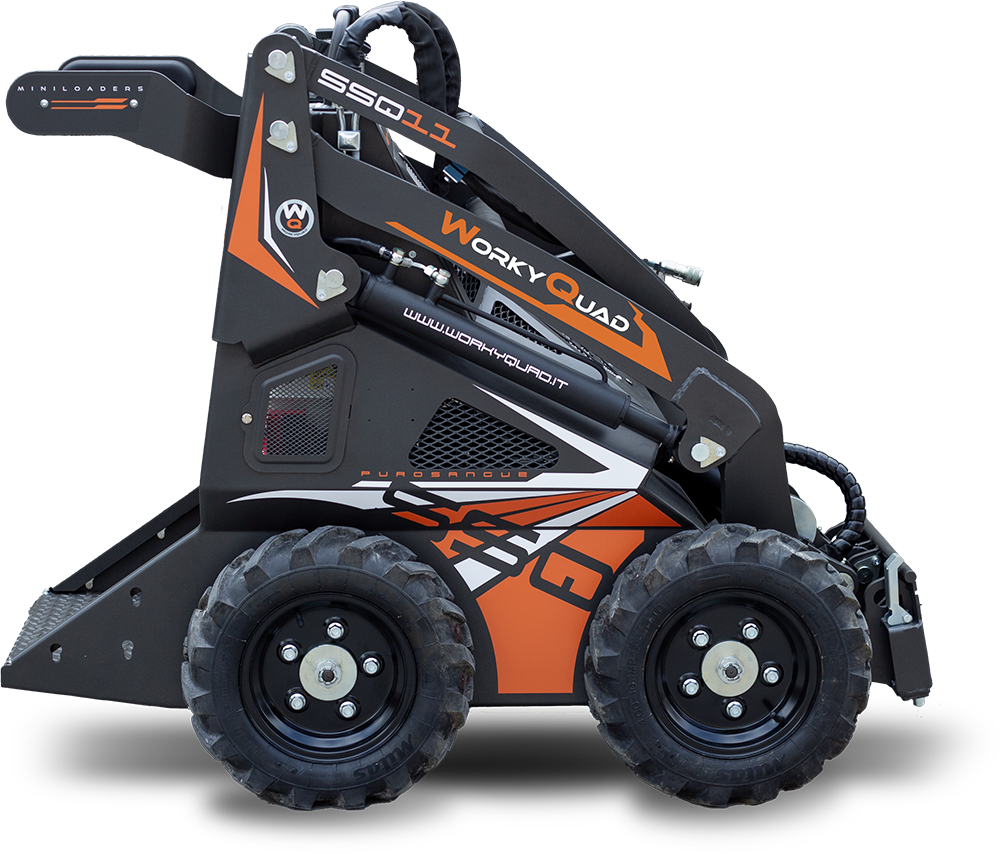

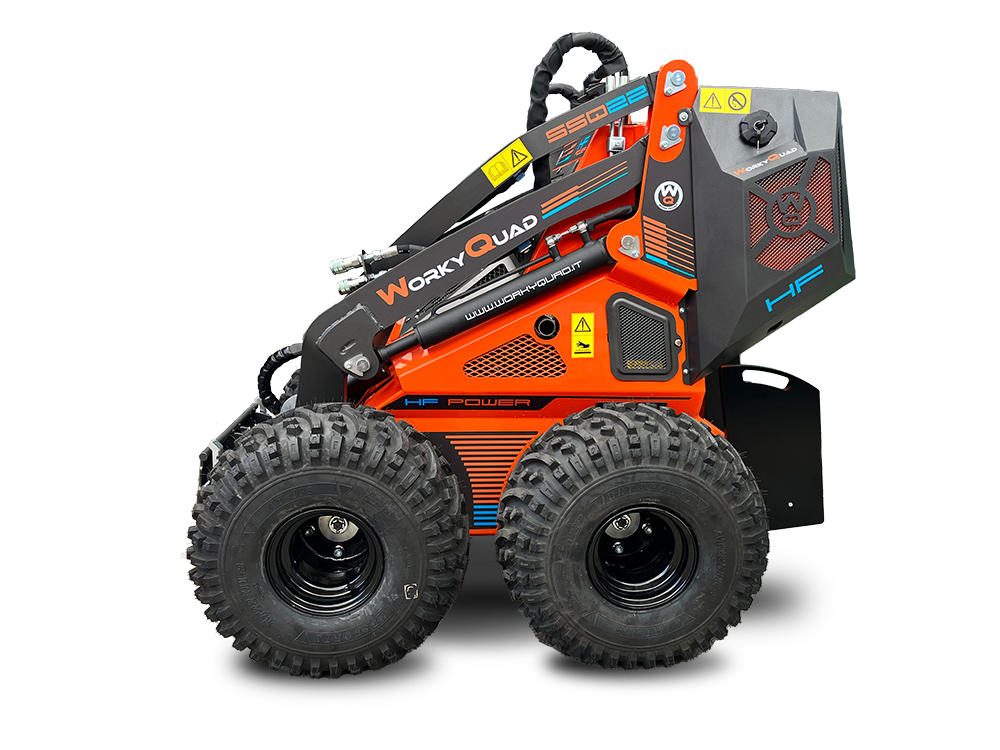

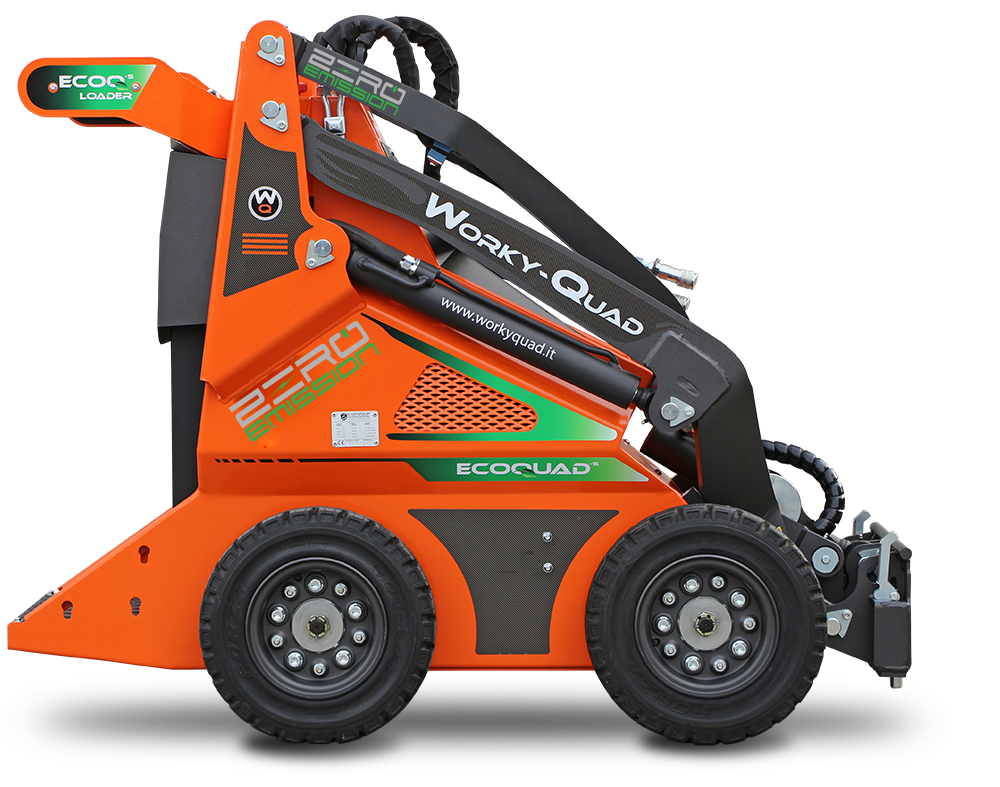

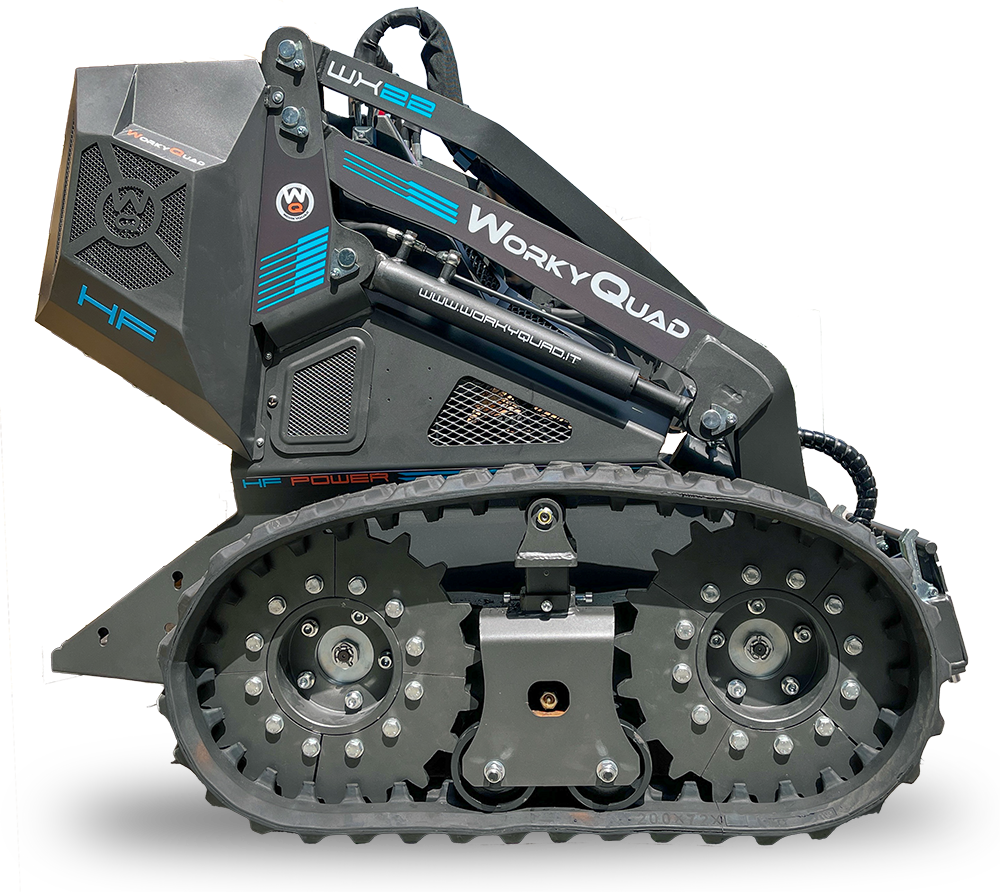

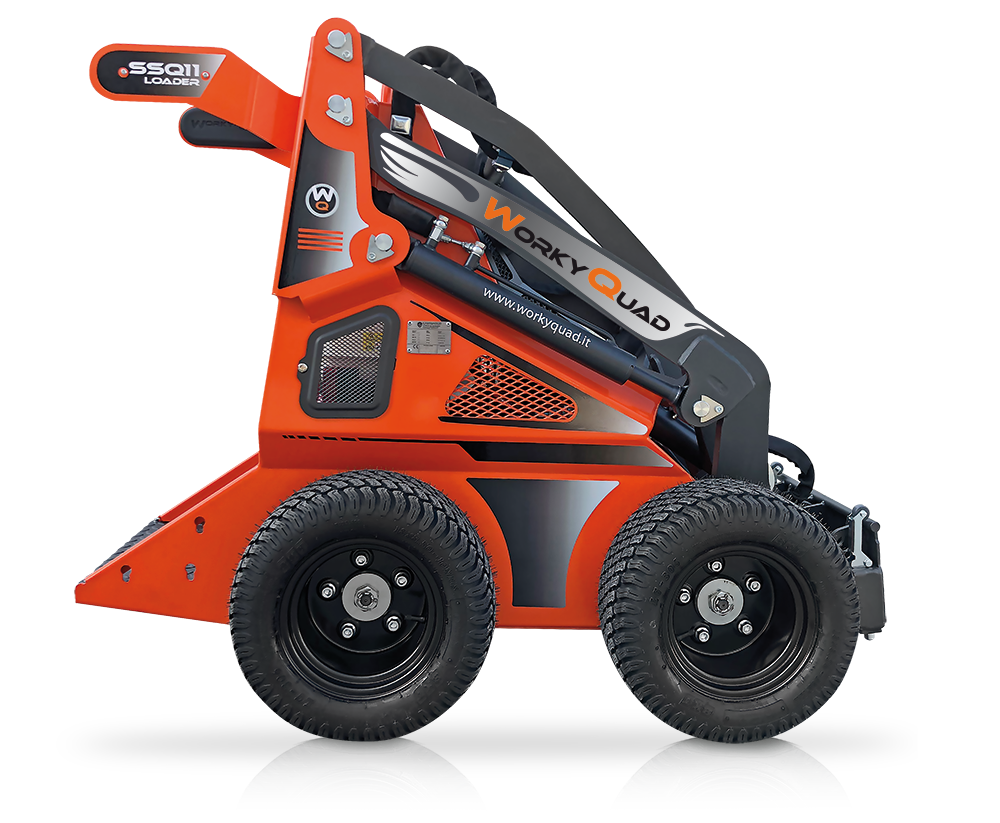

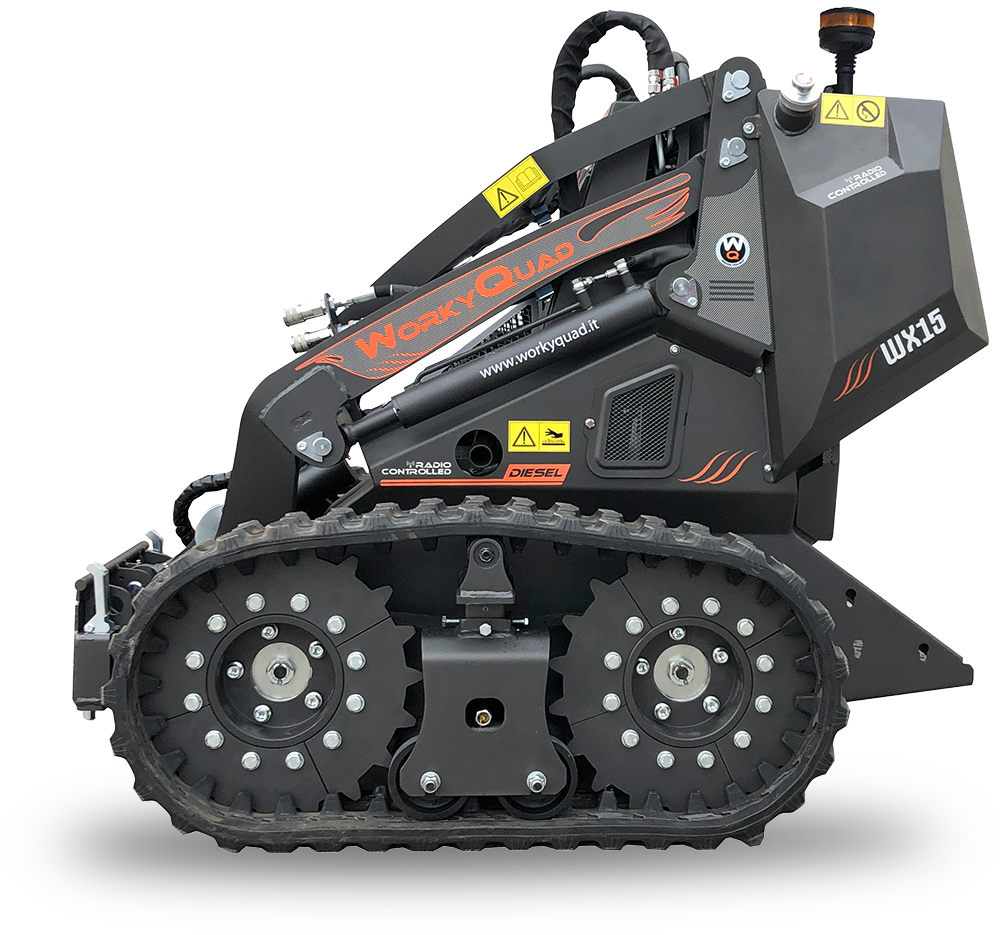

Related Machines
