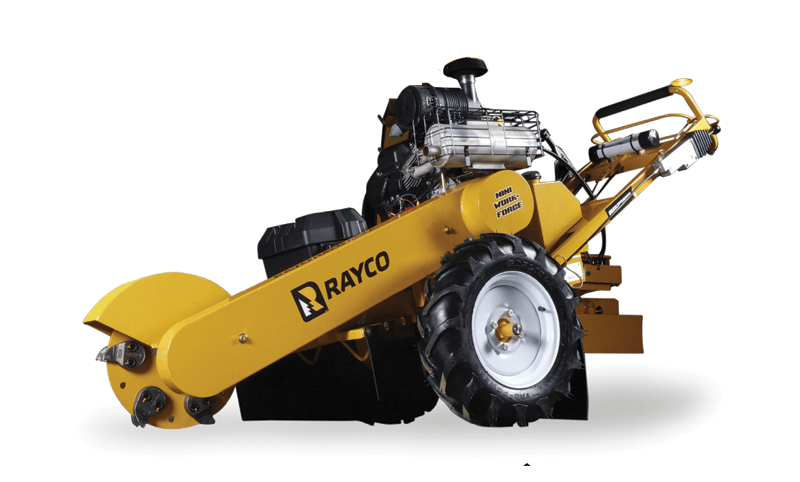

Rayco RG25HD - Mini Workforce Stump grinder

Rayco RG25HD Stump grinder - sales hire parts support from Green Plant

RG25HD is the largest model in the Mini Work-Force line up. This unit is powered by a 23-hp (17.15-kW) Kohler Command engine featuring electric start and a Donaldson, dual element air cleaner.


The RG25HD is self-propelled, making it the best choice for traversing up and down hills, trailer ramps, mounded landscaping, etc. Large tires roll over chip piles and obstacles easier than competitors’ low-profile tires. The narrow profile of the RG25HD allows it to fit through 30” (76.2 cm) gates. Convenient handlebar adjustment allows operator to select height depending on the conditions. An electromagnetic clutch engages the cutter wheel at the flip of a switch. As with all Mini Work-Force models, the RG25HD has a powder-coat finish.


  • 25hp Kohler Gasoline Engine With Electric Start
  • Electromagnetic Clutch
  • Operator Presence Bar For Safe Operation
  • Dual Element Air Cleaner
  • Self-Propelled

FEATURES

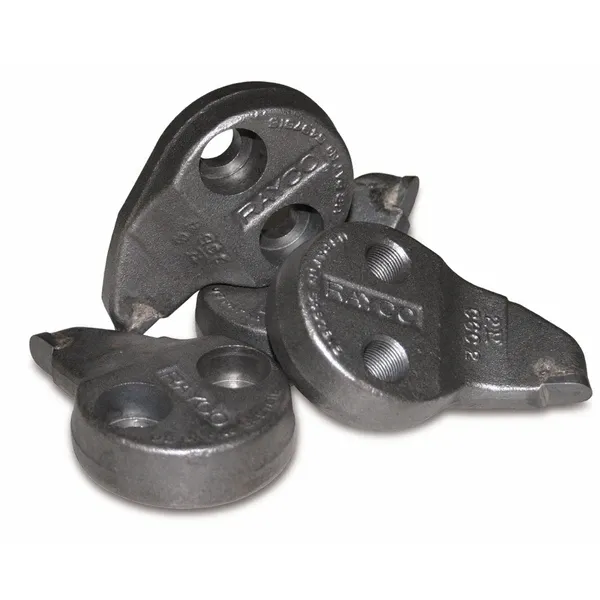

SuperTeeth - Available in our Parts Shop

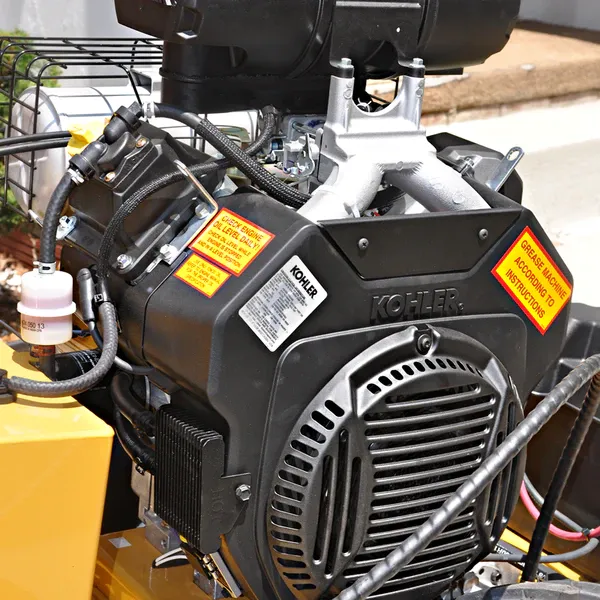

RG25HD - 23 hp Kohler Engine with electric start

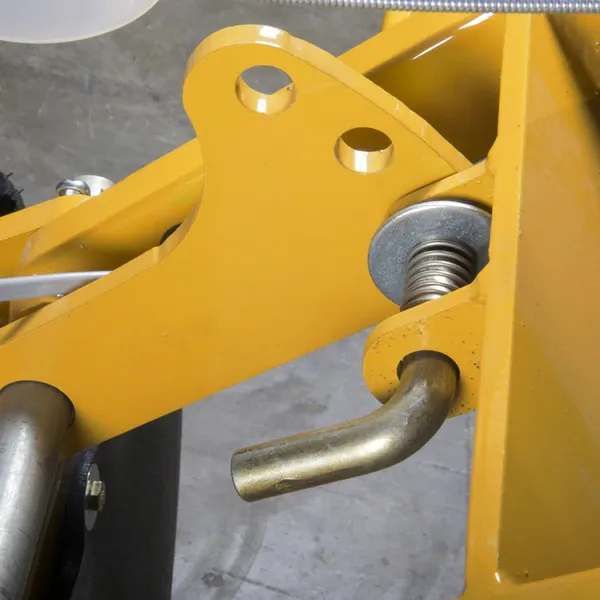

Adjustable Handlebar Positions

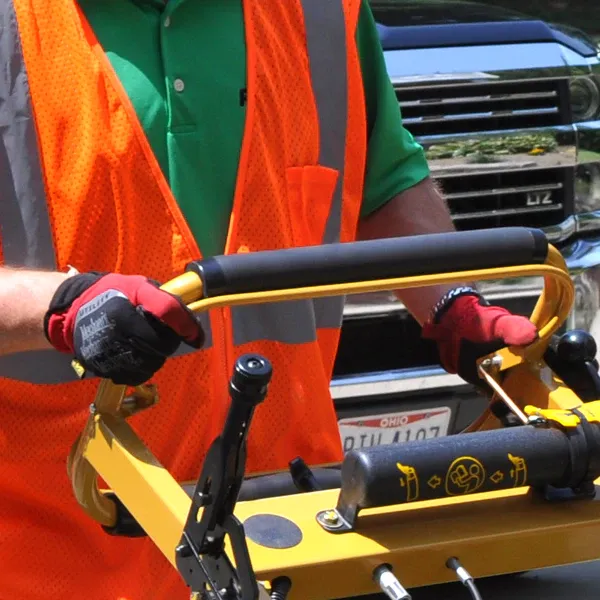

RG25HD - Operator Presence on Control Bar

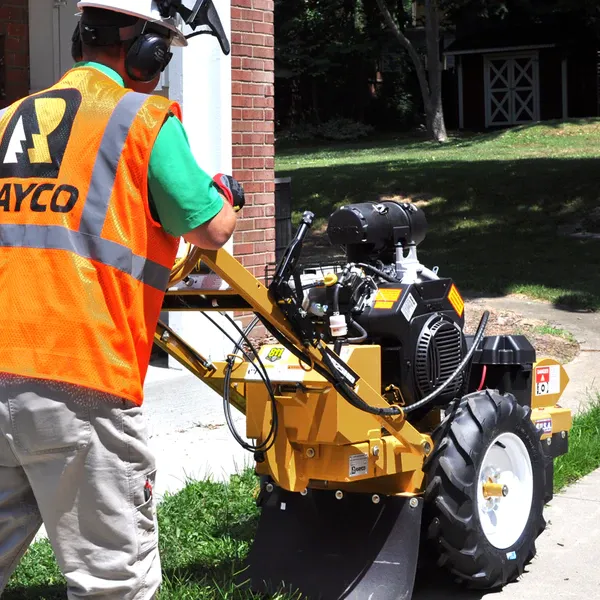

RG25HD - Self Propelled

SPECIFICATIONS

RG25HD Specifications
WEIGHT 583 lb, 264 kg
LENGTH 74” - 98”, 187.8 cm - 248.8 cm
HEIGHT 34” - 58”, 81 cm - 150 cm
WIDTH 29”, 74 cm
ENGINE Kohler
HORSEPOWER 23 hp, 17.2 kW
FUEL TYPE Gasoline, Petrol
GROUND DRIVE Self-Propelled, Hydrostatic Variable Speed
FUEL TANK 3 gal, 11.3 L
SUPER TOOTH 12
CLUTCH Electromagnetic
CUTTER WHEEL 14” x 0.375”, 35.5 cm x .1 cm
CUTTING DEPTH 22”, 55.8 cm
CUTTING HEIGHT 24”, 60.9 cm

VIDEO

BROCHURE

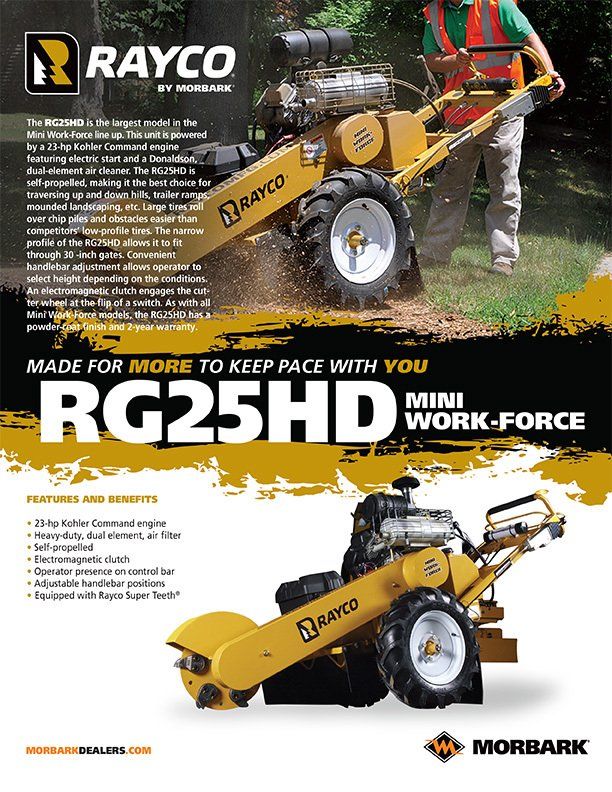

RG25HD Brochure
